How Much Ceiling Height Do You Need for a Car Lift? (Real Numbers)

Ceiling height is the number one thing that kills car lift dreams. You find the perfect lift, get excited, then measure your garage and realize the math doesn't work. 😬

Or worse, you buy the lift first, and THEN find out your garage door track sits at 9 feet. Now you're paying return shipping on 1,500 lbs of steel.

This guide gives you the real numbers for every lift type, how to measure your garage correctly, and what your options are if your ceiling is too low. Let's figure out what actually fits. 👇

⚡ The Quick Answer

2 post lifts: 11 to 12 feet minimum for most full rise models

4 post lifts (service use): 11 to 12 feet for full rise (partial rise service works in 9 to 10 feet)

4 post lifts (storage/stacking two cars): 11 to 14 feet for most vehicle combinations (two low sports cars can fit under less)

Mid rise scissor lifts: 8 to 9 feet works fine

Low rise and portable lifts: Any standard garage ceiling works

Standard residential garages have 8 to 9 foot ceilings. That's the problem. Most full size lifts need 11+ feet. But before you give up, keep reading, because there are more options than you think. 🔧

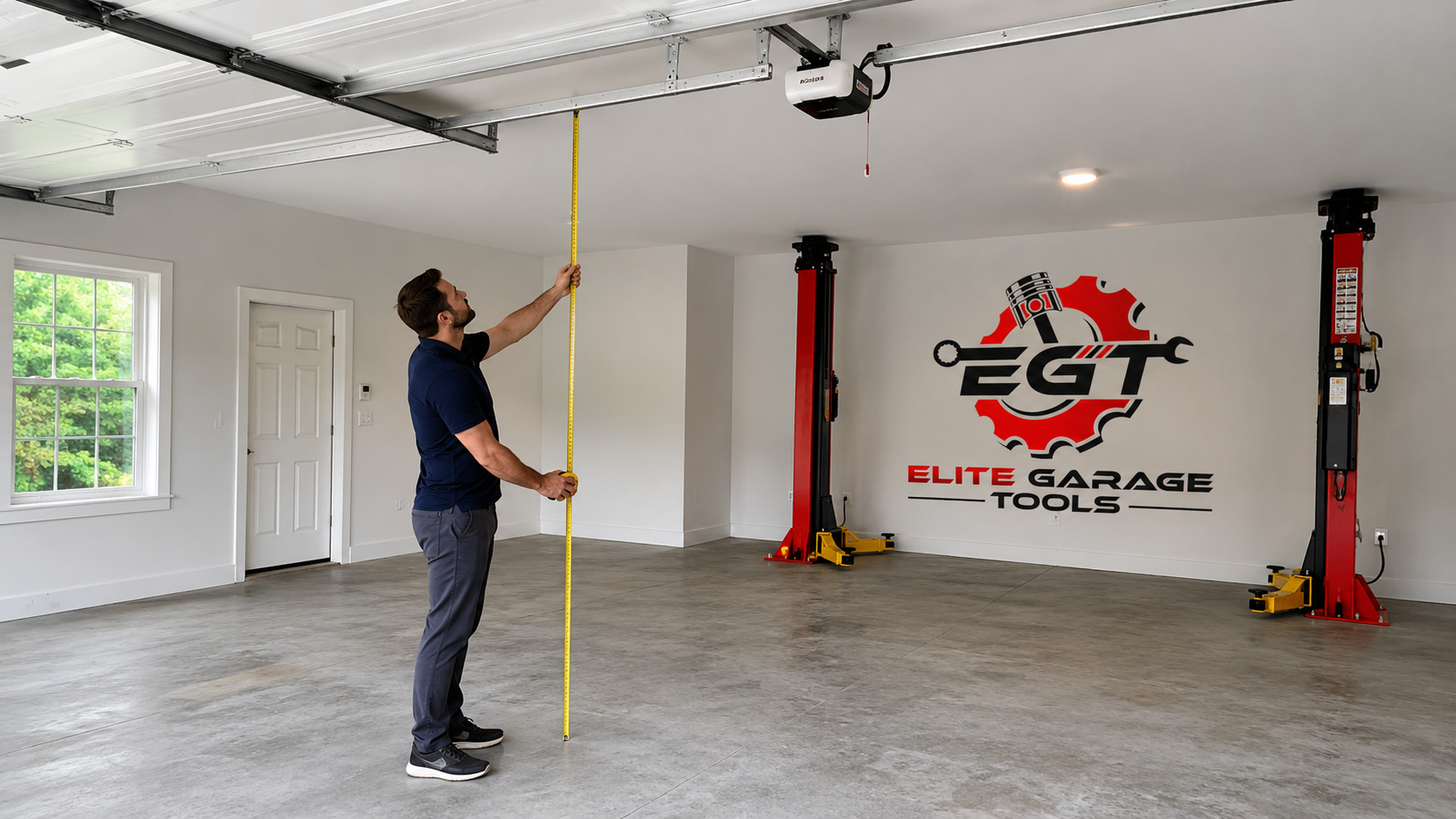

📏 How to Measure Your Garage Correctly

Here's where most people mess up. Your ceiling height is NOT the number that matters.

What matters is the height to your lowest obstruction.

Grab a tape measure and check the height to each of these:

Garage door tracks and rails (usually the lowest point)
Garage door opener motor and rail
Light fixtures
Ceiling fans
HVAC ducts or pipes
Support beams or joists
Sprinkler heads

Your effective ceiling height is the distance from the floor to whichever of these hangs lowest in the area where the lift will sit. A garage with a 10 foot ceiling but a door track at 8 feet 6 inches is an 8 foot 6 inch garage for lift purposes.

Pro tip: The garage door itself matters too. When your door opens, where does it sit? Many doors slide back along the ceiling right where a lifted vehicle would be. A high lift door conversion (roughly $750 to $1,200 professionally installed, or $350 to $500 in parts if you DIY) moves the door track up near the ceiling and solves this for many garages.

🧮 The Ceiling Height Formula

Here's the actual math for figuring out if a lift fits:

For 2 post lifts:

Column height is the first check. Most full rise 2 post lifts have columns between 111 and 145 inches tall (9.25 to 12 feet). The overhead bar on clear floor models sits at the top. Your ceiling must clear the column height, period.

For lifting height, use this formula:

Vehicle height + maximum lift rise + 4 to 6 inches of safety buffer = ceiling height needed to lift that vehicle to full height

Example: A Honda Civic is about 56 inches tall. A typical 2 post lift raises the pads to somewhere between 69 and 78 inches at maximum. Using 72 inches: 56 + 72 + 6 = 134 inches, or 11 feet 2 inches to lift that Civic to maximum height.

Here's the good news though. You don't always need maximum rise. Even lifted 5 feet, you can work under a car on a rolling stool comfortably. A 10 foot ceiling still lets you use a 2 post lift, you just won't get full standing height under every vehicle.

🏗️ Ceiling Requirements by Lift Type

2 Post Lifts: Clear Floor vs Base Plate

This distinction matters a lot for ceiling height.

Clear floor (overhead) 2 post lifts:

These have a crossbar across the TOP connecting the columns. The bar carries hydraulic hoses and equalization cables, plus a shutoff switch that stops the lift if a vehicle roof touches it.

Typical column height: 12 feet (some models 11 feet 6 inches)
Minimum practical ceiling: 12 feet
Best for: Garages with high ceilings, shops, anyone who wants a clean floor

Base plate (floor plate) 2 post lifts:

These run the cables and hoses across the floor under a low steel cover between the columns. No overhead bar means shorter columns.

Typical column height: 9 to 10 feet
Minimum practical ceiling: 10 feet (some models fit in as little as 9 feet 6 inches)
Trade off: You drive over the floor plate, and it slightly limits under car access in the center
Best for: Standard residential garages with 9 foot 6 inch to 11 foot ceilings

One thing to understand: a base plate lift fitting under your ceiling doesn't mean full rise on every vehicle. The columns fit at 9 feet 6 inches, but lifting a 60 inch tall SUV to maximum height still needs close to 12 feet. With a 10 foot ceiling, you'll raise vehicles 4 to 5 feet, which is comfortable rolling stool height rather than full standing height.

If your ceiling is between 9 feet 6 inches and 11 feet, a base plate 2 post lift is usually your best path to a real 2 post lift. 💪

4 Post Lifts

For service work: You need enough height to raise the vehicle to a comfortable working height. Most 4 post lifts have columns around 7 to 8 feet tall, so the lift itself fits almost anywhere. The question is how high you can actually raise the vehicle before it hits the ceiling.

With a 9 foot ceiling and a 60 inch tall SUV, you can raise the runways about 40 to 45 inches. That's enough for oil changes and inspections from a seated position, but not standing height.

For storage (stacking two vehicles): This is where the math gets tight. You need:

Bottom vehicle height + runway thickness (about 4 to 8 inches) + top vehicle height + clearance buffer

Example: Two 57 inch sedans need 57 + 8 + 57 + 6 = 128 inches, or 10 feet 8 inches minimum. Two SUVs at 66 inches each need over 12 feet. Two low sports cars around 50 inches each can squeeze into about 9 feet.

Realistic storage guidance: 12 foot ceilings work for stacking two sedans or a sedan under a low car. 14 feet gives you comfortable clearance for most vehicle combinations.

Mid Rise Scissor Lifts

Maximum lift height is typically 36 to 48 inches, with some models reaching 55 inches. Add a 60 inch vehicle and you're at 8 to 9.5 feet total at full rise. These fit standard residential garages, though in an 8 foot garage you'll stop a few lock positions short of maximum with taller vehicles.

What you get: Comfortable seated or rolling stool access for brakes, tires, suspension, and exhaust work.

What you give up: Standing under the vehicle, and the center of the vehicle is partially blocked by the scissor mechanism on some models.

Low Rise and Portable Lifts

These raise vehicles 20 to 30 inches. Any garage that fits a car fits one of these. They're the answer for garages with 7 to 8 foot ceilings where nothing else works.

🚪 The Garage Door Problem (And How to Fix It)

Even with a tall ceiling, your garage door can ruin everything. Standard door tracks curve back horizontally at about 7 to 8 feet, running right through the space where your lifted vehicle needs to be.

Fix 1: High lift door conversion ($750 to $1,200 professionally installed)

A conversion replaces your track hardware, springs, cables, and drums so the door rises nearly vertically and runs along the ceiling much higher. This is the most common fix and works with most sectional doors (one piece tilt up doors can't be converted). DIYers with torsion spring experience can do it for $350 to $500 in parts, but spring winding is genuinely dangerous work, so most people hire it out. You'll likely also need to replace your ceiling mounted opener with a wall mounted jackshaft opener ($400 to $700 installed), bringing a typical full project to $850 to $1,800.

Fix 2: Position the lift outside the door path

In deep garages, you can sometimes place the lift far enough forward or back that the open door doesn't overlap the lifted vehicle. Measure carefully before assuming this works.

Fix 3: Roll up doors

Commercial style roll up doors coil at the header and eliminate ceiling tracks entirely. More expensive ($1,500 to $3,500) but frees up your entire ceiling.

📊 Quick Reference: What Fits Your Ceiling?

7 to 8 foot ceiling: Portable and low rise lifts only. Portable frame lifts and low rise scissors.

8 to 9 foot ceiling: Mid rise scissor lifts work great. 4 post lifts work for low height service work.

9 to 10 foot ceiling: Base plate 2 post lifts become possible. 4 post lifts give decent working height. Mid rise scissors have full function.

10 to 11 foot ceiling: Base plate 2 post lifts work well with most vehicles. 4 post storage possible for two low cars.

11 to 12 foot ceiling: Clear floor 2 post lifts start fitting at the upper end of this range (most columns run 11 feet 6 inches to 12 feet, so check the spec sheet). Full rise on sedans. 4 post storage works for sedan combinations.

12+ foot ceiling: Everything fits. Full rise on trucks and SUVs, comfortable 4 post stacking, alignment lifts, you name it. 🏆

🏠 Can You Raise Your Garage Ceiling?

If you're close but not quite there, some homeowners modify the garage instead of compromising on the lift.

Remove drywall between joists: If your garage ceiling is drywalled below open trusses or joists, removing it can gain 6 to 12 inches in the bay area. Cost: minimal if DIY. Check with a contractor about fire code requirements, especially if there's living space above.

Attic truss modification: Structural work to reframe the ceiling area above the lift. Cost: $2,000 to $8,000 depending on scope. Requires an engineer and permits. Worth it for serious enthusiasts, overkill for occasional oil changes.

Raise the whole garage roof: $15,000 to $40,000. At that point, most people build a detached shop instead.

❌ Common Ceiling Height Mistakes

Measuring ceiling height instead of obstruction height. Your door track, opener, and lights define the real number.

Forgetting the vehicle on top for 4 post storage. The runways hold a car ABOVE the runway height. Do the full stacking math.

Assuming full rise is required. A 2 post lift raised 5 feet is still a massive upgrade over jack stands. Don't rule out a lift because you can't get 6 feet of rise.

Ignoring the overhead shutoff bar. Clear floor lifts need clearance above the vehicle roof at full rise. The shutoff bar protects the vehicle, but factor it into your math.

Not checking WHERE the obstruction is. A low beam at the back wall doesn't matter if your lift sits in the middle bay. Map your ceiling, don't just measure one spot.

🎯 The Bottom Line

Measure to your lowest obstruction, not your ceiling. Then match your real number to the right lift type:

12+ feet gets you any lift you want. 10 to 11 feet points you to a base plate 2 post. 9 feet means mid rise scissor or 4 post service work. Under 9 feet means portable and low rise options, which are still a huge upgrade over crawling on the floor.

And if you're 6 inches short of the lift you really want, price out a high lift door conversion before settling. It's often the cheapest square footage you'll ever buy. 💪
