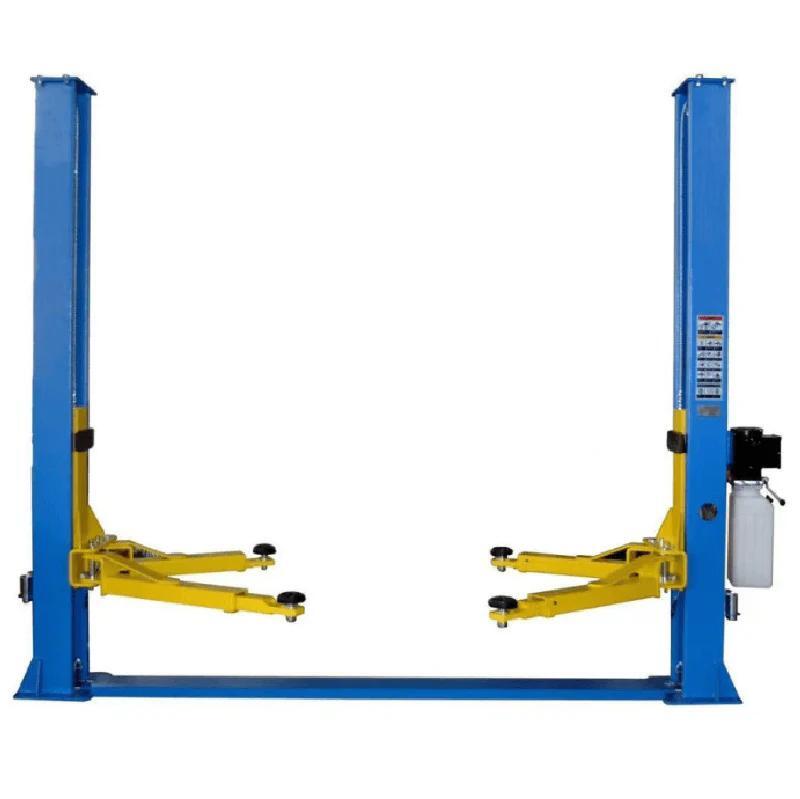

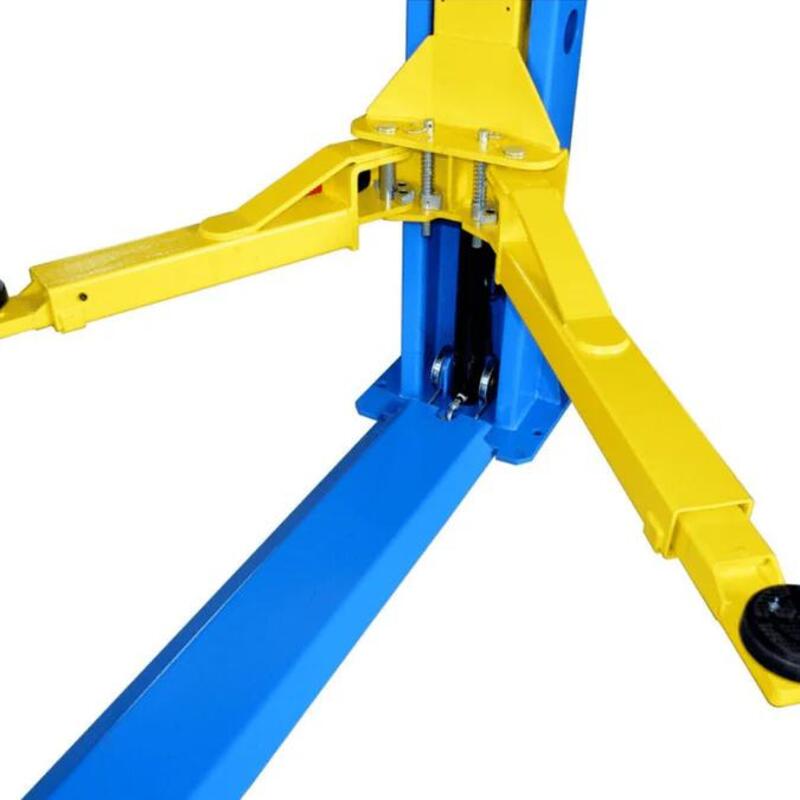

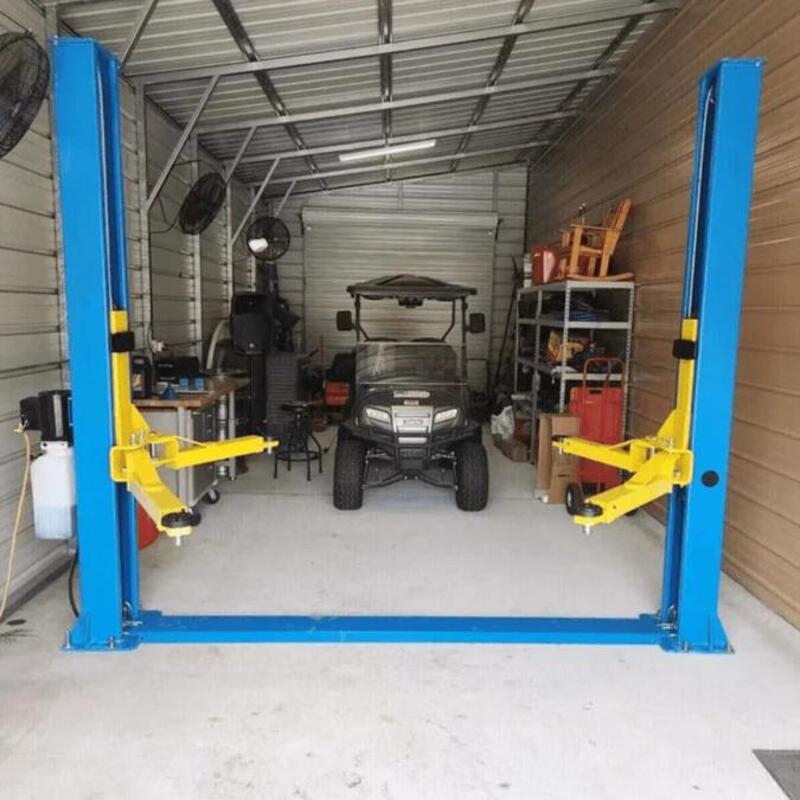

Katool KT-H105, 2 Post Car Lift 10,000lbs

Katool KT-H105, 2 Post Car Lift 10,000lbs

by Katool
$1,899.00
Shipping

Notify me when back in stock



  • 10000lbs lifting capacity
  • CE Approved and Certified, it has adopted 115% dynamic loading capacity and 150% static loading capacity tested.
  • Manual safety release from two sides.
  • Base plate design
  • Dual Hydraulic Chain-Drive Cylinders
  • Robber pad door opening protection.

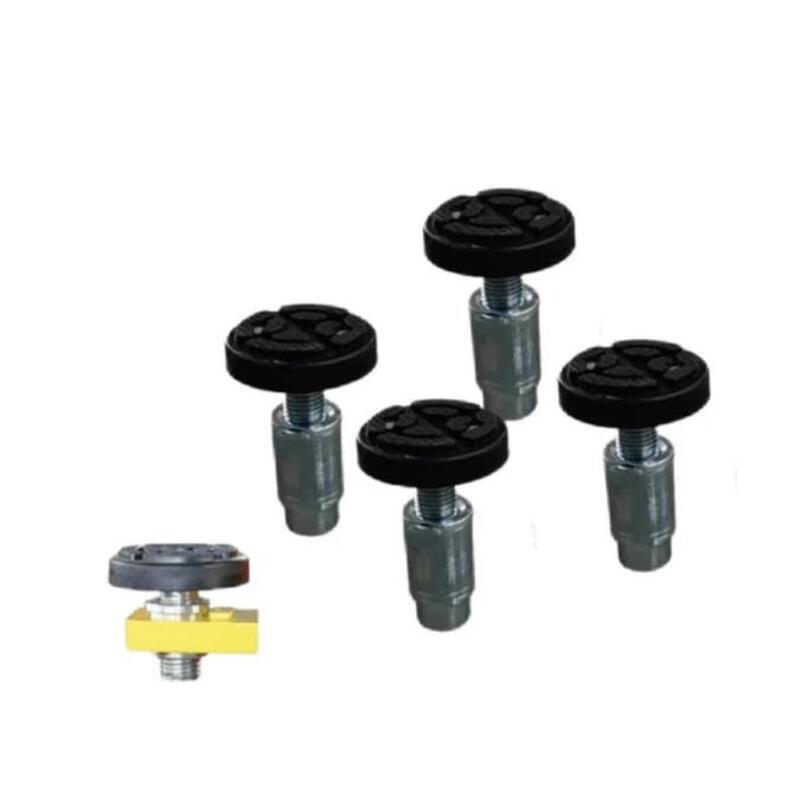

  • Screw-on pad and extension support adaptor sets  +100mm
  • Top-level hydraulic system with 220V/60HZ/1PH (110V/60HZ/1PH



*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

Lifting Capacity
10000lbs.(4500KG)
Max. Lifting Height
70.8"/1800mm
Min. Height
3.9"/100mm
Height Overall
110.9"/2818mm
Width Overall
140.4"/3565mm
Outside Column
124.8"/3170mm
Inside Column
110.2"/2800mm
Dirve-Thru Clearance
98.4"/2500mm
Front Arm Reach(Min)
29.5"/750mm(2 stages)
Front Arm Reach (Max)
46"/1170mm(2 stages)
Rear Arm Reach(Min)
29.5"/900mm(2 stages)
Rear Arm Reach(Max)
49.2"/1480mm(2 stages)
Motor
220VAC/60HZ/1PH/2.2KW
Net Weight
570KG



Pick-up location

    • Bolingbrook, IL - 360 Veterans Pkwy, Unit 110, Bolingbrook, IL 60440
    • Brookshire, TX - 2465 FM 359 South Rd, Building B Suite E, Brookshire, TX 77423
    • Jersey City, NJ - 99 Caven Point Road Unit A, Jersey City, NJ 07305
    • Pooler, GA - 88 Clyde Alexander Way, Pooler, GA 31322
    • Walnut, CA - 19465 E Walnut Dr N, Walnut, CA 91789

Please feel free to Contact us before purchasing. Please let us know which warehouse would be the preferred pickup location. We can help to check the availability.


12 Months All Parts Warranty!

Description



  • 10000lbs lifting capacity
  • CE Approved and Certified, it has adopted 115% dynamic loading capacity and 150% static loading capacity tested.
  • Manual safety release from two sides.
  • Base plate design
  • Dual Hydraulic Chain-Drive Cylinders
  • Robber pad door opening protection.
  • Screw-on pad and extension support adaptor sets  +100mm
  • Top-level hydraulic system with 220V/60HZ/1PH (110V/60HZ/1PH



*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

Lifting Capacity 10000lbs.(4500KG)
Max. Lifting Height 70.8"/1800mm
Min. Height 3.9"/100mm
Height Overall 110.9"/2818mm
Width Overall 140.4"/3565mm
Outside Column 124.8"/3170mm
Inside Column 110.2"/2800mm
Dirve-Thru Clearance 98.4"/2500mm
Front Arm Reach(Min) 29.5"/750mm(2 stages)
Front Arm Reach (Max) 46"/1170mm(2 stages)
Rear Arm Reach(Min) 29.5"/900mm(2 stages)
Rear Arm Reach(Max) 49.2"/1480mm(2 stages)
Motor 220VAC/60HZ/1PH/2.2KW
Net Weight 570KG



Pick-up location

    • Bolingbrook, IL - 360 Veterans Pkwy, Unit 110, Bolingbrook, IL 60440
    • Brookshire, TX - 2465 FM 359 South Rd, Building B Suite E, Brookshire, TX 77423
    • Jersey City, NJ - 99 Caven Point Road Unit A, Jersey City, NJ 07305
    • Pooler, GA - 88 Clyde Alexander Way, Pooler, GA 31322
    • Walnut, CA - 19465 E Walnut Dr N, Walnut, CA 91789

Please feel free to Contact us before purchasing. Please let us know which warehouse would be the preferred pickup location. We can help to check the availability.


12 Months All Parts Warranty!
