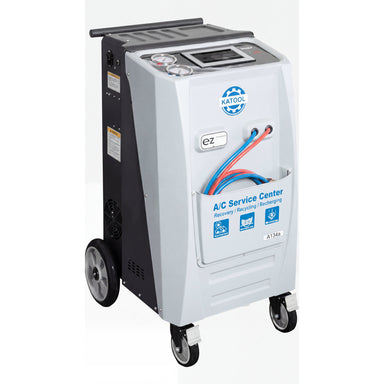

Dual-Refrigerant Automatic A/C Service Machine: R1234YF & R134A The R1234YF & R134A Fully Automatic A/C Recovery & Recharge Machine provides professional-grade automotive air conditioning service capability through automated processes and precision measurement systems. Engineered to handle both R1234YF and R134A refrigerants, this equipment streamlines complete service cycles including recovery, recycling, vacuum testing, and recharging operations.

Advanced Interface and Precision Components A 7-inch high-resolution touchscreen provides operational control and system monitoring through intuitive interface design. High-accuracy load cells ensure precise refrigerant measurement during charging cycles, while a powerful dual-stage vacuum pump achieves deep vacuum levels necessary for effective moisture removal and leak detection.

Performance Characteristics The system delivers rapid recovery speeds for efficient refrigerant extraction from vehicle A/C systems, combined with ultra-precise charging accuracy that prevents overcharging or undercharging. Advanced diagnostic capabilities enable comprehensive system analysis beyond basic recovery and recharge functions.

Integrated Service Features Equipment includes a built-in printer for documentation generation, SD database for service record storage, vacuum leak testing for system integrity verification, and intelligent system monitoring that tracks operational parameters. These integrated features maximize productivity while maintaining service precision standards across repeated service cycles.

Professional Application Environment Designed for busy auto repair shops and high-volume service centers requiring consistent performance under continuous operation. The machine delivers exceptional reliability, operational speed, and long-term value in demanding commercial automotive service environments.

Recovery Machine R-134A Specifications:

Applicable Refrigerants: R1234YF & R134A
Voltage: 110V AC, 60 Hz
Recovery Performance (70–75°F): ≥95% in under 30 minutes
Charge Accuracy: ±0.5 oz (15 g)
Operating Temperature Range: 41–122°F (5–50°C)
Maximum Pressure: 18 bar
Recovering Speed: 39.7 lbs/hr (18 kg/hr)
Charging Speed: 2.2 lbs/min (1 kg/min)
Compressor: 1/3 HP (246W), thermally protected, hermetically sealed
Vacuum Pump: 3.6 CFM (120 L/min), dual-stage
Display: 7” High-Resolution Touchscreen
Refrigerant Tank Capacity: 0.5 cu ft (14.3 L)
Oil Bottle Capacity: 15 cu in (250 mL)
Hose Length: 9.8 ft (3 m), SAE J2788
Filter-Drier Capacity: 175 lbs (80 kg), spin-on type
Gas Loadcell Accuracy: 0.04 oz / 66 lbs (1 g / 30 kg)
Oil Loadcell Accuracy: 0.04 oz / 66 lbs (1 g / 30 kg)
Vacuum Transducer Accuracy: 1 mBar / 1000 mBar
Gross Weight: 240 lbs (110 kg)
Packing Size: 22” × 28” × 41”

Recovery Machine Special Features:

Fully automatic recovery, recycling, vacuum testing, and recharge operation
Dual refrigerant compatibility for R1234YF & R134A systems
High-speed refrigerant recovery for faster job completion
Precision charging with ultra-accurate load cell sensors
Integrated vacuum leak testing for system integrity verification
Large 7-inch touchscreen interface for easy operation
Built-in printer for instant service documentation
SD database support for system updates and service records
High-efficiency dual-stage vacuum pump
Industrial-grade construction for heavy-duty professional use

Katool AC Documentation:

Katool R1234YFR134A Manual
