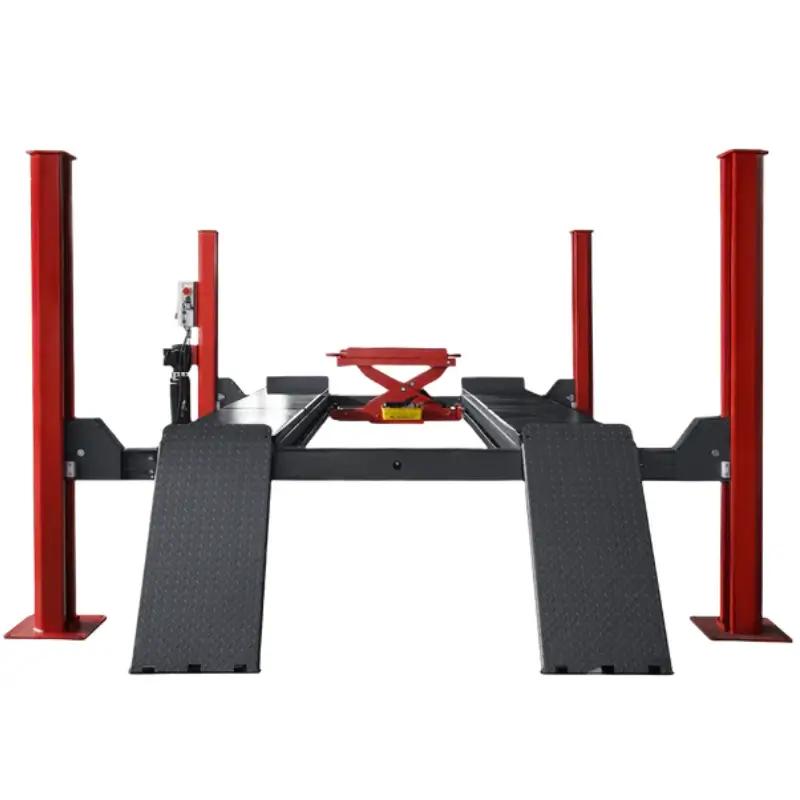

Katool KT-4H150 Heavy Duty 4-Post Alignment Lift 15,000lbs. Rolling Jack Included

by Katool
Save $600.00
Original Price $6,300.00
Current Price $5,700.00
Shipping

Notify me when back in stock

*Concrete thickness must be at least 3.93” (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

  • 15000lbs lifting capacity.
  • CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
  • Spring-loaded safety locks automatically engage continuously as the lift is raised. For added safety, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure.
  • Equipped with multiple adjustable height locking positions for variable-height positioning. A convenient push-button pneumatic safety lock control releases all four independent safety locks simultaneously.
  • Power side column can be installed at both sides, front or rear.
  • Non-skid diamond texture ramps and non-slip coated runways.
  • One 6000lbs rolling jack is included.
  • High-quality hydraulic system, 3KW motor with 220V/60HZ/1PH or 110V/60HZ/1PH (Optional)
Lifting Capacity 15000 lbs
Max. Lifting Height 75"/1905mm
Lifting Time  95s Up / 55s Down
Height of Posts 86"/2184mm
Width Overall 136"/3454mm
Length Overall
208"/5283mm
Overall Length(with ramps) 245"/6223mm
Min. Runway Height
9"/228mm
Motor 220VAC/4PH
Net Weight 4450lbs


Pick-up location

CA  Warehouse:

TX Warehouse:

GA  Warehouse:

IL  Warehouse  :

NJ Warehouse: Please feel free to contact us before purchasing. Please let us know which warehouse would be the preferred pickup location. We can help to check the availability.


12 Months All Parts Warranty!

Description

*Concrete thickness must be at least 3.93” (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

  • 15000lbs lifting capacity.
  • CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
  • Spring-loaded safety locks automatically engage continuously as the lift is raised. For added safety, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure.
  • Equipped with multiple adjustable height locking positions for variable-height positioning. A convenient push-button pneumatic safety lock control releases all four independent safety locks simultaneously.
  • Power side column can be installed at both sides, front or rear.
  • Non-skid diamond texture ramps and non-slip coated runways.
  • One 6000lbs rolling jack is included.
  • High-quality hydraulic system, 3KW motor with 220V/60HZ/1PH or 110V/60HZ/1PH (Optional)
Lifting Capacity 15000 lbs
Max. Lifting Height 75"/1905mm
Lifting Time  95s Up / 55s Down
Height of Posts 86"/2184mm
Width Overall 136"/3454mm
Length Overall
208"/5283mm
Overall Length(with ramps) 245"/6223mm
Min. Runway Height
9"/228mm
Motor 220VAC/4PH
Net Weight 4450lbs


Pick-up location

CA  Warehouse:

TX Warehouse:

GA  Warehouse:

IL  Warehouse  :

NJ Warehouse: Please feel free to contact us before purchasing. Please let us know which warehouse would be the preferred pickup location. We can help to check the availability.


12 Months All Parts Warranty!
