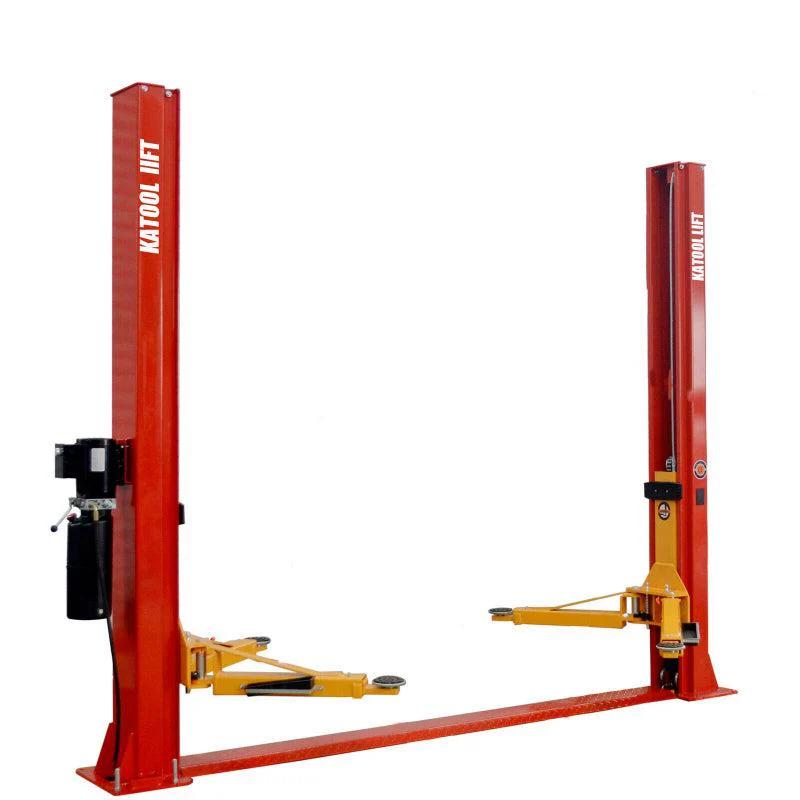

- 10000lbs lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
- Manual safety release from two sides

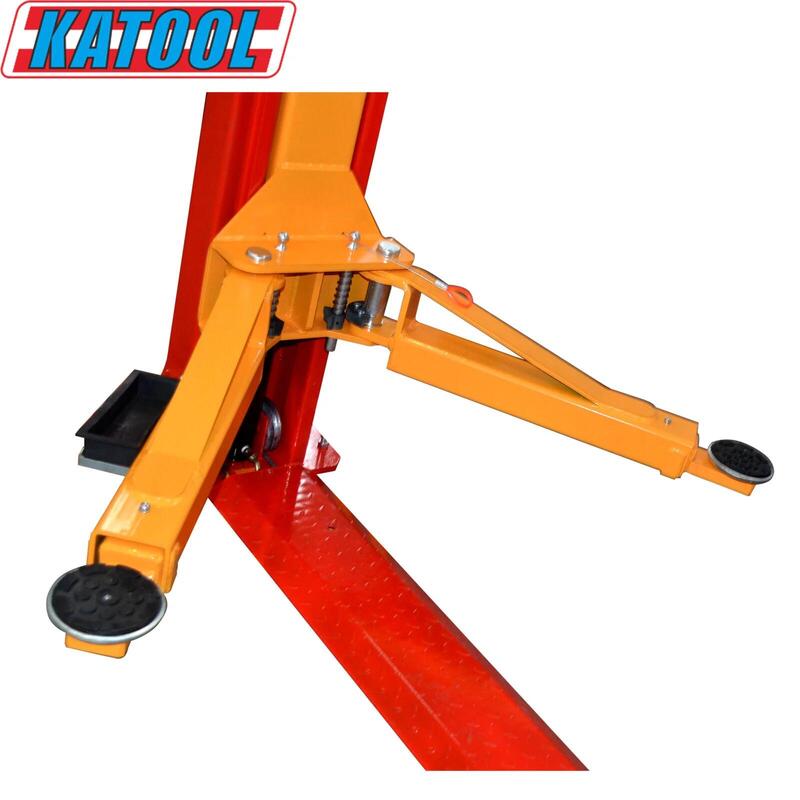

- Symmetric arm
- Base plate design
- Dual Hydraulic Chain-Drive Cylinders
- Rubber pad door opening protection
- Comes with extension support adaptor sets of +30mm and +120mm
- Feet-protection safety guardrails with tools box
- Top-level hydraulic system with 220V/60HZ/1PH (110V/60HZ/1PH
*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
| Lifting Capacity | 10000lbs/4500KG |
| Max. Lifting Height | 70.75"/1800mm |
| Min. Height | 4.25"/110mm |
| Height Overall | 110.25"/2800mm |
| Width Overall | 142.25"/3614mm |
| Outside Column | 128"/3250mm |
| Inside Column | 110.25"/2800mm |
| Dirve-Thru Clearance | 94.5"/2400mm |
| Front Arm Reach (Min) | 30.75"/780mm (2 stages) |
| Front Arm Reach (Max) | 50.5"/1280mm (2 stages) |
| Rear Arm Reach (Min) | 30.75"/780mm (2 stages) |
| Rear Arm Reach (Max) | 50.5"/1280mm (2 stages) |
| Motor | 220VAC/60HZ/1PH/2.2KW |
| Net Weight |
1256lbs/570KG |
Pick-up location
-
- Bolingbrook, IL - 360 Veterans Pkwy, Unit 110, Bolingbrook, IL 60440
- Brookshire, TX - 2465 FM 359 South Rd, Building B Suite E, Brookshire, TX 77423
- Jersey City, NJ - 99 Caven Point Road Unit A, Jersey City, NJ 07305
- Pooler, GA - 88 Clyde Alexander Way, Pooler, GA 31322
- Walnut, CA - 19465 E Walnut Dr N, Walnut, CA 91789
Please feel free to Contact us before purchasing. Please let us know which warehouse would be the preferred pickup location. We can help to check the availability.
