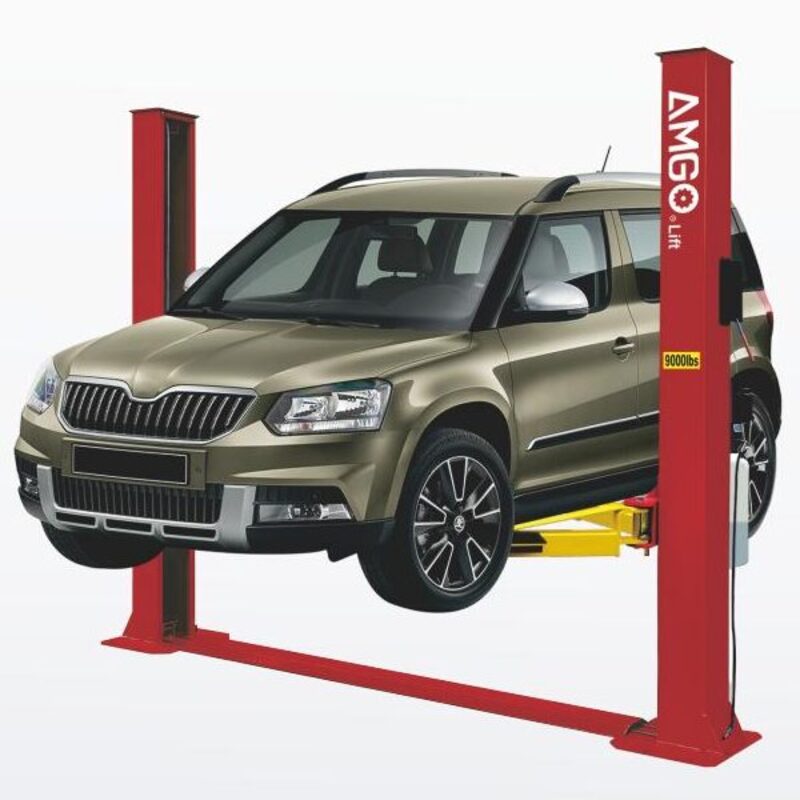

Amgo BP-9X, 9000 lb 2 Post Car Lift - Low Ceiling
by Amgo
Save $600.00
Original Price
$3,520.00
Current Price
$2,920.00
kThe BP-9X is a base-plate two-post lift designed for low ceiling garages. The total column height of 111 7/8″ allows this lift to be installed in almost any professional or home garage with a ceiling higher than 9.5 feet. The BP-9X features symmetric arms, and automatic arm restraints. The BP-9X also has a single point release switch to make it easier to unlock both column locks from one column.
Features
- 9,000 lbs capacity, commercial grade 2-post base plate lift is designed andbuilt for professional shops and home garages to fit low ceiling workshop environment without overhead obstructions.
- Single-point safety release allows the operator to unlock the safety locks from both columns simultaneously. There is also a dual locking system for additional safety.
- 4 three-stage arms are suitable for more vehicles.
- Automatic arm restraints keep the arms locked in their proper positions.
- Self-lubricating UHMW Polyethylene sliders and bronze bush.
- Aircraft quality cable is used for synchronization.
- Detachable foot guard and tool tray allow for a clutter free workspace.
| Model | BP-9X |
|---|---|
| Lifting Capacity | 9,000 lbs （4,082 kg） |
| Lifting Time | 49s |
| A: Lifting height | 76 3/8″ ~ 85 3/8″ (1940~2169mm) |
| B: Overall Height | 111 7/8″ (2841mm) |
| C: Overall Width | 136 1/4″ （3460mm） |
| D: Drive-Thru Clearance | 100 3/4″ （2560mm） |
| E: Width Between Columns | 112 1/4″ (2850mm) |
| F: Minimum Pad Height | 3 1/2″ （90mm） |
| Gross Weight | 1,590 lbs（721 kg） |
| Motor | 2.0HP/220V/60Hz,Single Phase |
