- 9,000 lb. Capacity
- Free Standing/Portable Design
- Heavy Duty
- Extra Tall/Extra Wide/Extra Long

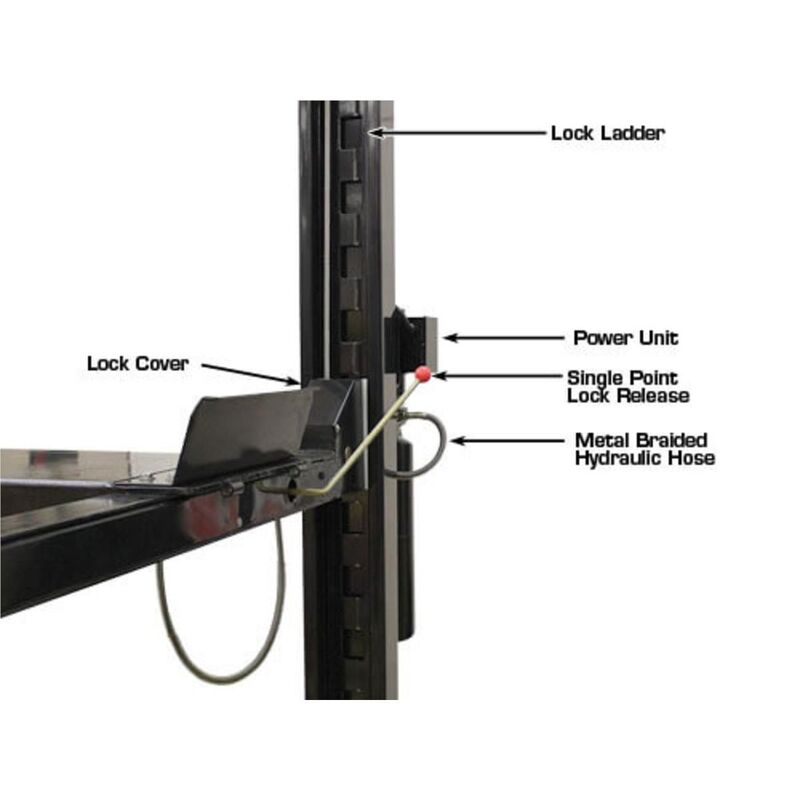

- Single-Point Lock Release

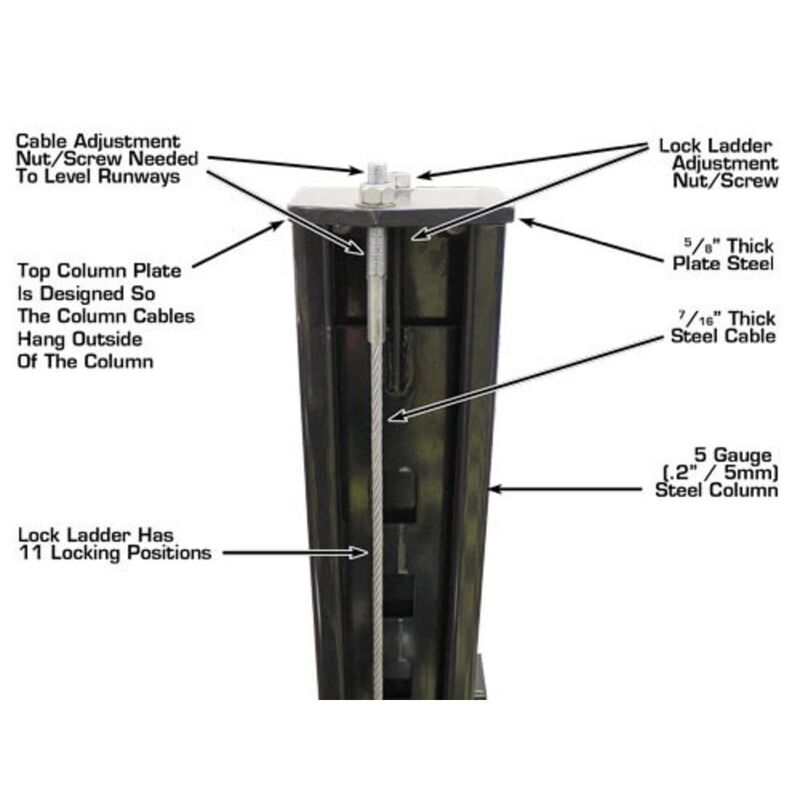

- Lock Ladder Design
- Double Lock Safety System
- Caster Kit With Polyurethane Wheels Included
- Steel Approach Ramps Included
- Steel Jack Tray Included
- 4 Plastic Drip Trays Included
- 2 Rubber Wheel Chocks Included
- Perfect For Storing Or Working On Vehicles
- 110volt Electric Operation (30 AMP BREAKER REQUIRED)
- Shipping Weight 2,300 lbs.
- 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only
Atlas Garage PRO9000 Specifications
- Capacity: 9,000 Lb.
- Lifting Height To Top Of Runway: 85" (7' 1")
- Clearance Under Runways: 80 1/4" (6' 8 1/4")
- Height Of Columns: 95 3/4" (7' 11 3/4")
- Overall Width (Without Motor): 123 1/2" (10' 3 1/2")
- Overall Width (With Motor): 131 1/2" (10' 11 1/2")

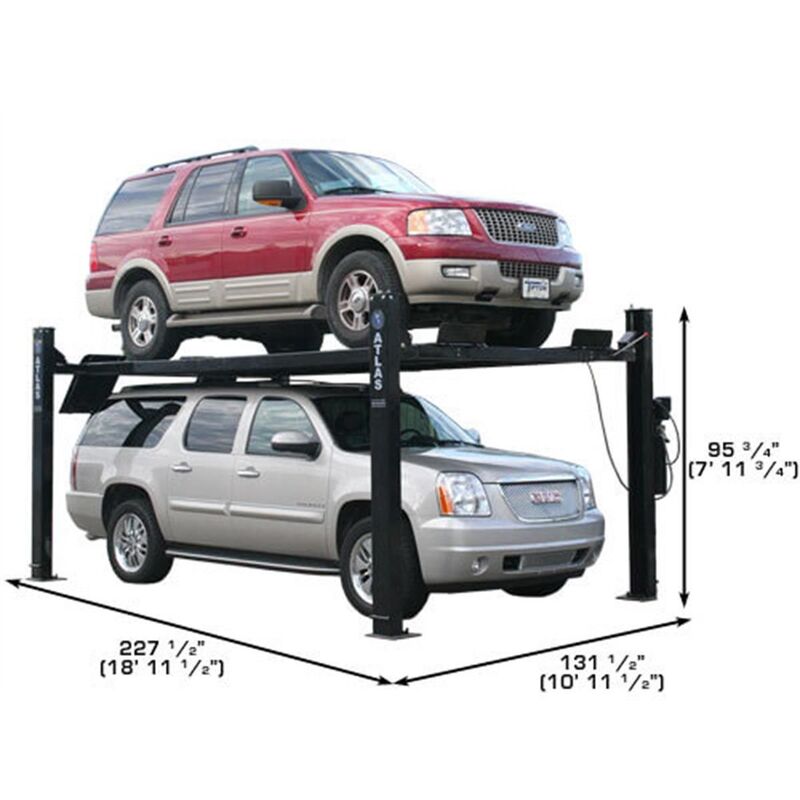

- Overall Length With Approach Ramp: 227 1/2" (18' 11 1/2”)

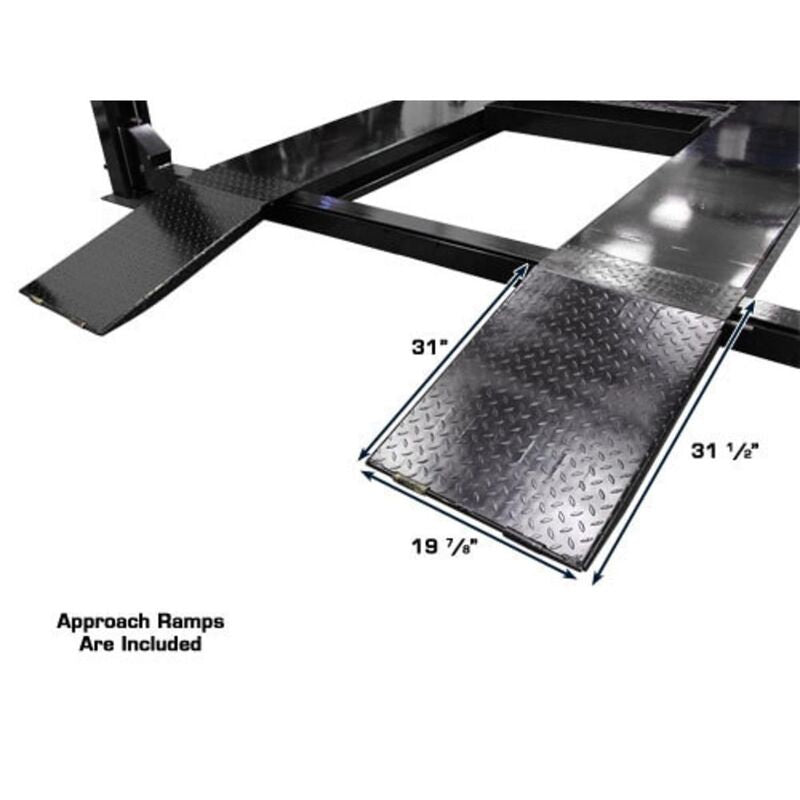

- Approach Ramp: 31" (2' 7")
- Runway Width: 21 1/4" (w/ Rails) or 20" (Driving Surface)
- Runway Length: 199 1/2" (16' 7 1/2")
- Runway Thickness: 4 3/4"

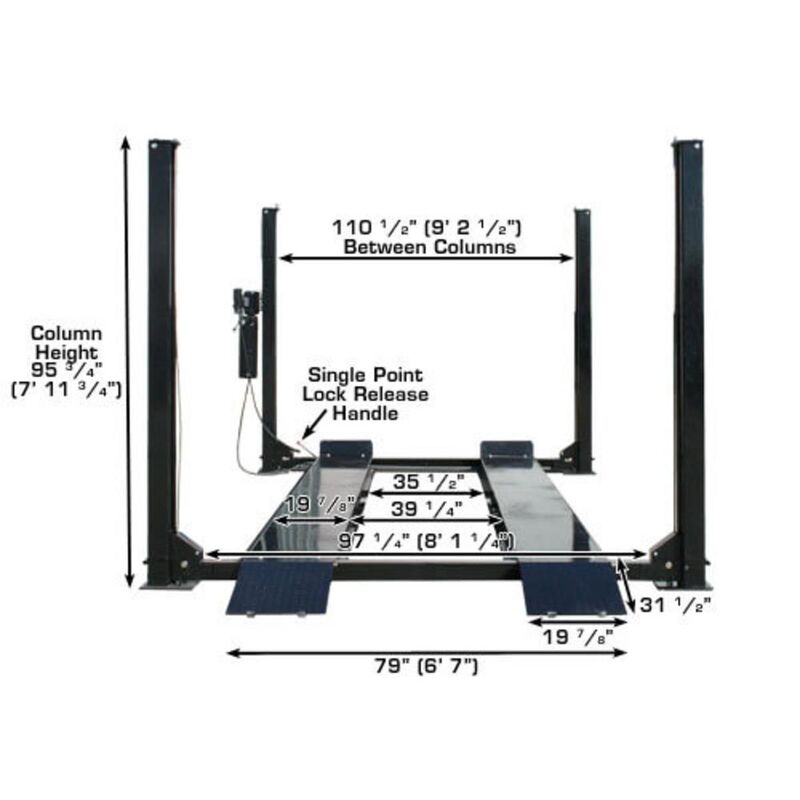

- Width Between Runways: 39 1/4" (3' 3 1/4")
- Width Between Runway Rails: 35 1/2" (2' 11 1/2")
- Outside Runway To Outside Runway: 79" (6' 7")
- Clearance Between Columns: 110 1/2" (9' 2 1/2")

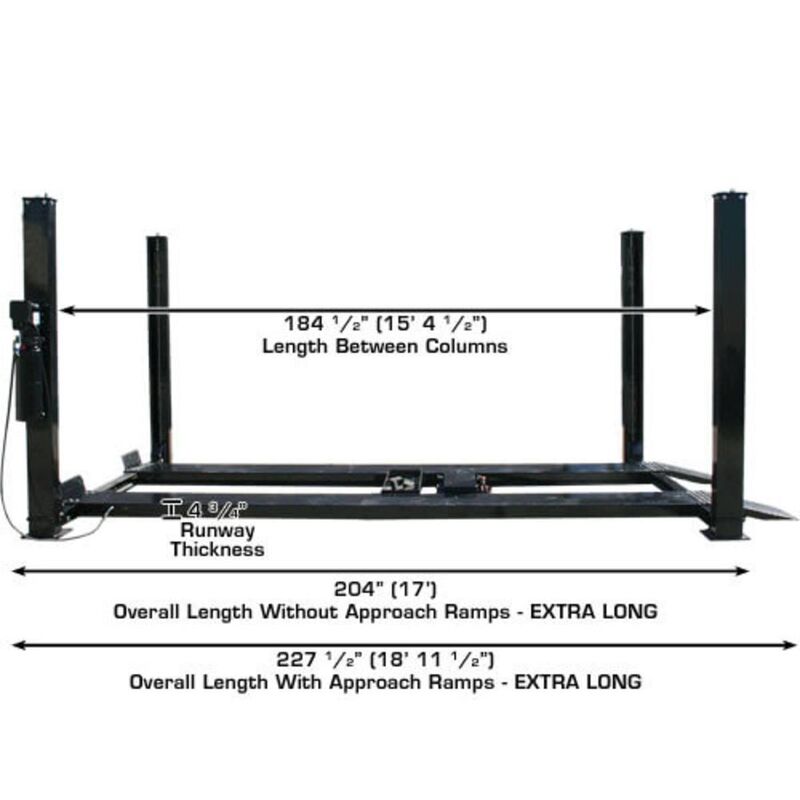

- Length Between Columns: 184 1/2" (15' 4 1/2")
- Maximum Wheel Base: 187" (15' 7")
- Drive Thru (Outside Of Tire To Outside Of Tire): 97 1/4" (8' 1 1/4")
- Motor/Electrical Requirement: 110 Volt, 30 AMP BREAKER REQUIRED
- Shipping Weight: 2,300 lb.

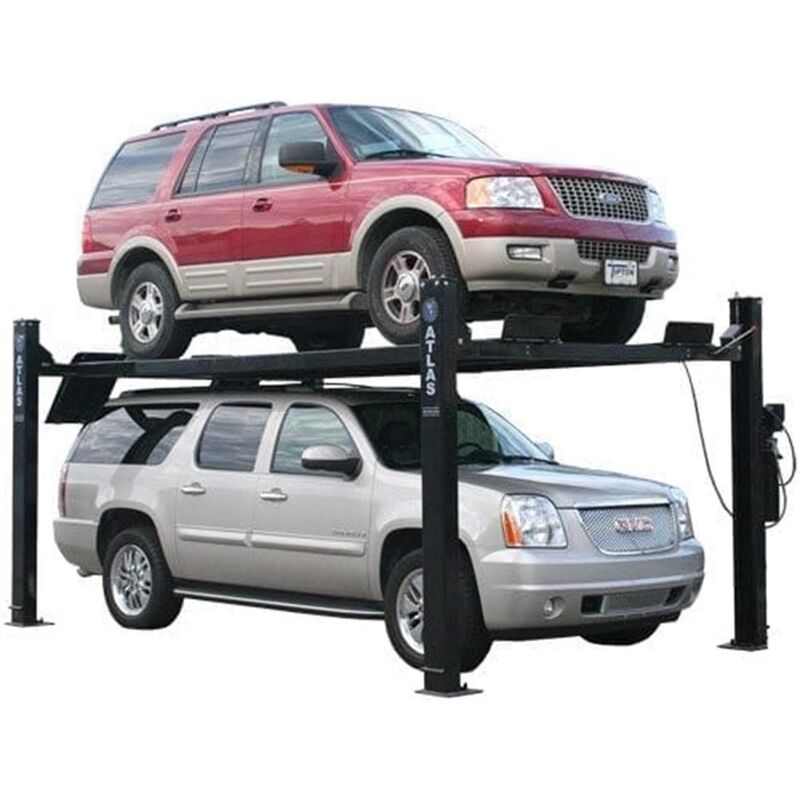

The Atlas Garage PRO9000 4 post lift is a heavy duty hobbyist lift and features the highest lifting capacity of all our Garage PRO series lifts. The Garage PRO9000 is extra long and has the longest runways (we believe) of any portable 9,000 LB. four post on the market. That feature allows the lift to handle some of the longest wheel base vehicles out there. The Garage PRO9000 is extra wide allowing even Diesel Duallys to be driven onto the runways. This lift also features extra height so everything from Smart Cars to a Dually can be parked both below and on the runways. The Atlas Garage PRO9000 weighs about 600 LB. more than our Atlas Garage PRO8000 making it one of the heaviest portable hobbyist lifts on the market. The Garage PRO9000 four post above ground lift incorporates many features that are not found in any of our competitors' four post lifts that are sold in the USA. The Atlas Garage PRO9000 includes free plastic drip trays, a free steel jack tray, and a free caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside. Finally, the Atlas Garage PRO9000 is the only Garage PRO series lift with “tracks” between the runways to allow the use of a rolling bridge jack (such as the Atlas RJ6BK ) on the lift. The commercial grade features of the Garage Pro 9000 make this lift the perfect choice for automotive service center or “Mr. Homeowner” that needs a PORTABLE professional four post lift at a competitive price.
