If your current scissor lift struggles with heavy-duty tasks, limited lifting capacity, or safety concerns, it can slow down your workflow and create unnecessary frustrations. The Katool KT-X90E Lift solves all of these problems with power, precision, and versatility.

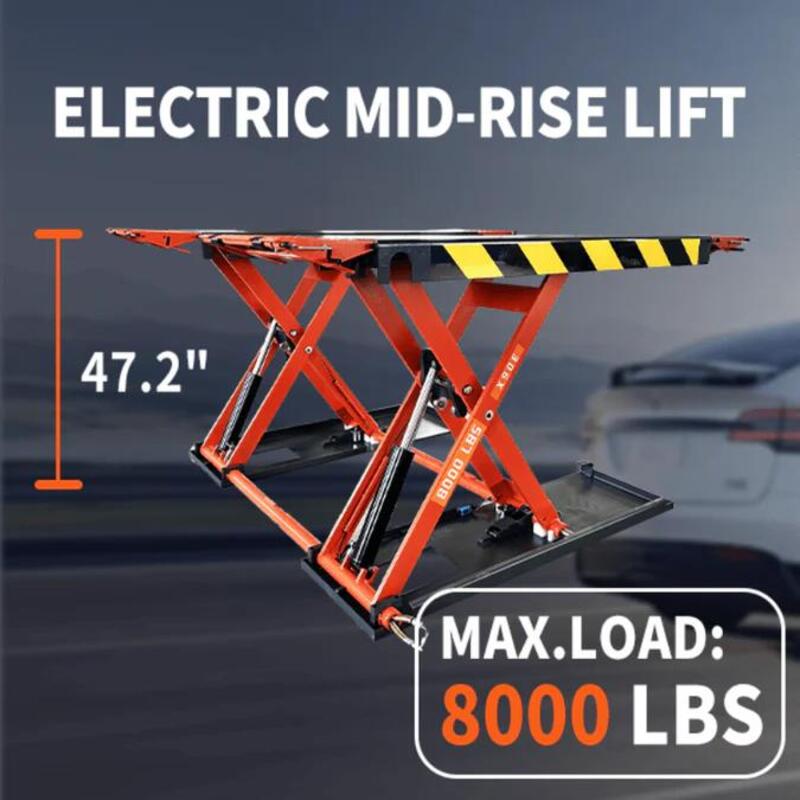

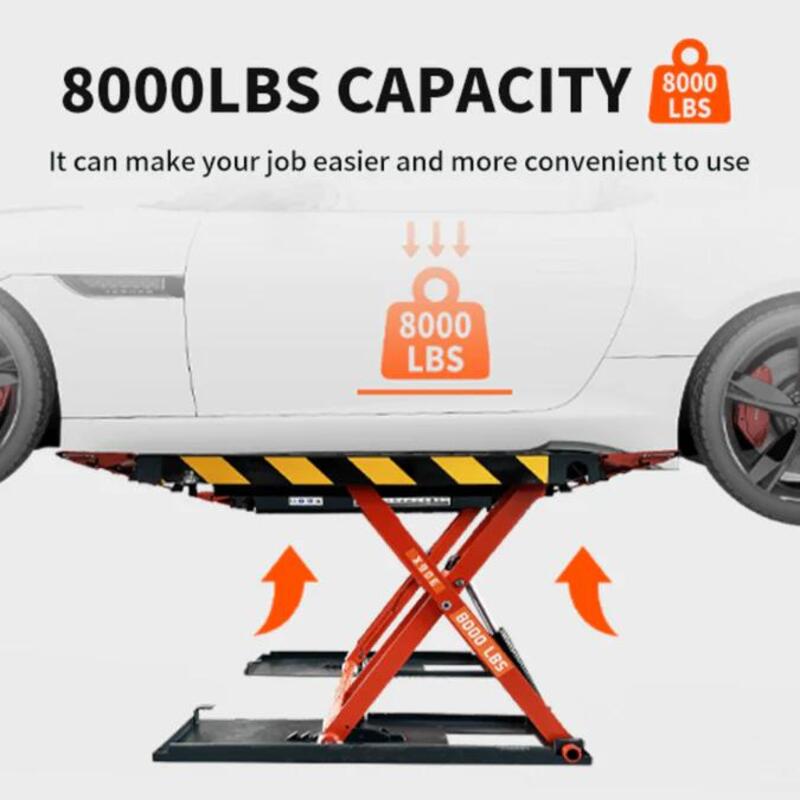

With an 8,000-lb lifting capacity and a maximum lift height of 47 inches, the KT-X90E easily handles even the most demanding vehicles. Safety is a priority, featuring a height limit switch and composite rubber lifting blocks for secure, stable operation.
Designed for flexibility, this lift supports both 110V and 220V power supplies, while a self-lubricating system keeps maintenance minimal. Drive-up ramps accommodate a wide variety of vehicles, and the top-quality hydraulic system paired with an aluminum motor ensures consistent, reliable performance—even during extended use.
With the Katool KT-X90E, you can lift with confidence, efficiency, and ease—making it the ultimate solution for your shop’s heavy-duty needs.
Scissor Lift KT-X90E Specifications:
- Max. Lifting Capacity: 8000 lbs
- Max. Lifting Height: 47"
- Min. Lifting Height: 4.3"
- Lifting Time: 30 seconds
- Platform Length: 81.5"
- Platform Width: 20.1"
- Width between Platforms: 32.2"
- Rated Oil Pressure: 20 MPa
- Power: 110v (30amp) or 220v
- Lock Positions: 5
- Oil: AW-46 or AW-32 (colder climates)
-
Pallet Dimensions:
- (1) 78" x 67" x 9" - 1,179lbs
- (1) 37" x 16" x 16" - 110lbs
-
Optional: Support Bars
- Overall Length: 73"
- Pin Distance: 48" to 59" Wide
- Adapter Height: 6.2" to 8" Tall
KT-X90E Special Features:
- Lifting capacity: 8000lb
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Flush mount design
- Starting-up system design

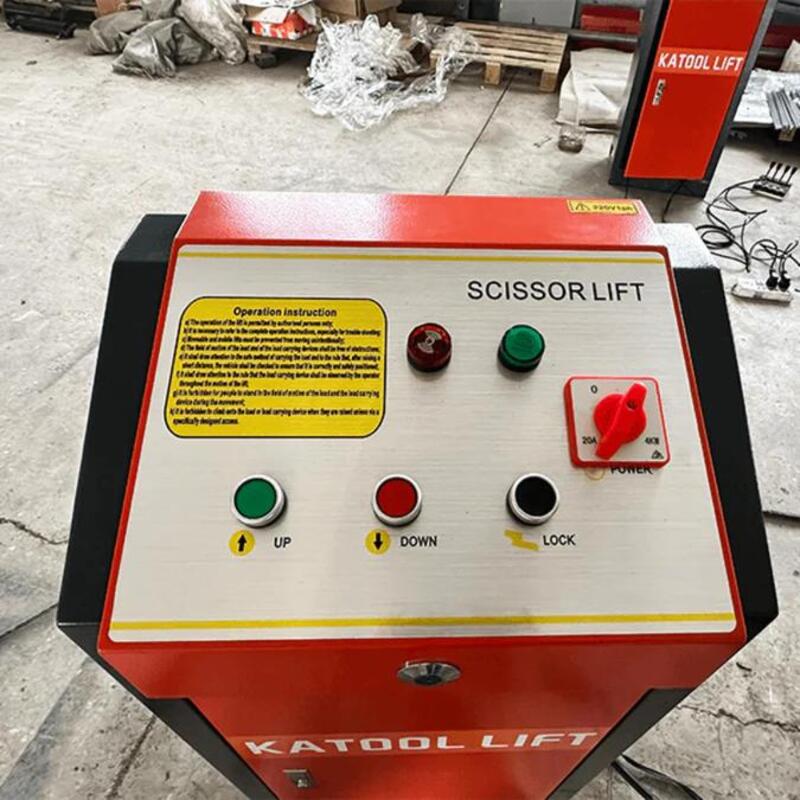

- 24V safe control system
- Height limit switch

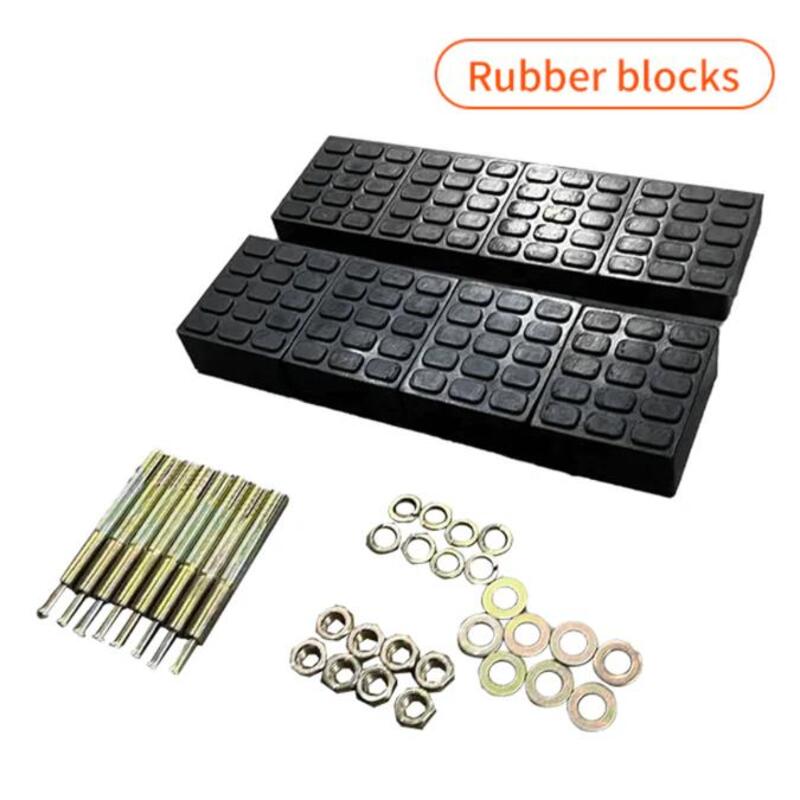

- Composite rubber lifting blocks included
- Comes with self-lubricated bushing and bearing
- Drive-up ramps lock design as platform extension for long vehicles
- Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working
- Power: 110v/220v/60Hz, single phase

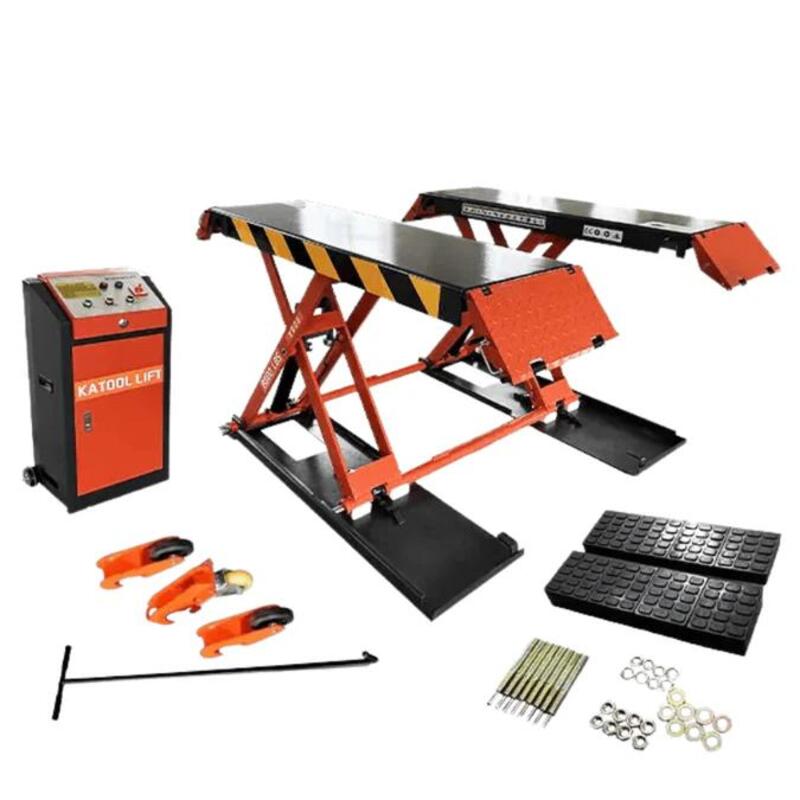

- Includes: Caster Kit for Mobility
- Katool Warranty:
- One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
- Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.
- Optional: Support Bars - Sold Separately
- Support Bars spread the weight out evenly and have more adjustment for lifting SUVs and full frame vehicles.
-
Pick-up location
-
- Bolingbrook, IL - 360 Veterans Pkwy, Unit 110, Bolingbrook, IL 60440
- Brookshire, TX - 2465 FM 359 South Rd, Building B Suite E, Brookshire, TX 77423
- Jersey City, NJ - 99 Caven Point Road Unit A, Jersey City, NJ 07305
- Pooler, GA - 88 Clyde Alexander Way, Pooler, GA 31322
- Walnut, CA - 19465 E Walnut Dr N, Walnut, CA 91789
Please feel free to Contact us before purchasing. Please let us know which warehouse would be the preferred pickup location. We can help to check the availability.
