Katool KT-SPL 700 7000 LB Single Post Lift

Katool KT-SPL 700 7000 LB Single Post Lift

by Katool
Save $99.00
$5,299.00
$5,200.00
Shipping

Notify me when back in stock

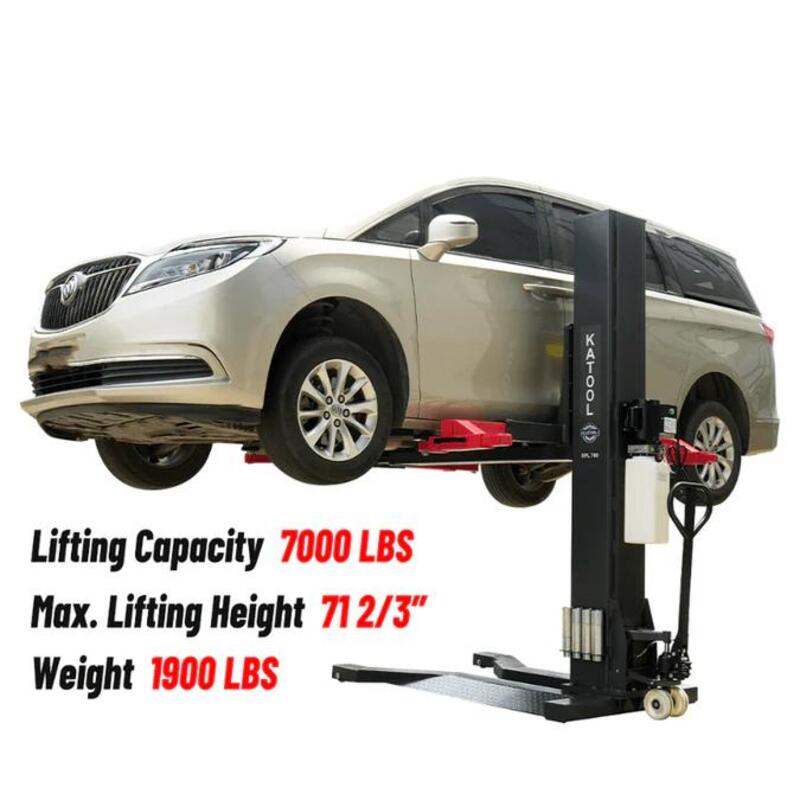

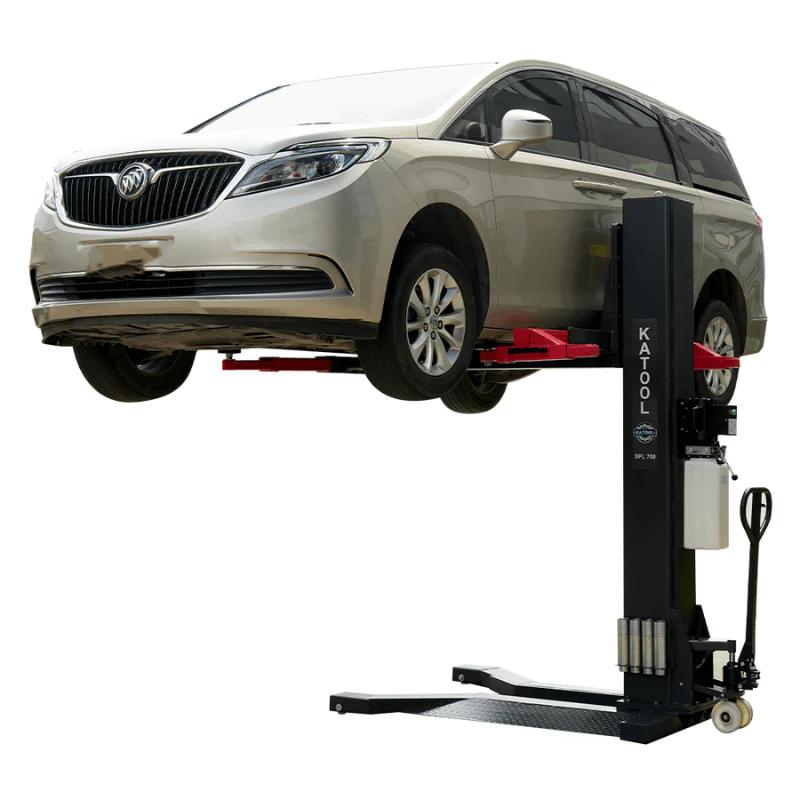

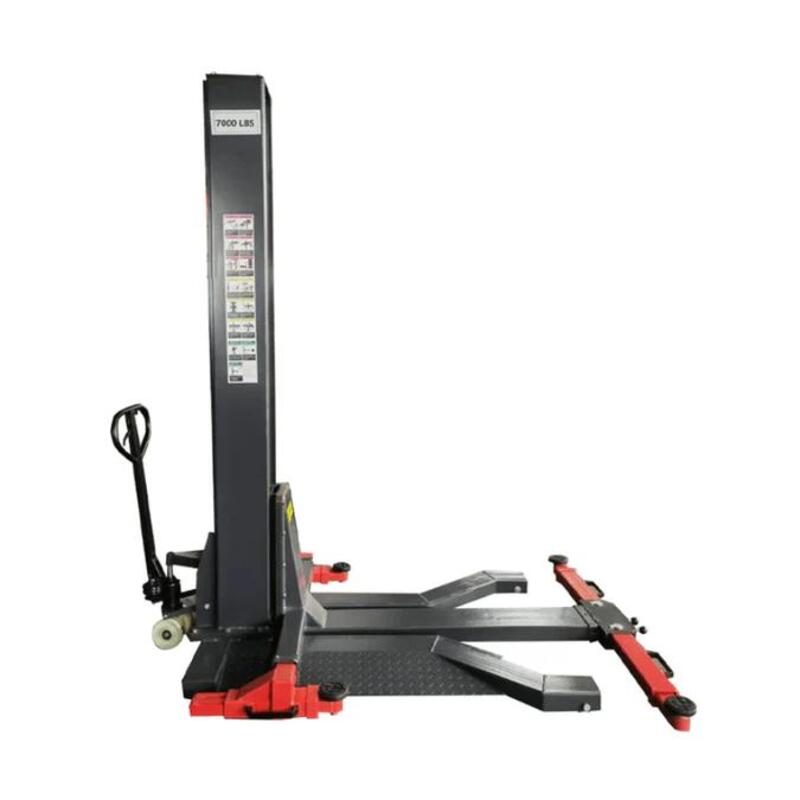

The Katool SPL 700 Single Post Lift is an ideal choice for tight workspaces, home garages, and professional shops that need a compact yet powerful lifting solution. With a 7,000-pound lifting capacity, this space-saving lift is perfect for servicing sedans, small trucks, and light-duty vehicles. Its single-post design provides full undercarriage access while keeping a small footprint, making it excellent for maximizing shop space.

Designed for convenience and versatility, the SPL 700 includes an adjustable lifting pad system to accommodate a wide range of vehicle widths. It features a maximum lift height of 71 2/3 inches and a clearance height of 68 inches, providing ample room for under-vehicle work. Operating on a 110V electrical supply with only a 30-amp breaker, it’s compatible with most residential and commercial setups. For added flexibility, the lift comes with four truck adapters in two heights (2.75" and 6"), allowing for precise customization for different vehicles.

SPL700 Specifications

  • Lifting Capacity: 7000lb

  • Max Lifting Height (No Adapters): 71 2/3"

  • Max Clearance Height: 68"

  • Minimum Pad Height: 5"

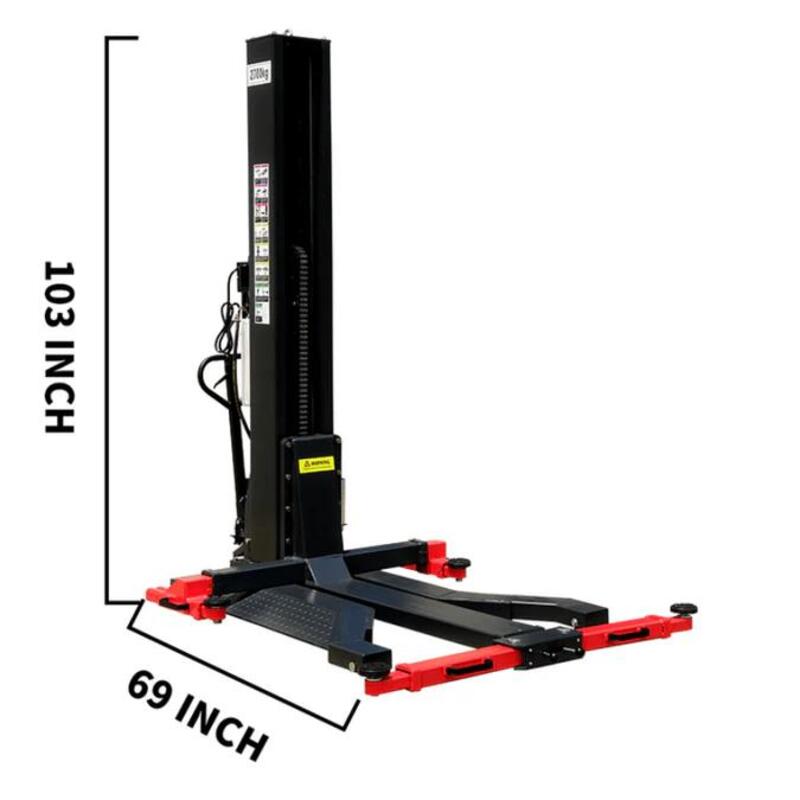

  • Overall Height: 102 3/4"

  • Overall Dimensions (L x W x H): 111 1/2" x 96" 102 3/4"

  • Column Size: 10 1/2" x 12 1/2"

  • Distance Between Lifting Pads:

    • Column to Offside: 39 1/2" to 81"

    • Column to Column: 53" to 73"

    • Offside to Offside: 54 1/3" x 91 1/2"

  • Motor Requirement: 110V, 30-amp breaker

  • Oil Requirement: 3-5 gallons of AW32 or AW46 (not included)

  • Shipping Weight: 1,900 lbs

  • Adapter Heights Included: (4) 2.75" and (4) 6"

  • Adapter Peg Size: 2"

SPL 700 6,000 LB Single Post Lift Special Features

  • Heavy-duty 7000 lb lifting capacity

  • Compact single-post design ideal for limited spaces

  • Fully adjustable lifting pad reach for a wide range of vehicles

  • 110V power operation compatible with home or shop use

  • Easy installation and operation for mechanics of all levels

  • Includes four adapters for lifting versatility

  • Great for tire, brake, and undercarriage work

Description

The Katool SPL 700 Single Post Lift is an ideal choice for tight workspaces, home garages, and professional shops that need a compact yet powerful lifting solution. With a 7,000-pound lifting capacity, this space-saving lift is perfect for servicing sedans, small trucks, and light-duty vehicles. Its single-post design provides full undercarriage access while keeping a small footprint, making it excellent for maximizing shop space.

Designed for convenience and versatility, the SPL 700 includes an adjustable lifting pad system to accommodate a wide range of vehicle widths. It features a maximum lift height of 71 2/3 inches and a clearance height of 68 inches, providing ample room for under-vehicle work. Operating on a 110V electrical supply with only a 30-amp breaker, it’s compatible with most residential and commercial setups. For added flexibility, the lift comes with four truck adapters in two heights (2.75" and 6"), allowing for precise customization for different vehicles.

SPL700 Specifications

  • Lifting Capacity: 7000lb

  • Max Lifting Height (No Adapters): 71 2/3"

  • Max Clearance Height: 68"

  • Minimum Pad Height: 5"

  • Overall Height: 102 3/4"

  • Overall Dimensions (L x W x H): 111 1/2" x 96" 102 3/4"

  • Column Size: 10 1/2" x 12 1/2"

  • Distance Between Lifting Pads:

    • Column to Offside: 39 1/2" to 81"

    • Column to Column: 53" to 73"

    • Offside to Offside: 54 1/3" x 91 1/2"

  • Motor Requirement: 110V, 30-amp breaker

  • Oil Requirement: 3-5 gallons of AW32 or AW46 (not included)

  • Shipping Weight: 1,900 lbs

  • Adapter Heights Included: (4) 2.75" and (4) 6"

  • Adapter Peg Size: 2"

SPL 700 6,000 LB Single Post Lift Special Features

  • Heavy-duty 7000 lb lifting capacity

  • Compact single-post design ideal for limited spaces

  • Fully adjustable lifting pad reach for a wide range of vehicles

  • 110V power operation compatible with home or shop use

  • Easy installation and operation for mechanics of all levels

  • Includes four adapters for lifting versatility

  • Great for tire, brake, and undercarriage work
