Atlas 9KOHX 9,000 lb Overhead 2-Post Lift
The Atlas 9KOHX 9,000 lb 2-Post Lift is a practical choice for home garages and smaller automotive shops that need a dependable lift without stepping up to a more expensive commercial model. With a 9,000 lb lifting capacity, overhead clear-floor design, adjustable height, and flexible arm positioning, the 9KOHX can handle a wide range of cars, SUVs, and light-duty trucks.
It also includes an 8-piece truck adapter set and sliding arm adapters, giving you more flexibility right out of the box.
Clear-Floor Design Gives![]()
You More Room to Work
The 9KOHX uses an overhead design, which means there isn't a floor plate running between the columns.
That keeps the area underneath the vehicle open and makes it easier to move around with tools, jacks, drain pans, and other equipment while you're working.
Two Height Settings for Different Garages

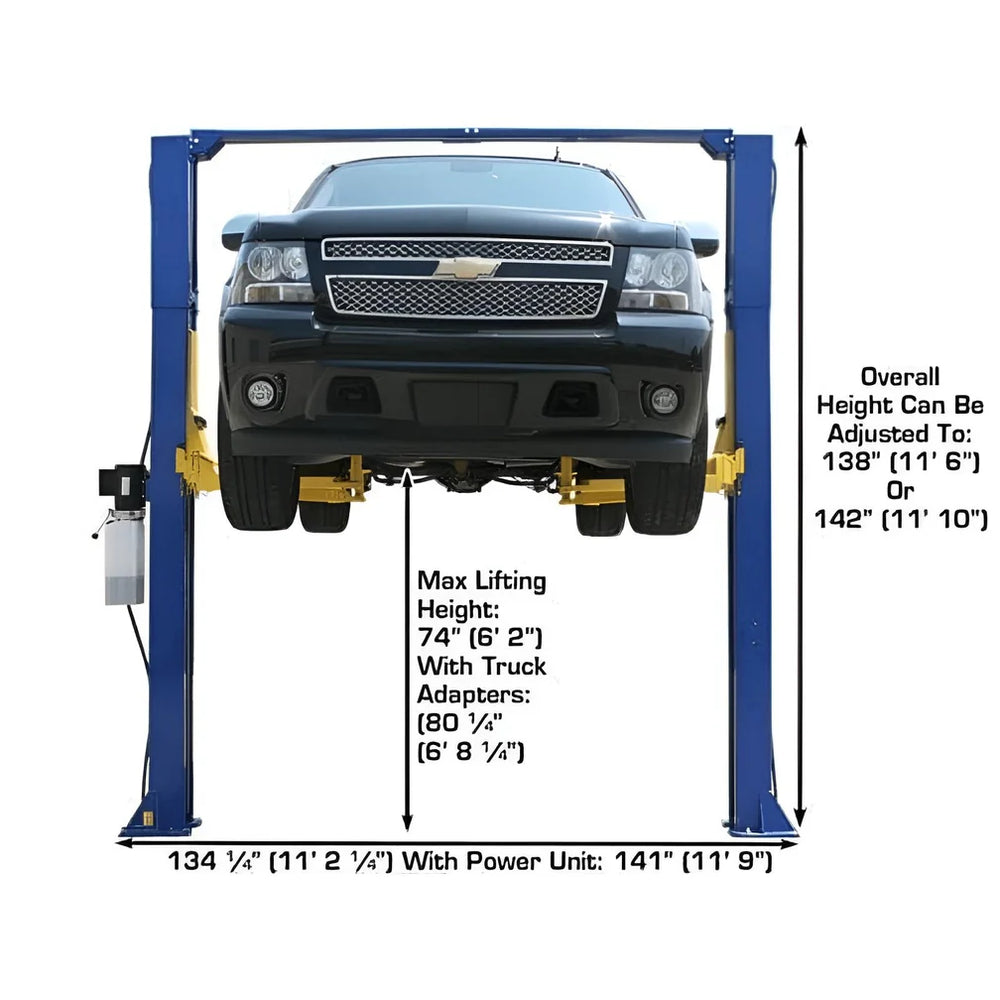

Not every garage has the same ceiling height, so Atlas gives the 9KOHX two installation options.
The lift can be installed at either 138 inches (11' 6") or 142 inches (11' 10"), giving you some flexibility when fitting it into your available space.
Always measure your garage ceiling and the vehicles you plan to lift before ordering.

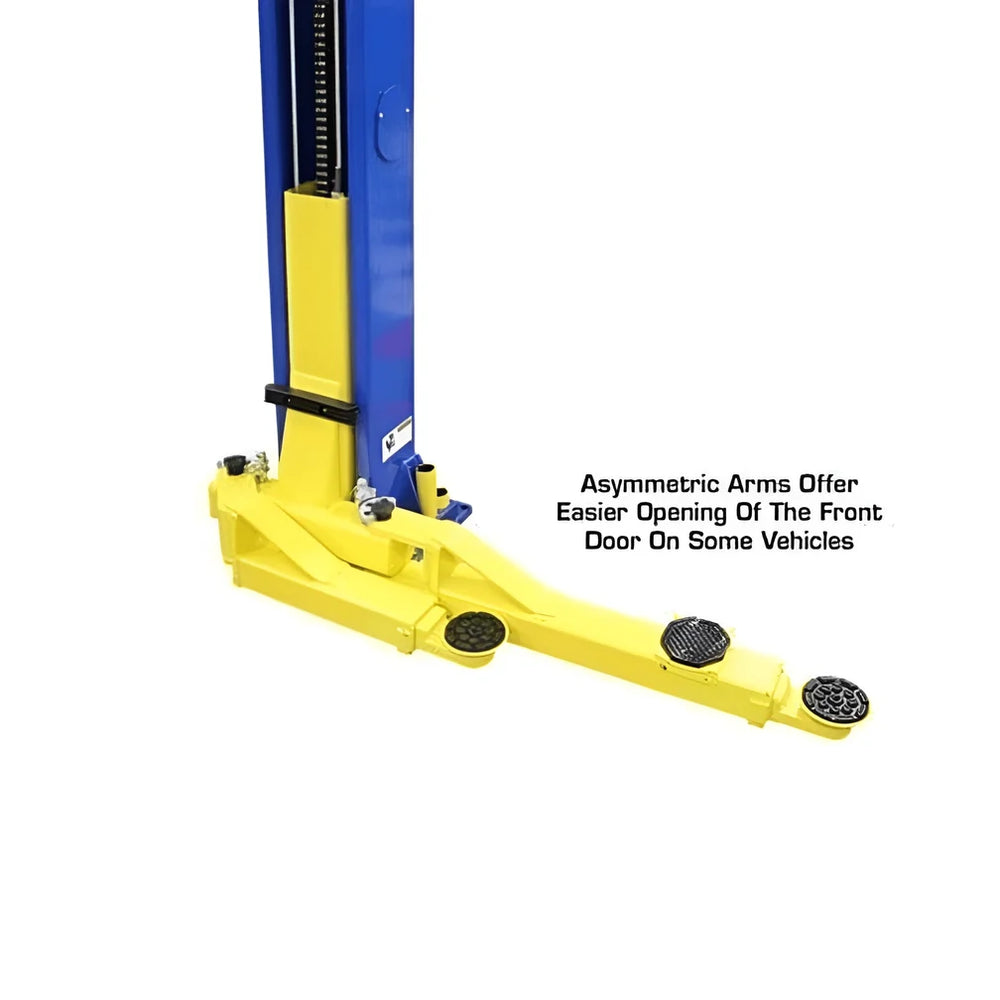

Symmetric or Asymmetric Arm Positioning

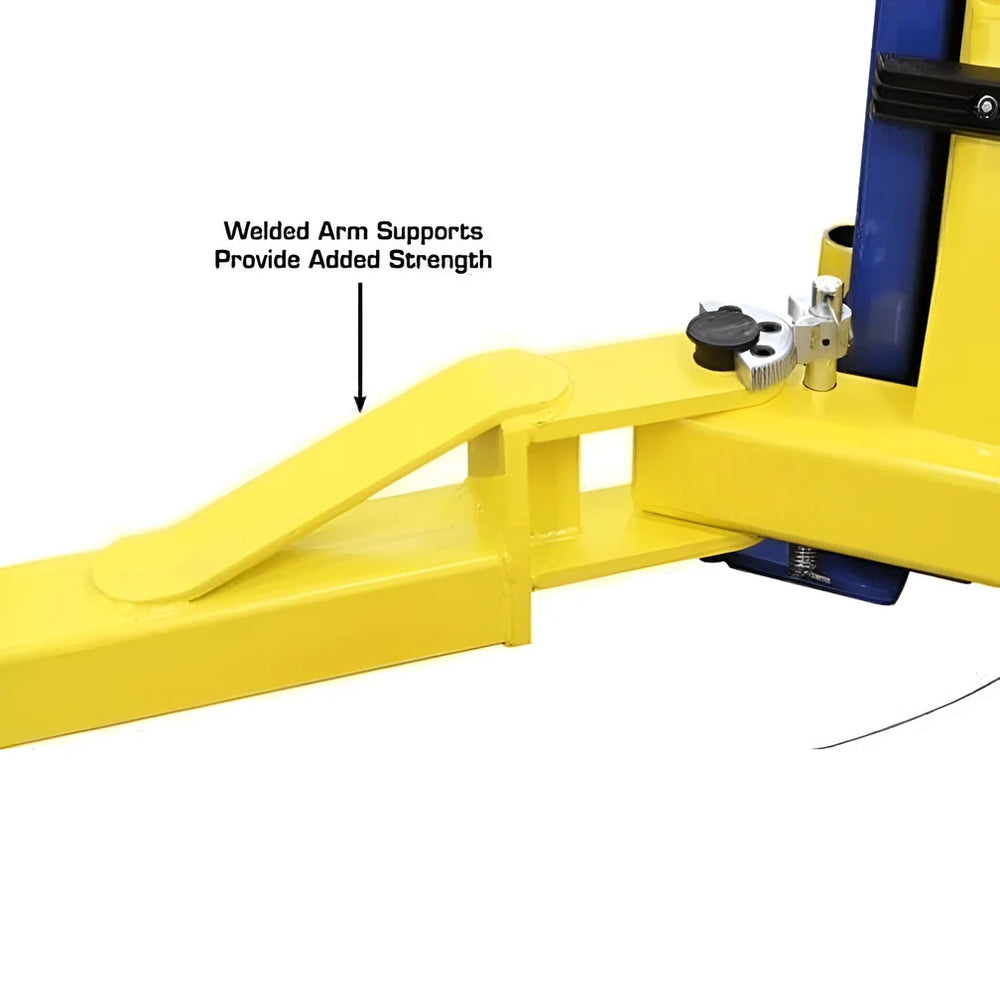

The specially designed arms can be positioned for either symmetric or asymmetric vehicle lifting, making the 9KOHX more versatile when working on different types of vehicles.

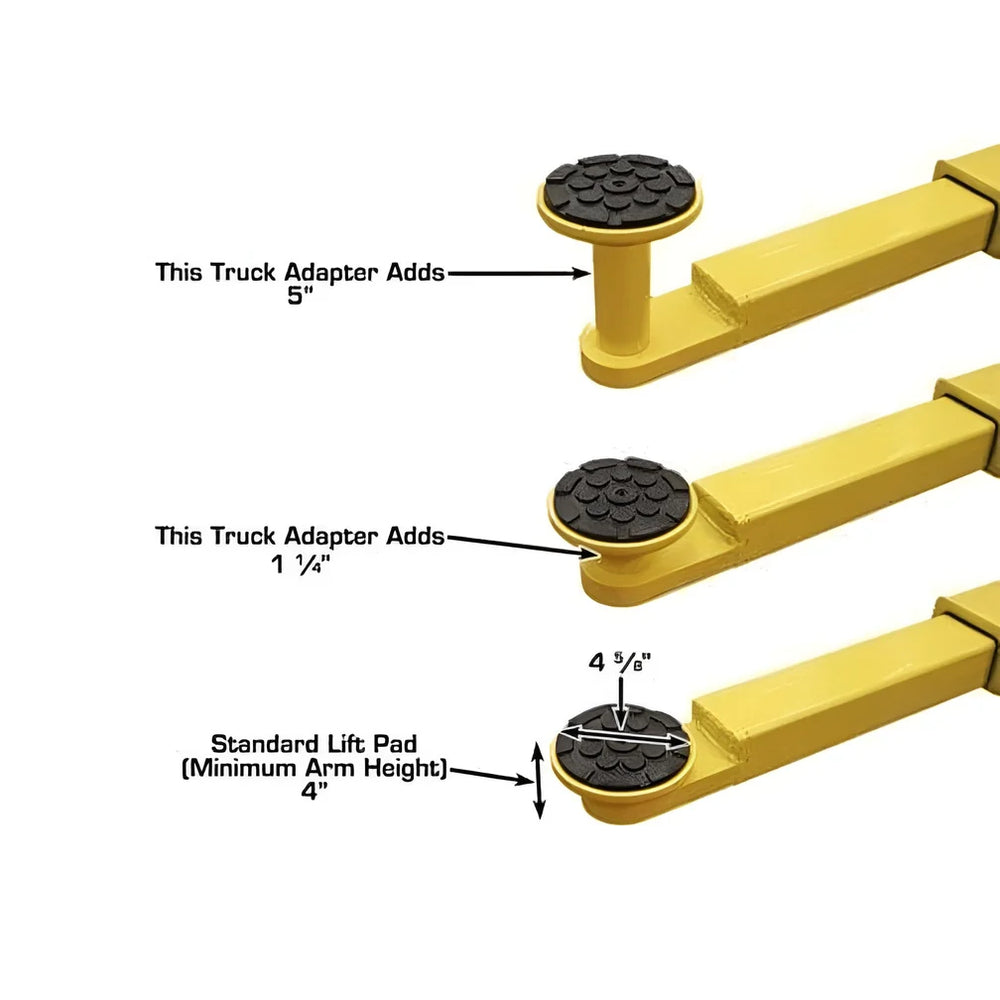

The lift has a low 4-inch minimum arm height, which helps when reaching lifting points on lower cars. For trucks and vehicles with higher frames, the included adapters provide additional height.
When configured symmetrically, the lift provides up to 100 inches of drive-through clearance.

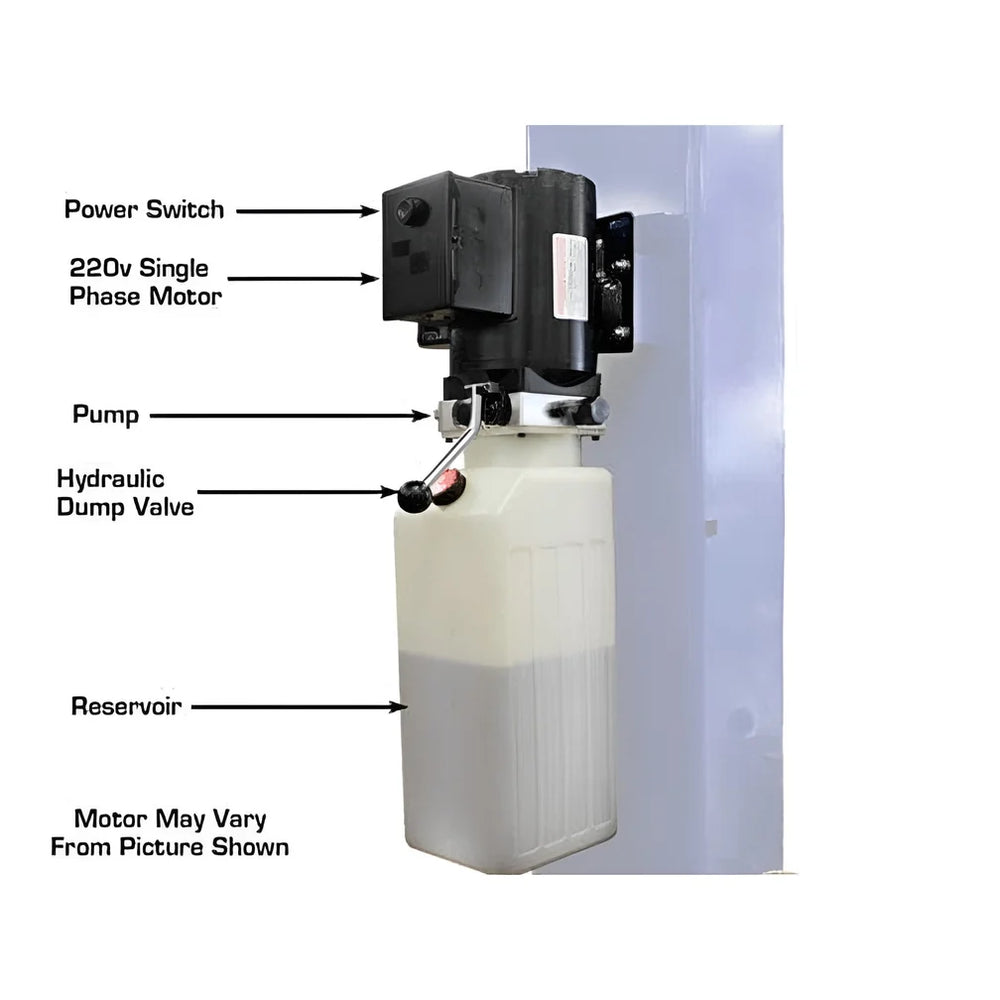

Dual Hydraulic Chain-Drive System

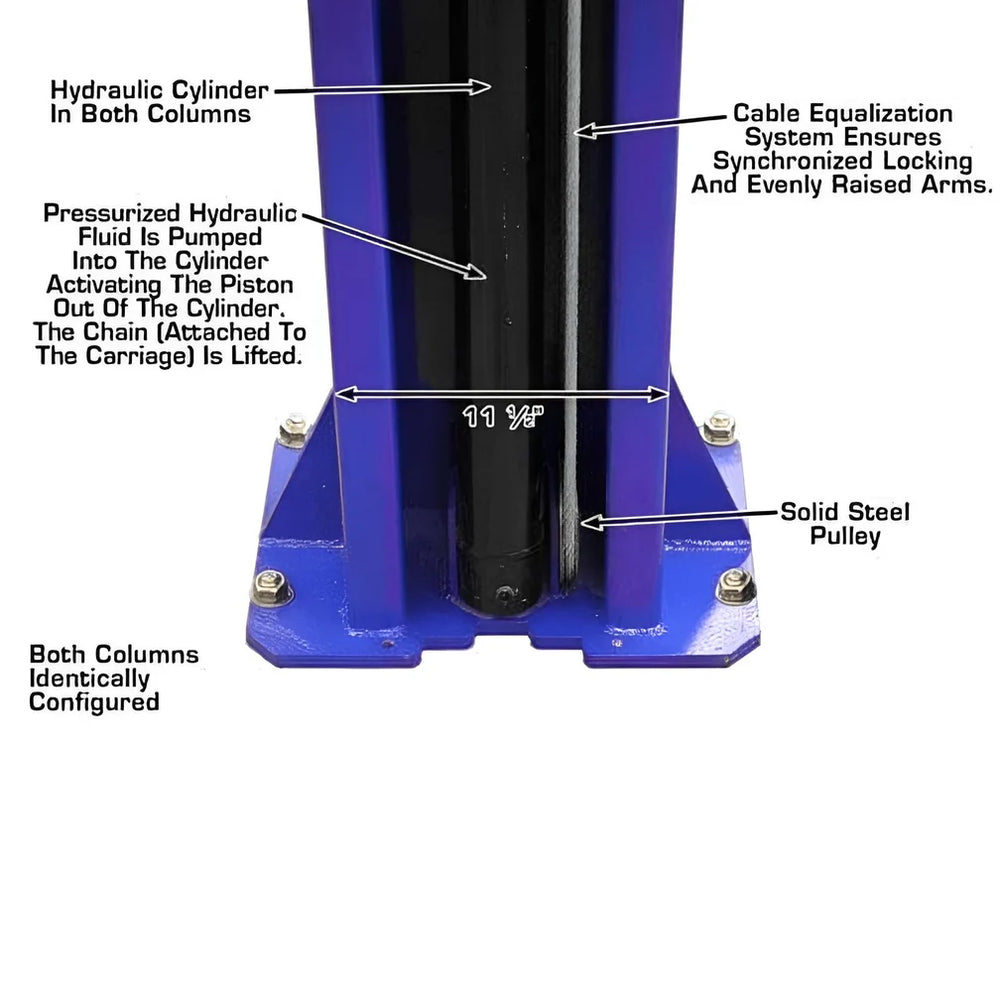

The Atlas 9KOHX uses dual hydraulic chain-drive cylinders to raise and lower the vehicle.
The lift also features automatic arm restraints and a dual-point lock release, giving the operator control of the mechanical safety locks from both columns.
Secondary Lock System
One of the important safety features on the 9KOHX is its Secondary Lock System (SLS).

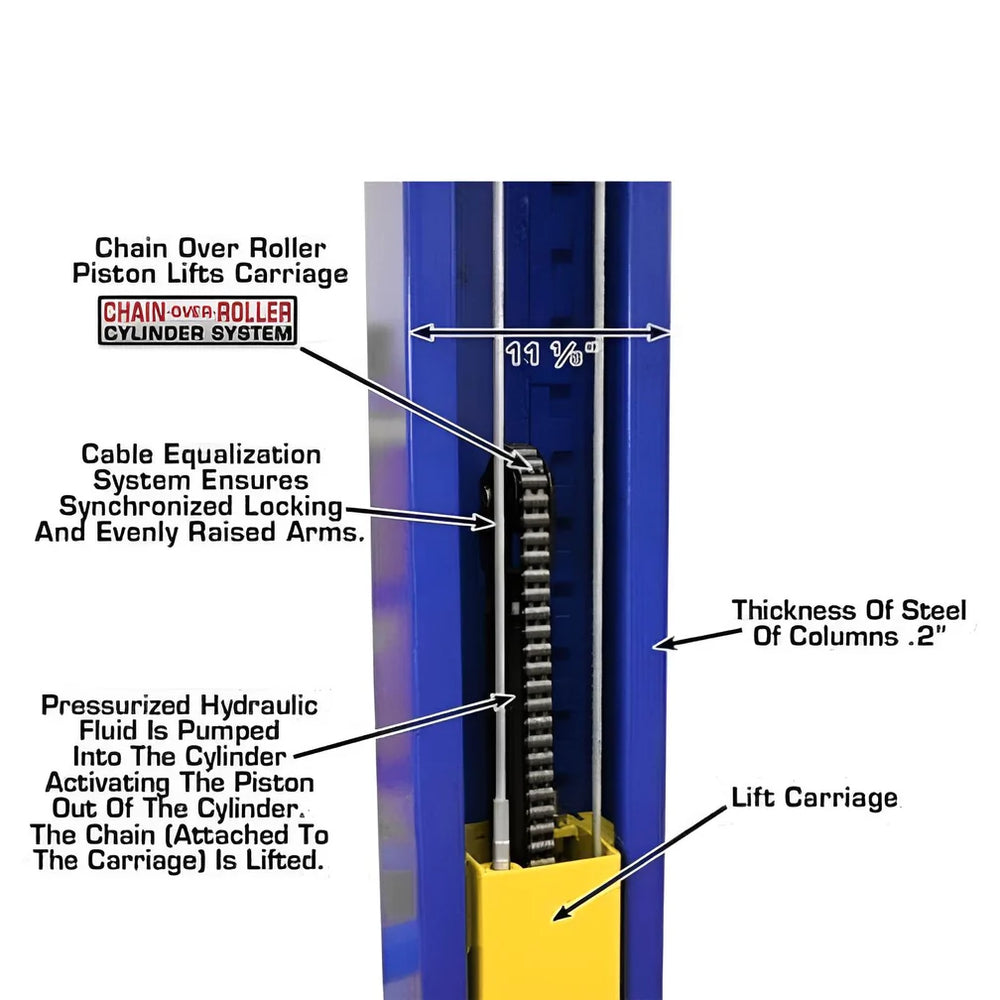

This spring-loaded system is designed to engage if the lifting chain becomes slack or breaks, adding another mechanical safety feature to the chain-over-roller lifting design.

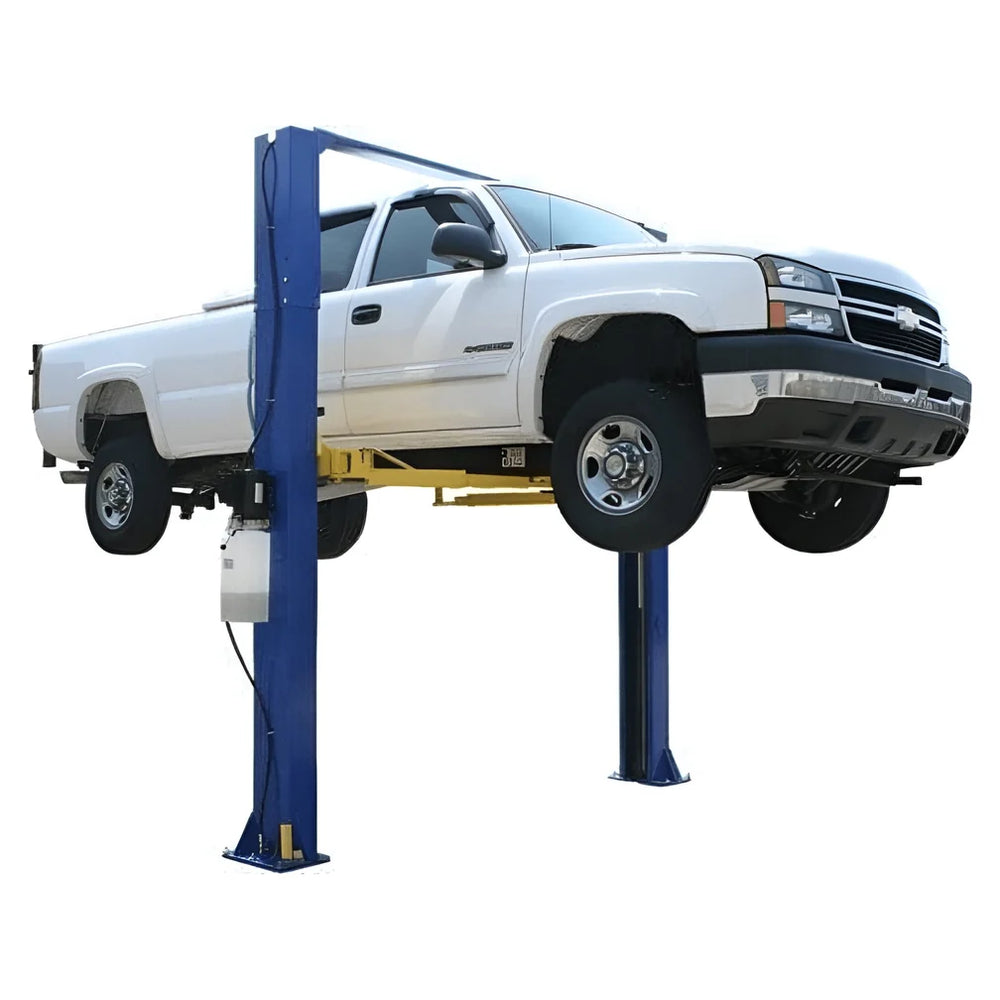

Ready for Cars, SUVs & Light-Duty Trucks

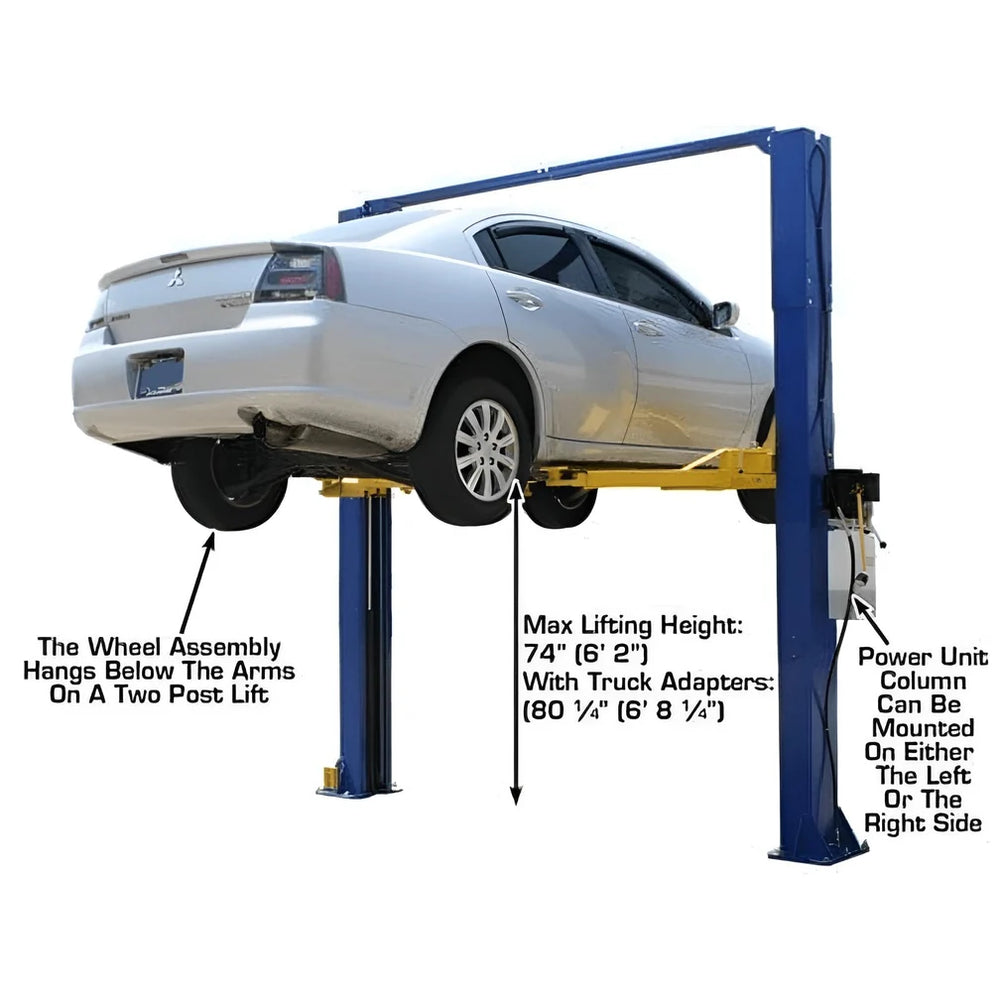

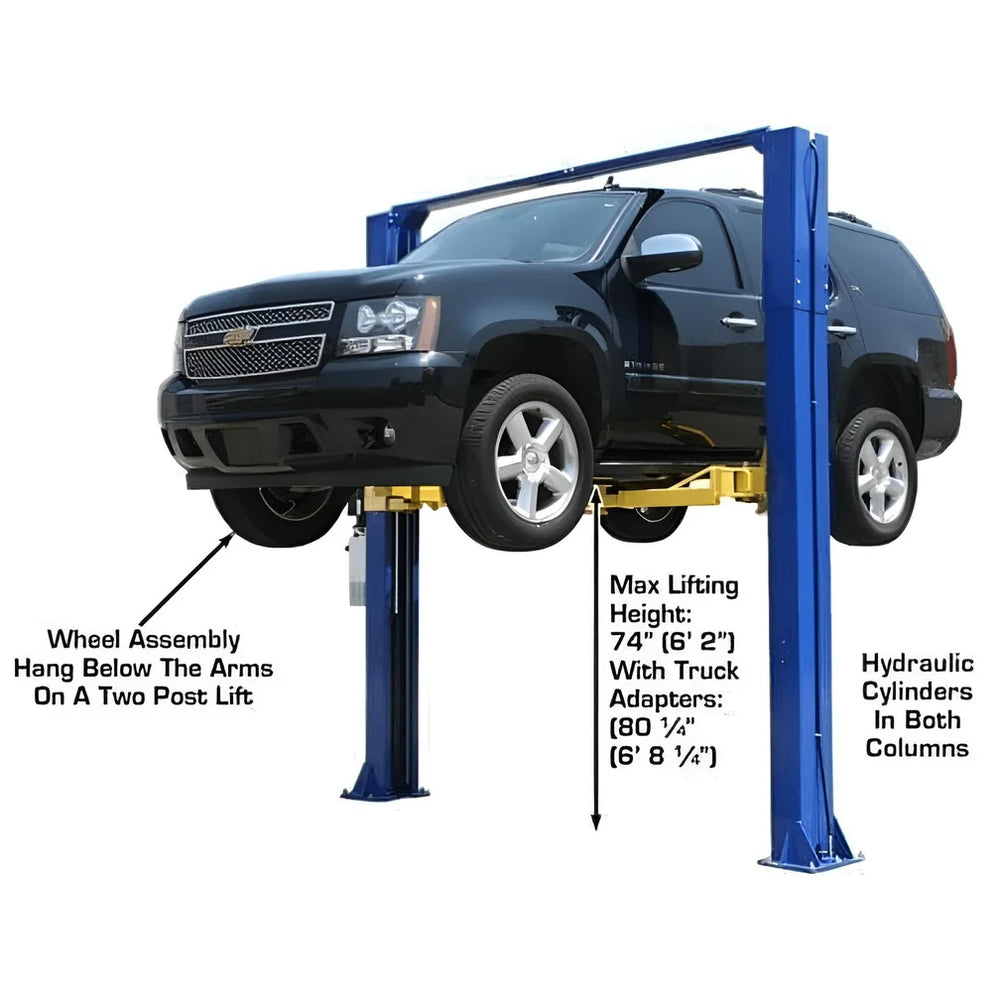

With a maximum lifting height of 74.5 inches without adapters and up to 81 inches with adapters, the 9KOHX provides plenty of room underneath a raised vehicle for maintenance and repairs.

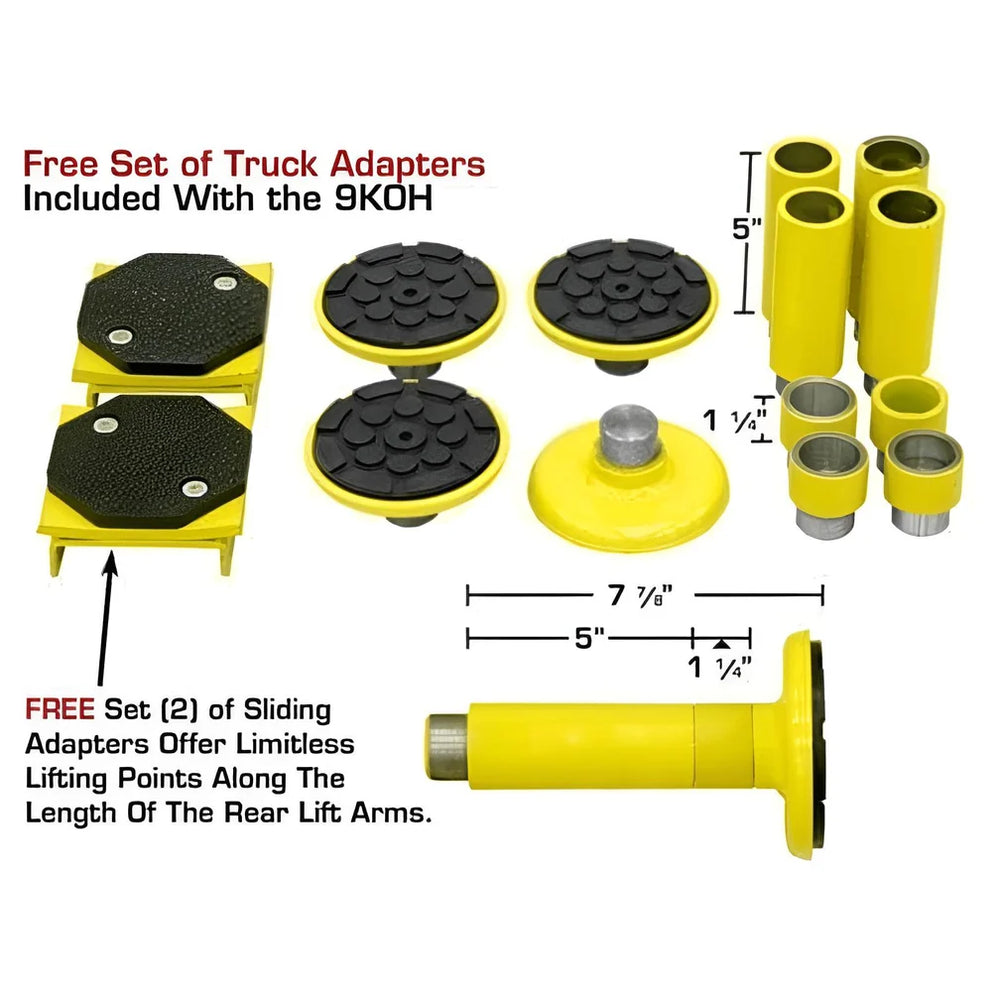

An 8-piece truck adapter set is included along with sliding arm adapters, making it easier to accommodate vehicles with different frame heights and lifting points.

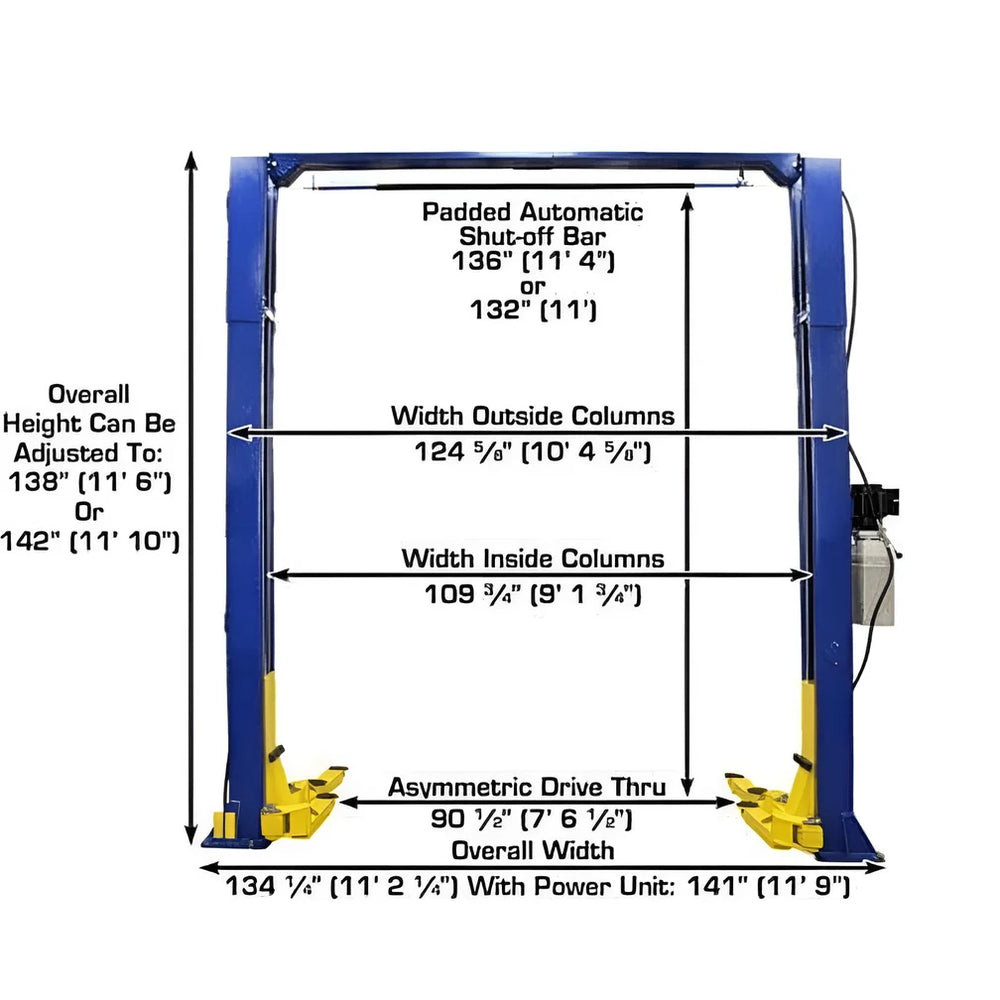

Atlas 9KOHX Specifications
-
Lifting Capacity: 9,000 lbs.
-
Overall Height: 138" (11' 6") or 142" (11' 10")
-
Overall Floor Width: 134.5" (11' 2.5")
-
Outside Column to Outside Column: 124.875" (10' 4.875")
-
Maximum Lift Height Without Adapters: 74.5"
-
Maximum Lift Height With Adapters: 81"
-
Minimum Arm Height: 4"
-
Inside Column Width: 110" (9' 2")
-
Drive-Through Clearance – Symmetric: 100" (8' 4")
-
Drive-Through Clearance – Asymmetric: 90.5" (7' 6.5")
-
Column Size: 7.25" x 11"
-
Column Steel Thickness: 5mm
-
Lift Base: 14.25" x 18"
-
Electrical Requirement: 220V, Single Phase
-
Recommended Breaker: 30 Amp
-
Hydraulic Oil Requirement: 3–5 Gallons AW32/AW46 (Not Included)
-

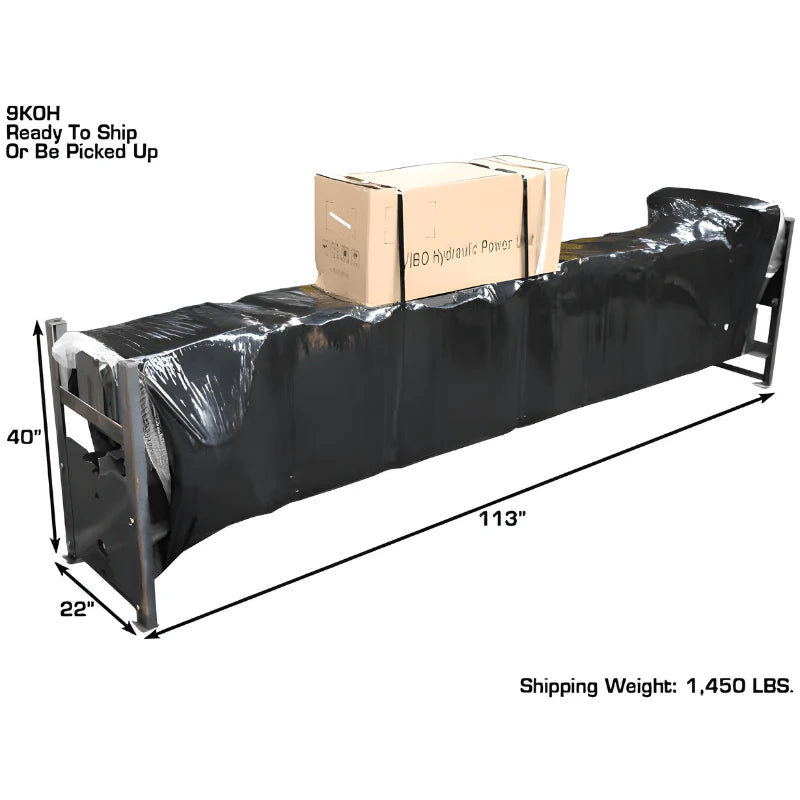

Shipping Weight: Approximately 1,450 lbs.
-
Adapter Heights: Four Each – 1.5" and 5"
-
Arm Hole / Adapter Peg Size: 1.5"
-
Concrete Requirement: Minimum 4" Thick, 3,000 PSI
Key Features
-
9,000 lb Lifting Capacity
-
Overhead Clear-Floor Design
-
138" or 142" Adjustable Height
-
Symmetric / Asymmetric Arm Positioning
-
Automatic Arm Restraints
-
Dual Hydraulic Chain-Drive Cylinders
-
Dual-Point Lock Release
-
Secondary Lock System (SLS)
-
Rubber Carriage Guards
-
Low 4" Minimum Arm Height
-
8-Piece Truck Adapter Set Included
-
Sliding Arm Adapters Included
-

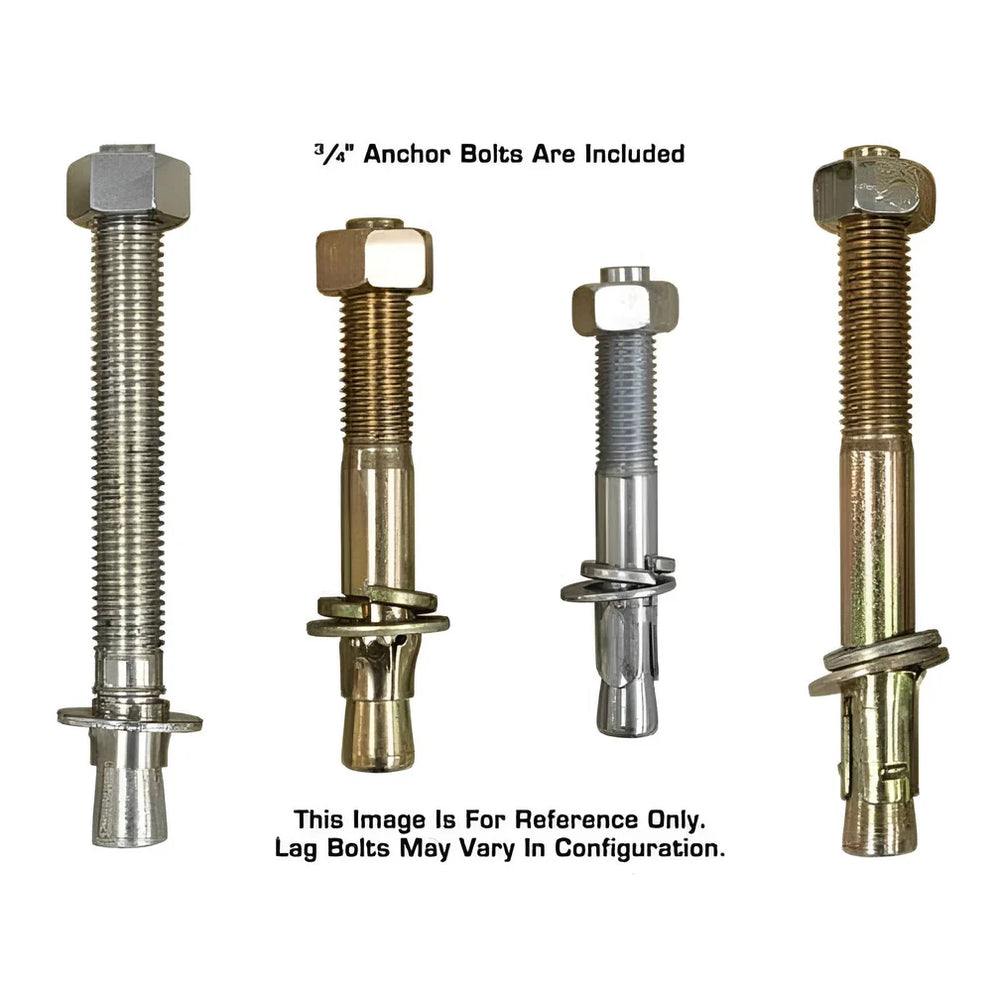

Mounting Hardware Included
-
220V Operation
Warranty
Atlas 9KOH Lift Manual
