Atlas PVL12 12,000 lb 2-Post Lift – ALI Certified, Extra-Wide & Tall

Atlas PVL12 12,000 lb 2-Post Lift – ALI Certified, Extra-Wide & Tall

SKU ATEAP-PVL12
by Atlas
$7,799.00
✅ No Sales Tax (Except Utah)
🛡️ Authorized Atlas Dealer

Product Highlights

  • ALI Certified • 12,000 lb. Commercial Capacity
  • 109.625" Extra-Wide Drive-Through Clearance
  • 3-Stage Arms • Up to 85.5" Lifting Height
Shipping
Availability: ✅ In stock, ready to be shipped
🚚 Ships In:
1–3 Business Days
→
📦 Delivers In:
Estimated 3–7 Days

📞 Better Pricing Available by Phone

Extra Savings

Some pricing we can’t publish online. Call or text and we’ll see what we can do on this lift.

📞 (833) 724-8902
US-based team, no call centers — call or text
Price Match Guarantee Authorized US Retailer Full Manufacturer Warranty

Notify me when back in stock

Atlas Platinum PVL12 12,000 lb ALI-Certified 2-Post Lift

The Atlas Platinum PVL12 12,000 lb 2-Post Lift is a commercial-grade vehicle lift built for professional automotive shops that need the capacity, width, and lifting range to handle everything from passenger cars to larger trucks and vans. With ALI certification, 3-stage symmetric arms, an extra-wide drive-through, and adjustable overhead height, the PVL12 is designed for demanding automotive service applications.

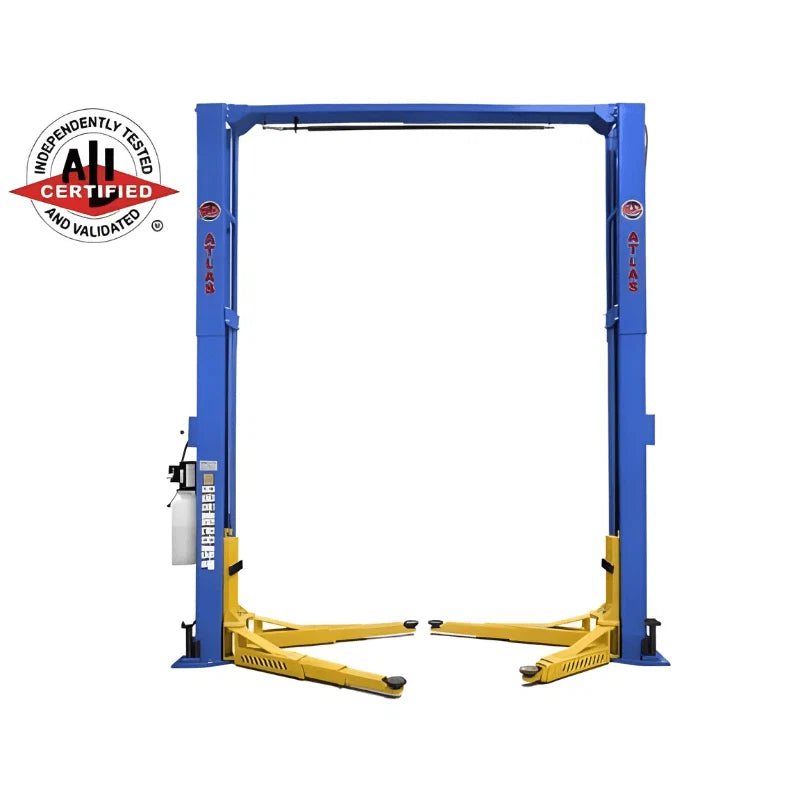

ALI-Certified 12,000 lb Lifting Capacity

With a 12,000 lb lifting capacity, the Atlas Platinum PVL12 provides the strength needed for heavier vehicles while maintaining the versatility required for everyday automotive service.

The lift's 4.5-inch minimum arm height allows access to lower vehicle lifting points, while the included truck adapters provide additional height for pickups, vans, and vehicles with higher frames.

Extra-Wide Drive-Through Clearance

The PVL12 provides 109.625 inches of drive-through clearance and 122.625 inches of space between the columns. This extra width provides additional room when positioning wider trucks, SUVs, vans, and vehicles with larger mirrors.

Its generous overall dimensions make the PVL12 an excellent choice for shops that regularly work with a variety of vehicle sizes.

Adjustable Height for Different Shop Layouts

The Atlas Platinum PVL12 can be installed at an overall height of either 165 inches (13' 9") or 177 inches (14' 9").

The adjustable overhead configuration gives shops greater flexibility when choosing an installation height based on available ceiling space and the types of vehicles being serviced.

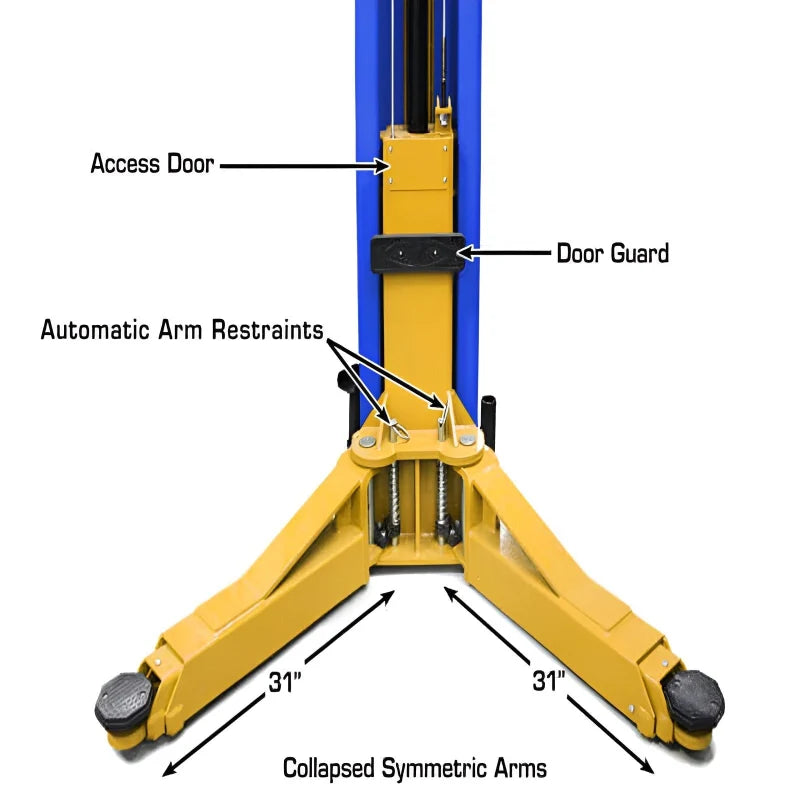

3-Stage Symmetric Arms

The PVL12 features 3-stage symmetric lifting arms designed to provide additional reach and flexibility when accessing vehicle lifting points.

With a maximum lifting height of 73.625 inches without adapters and up to 85.5 inches with adapters, the PVL12 provides substantial under-vehicle working clearance for maintenance and repair.

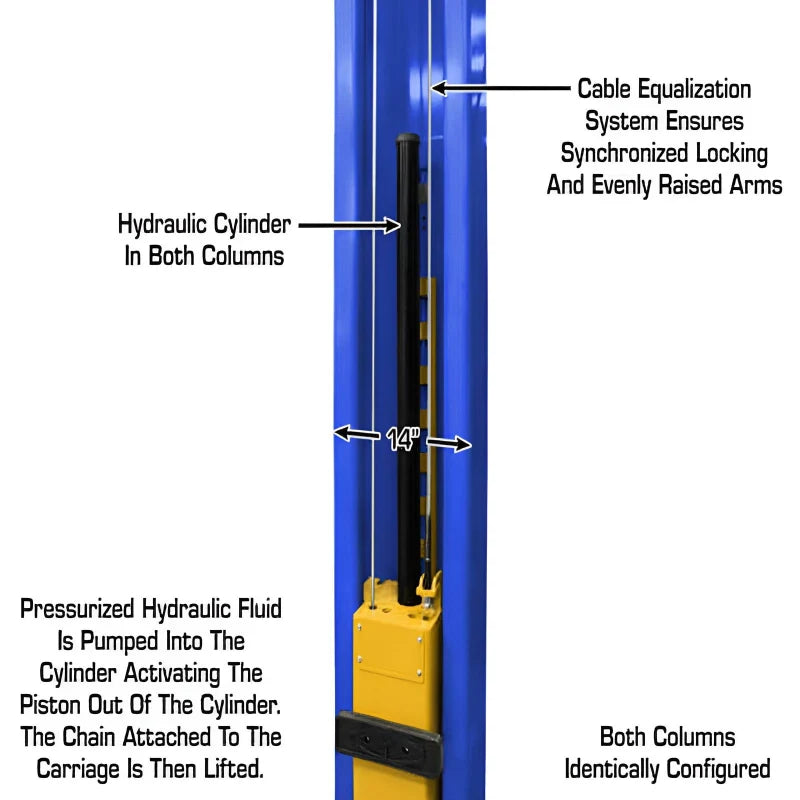

Direct-Drive Hydraulic System

The Atlas Platinum PVL12 utilizes direct-drive hydraulic cylinders for dependable lifting performance. Automatic arm restraints help secure the arms after the vehicle is raised, while a single-point lock release provides convenient operation when preparing to lower the lift.

A padded overhead shut-off bar provides additional protection when raising taller vehicles.

Premium ALLY Power Unit

The PVL12 comes standard with a premium ALLY hydraulic power unit. The power unit is MET certified for applicable electrical requirements in the United States and Canada and is designed for dependable performance in professional automotive service environments.

Atlas Platinum PVL12 Specifications

Key Features

Warranty

Atlas PVL12 Manual

*- Contact Us For Pick Up

Warehouse Pickup locations (No shipping charge):



Simply browse our products, select your options, and click Add to Cart. You can checkout securely using a credit card, Shop Pay, PayPal, or other payment options. If you have questions before ordering, call or text us at (833) 724-8902.
We accept Visa, MasterCard, American Express, Discover, Shop Pay, Apple Pay, Google Pay, and PayPal. Shop Pay Installments is also available, allowing you to split your purchase into monthly payments.
Yes. Call or text us at (833) 724-8902 and our team will walk you through the order process and answer any questions about the equipment.
Yes. Shop Pay Installments is available at checkout on qualifying orders. You can split your purchase into manageable monthly payments. The monthly estimate is shown on each product page.
You will receive an order confirmation email immediately after purchase. Your order will be processed and shipped within 1 to 3 business days. Once shipped, you will receive a tracking number via email.
Orders ship within 1 to 3 business days from our US warehouses. Estimated delivery is typically 3 to 7 business days depending on your location. Shipping estimates are approximate and may vary by carrier.
Shipping costs vary by product and are shown at checkout before you complete your purchase. Some products include free warehouse pickup options at our US locations.
We ship from US warehouses located in California, Texas, Georgia, Illinois, Michigan, and New Jersey. Your order ships from the warehouse closest to your delivery address.
Yes. Free warehouse pickup is available at the following locations: Azusa CA, City of Industry CA, Brookshire TX, Deer Park TX, Kalamazoo MI, Linden NJ, Pooler GA, and Romeoville IL. Contact us at (833) 724-8902 to arrange pickup.
Large equipment like car lifts ships via freight carrier on a flatbed or LTL truck. You are responsible for unloading the equipment at delivery. A forklift or equivalent equipment is required. The driver is not permitted to wait during manual unloading. The freight company will contact you in advance to schedule delivery.
Currently we ship within the continental United States only. For inquiries about shipments outside the 48 contiguous states please contact us directly.
We offer a 30-day return policy on qualifying products. Items must be unused, in original condition, and in original packaging. Please contact us at Support@elitegaragetools.com or (833) 724-8902 to initiate a return.
Inspect your shipment carefully before signing for delivery. If damage is visible, note it on the delivery receipt and take photos immediately. Contact us within 48 hours of delivery so we can assist with a claim. Do not refuse the shipment — accepting with noted damage is the correct procedure.
Restocking fees may apply depending on the product and condition. Contact us before returning any item and we will walk you through the process and any applicable fees.
Return shipping costs are the responsibility of the customer unless the return is due to a defect or error on our part. For heavy freight items, return shipping costs can be significant. Please contact us before placing your order if you have concerns.
Yes. Elite Garage Tools is an authorized US retailer for all brands we carry including Atlas Automotive, Katool, Tuxedo, AMGO, and iDEAL. All products are authentic, covered by manufacturer warranty, and ship from within the United States.
Yes. If you find a lower total price from another authorized US retailer on the same product, we will match it. Contact us with the competitor's listing and we will verify and match the price. See our full Price Match Guarantee policy for details.
The right lift depends on your ceiling height, vehicle weight, and intended use. Most residential garages with standard 10 to 12 ft ceilings work well with a 2-post or 4-post lift. We recommend calling us at (833) 724-8902 so our team can help you select the right equipment for your specific situation.
Most car lifts require a minimum concrete thickness of 4 to 6 inches with a PSI rating of at least 3,000. Specific requirements are listed on each product page. It is the customer's responsibility to verify concrete thickness and strength prior to installation.
Once your order ships you will receive a tracking number via email. For freight shipments, the carrier will contact you directly to schedule a delivery appointment. If you have not received tracking information within 3 business days of ordering, contact us at Support@elitegaragetools.com.
Open and inventory all packages within 48 hours of delivery. If any parts are missing, contact us immediately at (833) 724-8902 or Support@elitegaragetools.com with your order number and a list of missing items. Timely notification is required for us to resolve the issue.
Each product ships with a detailed installation manual. For additional installation questions contact us at (833) 724-8902.
Contact our support team at (833) 724-8902 or Support@elitegaragetools.com. Have your order number ready. For warranty issues, do not disassemble the equipment before speaking with us as this may affect warranty eligibility.
Yes. All products include manufacturer warranty coverage. Coverage varies by brand: Katool includes 1-year parts warranty plus 3-year structural warranty on vehicle lifts. AMGO includes 5-year structural, 3-year hydraulic, and 2-year electrical coverage. Tuxedo and iDEAL include 5-year structural and 1-year parts warranty. Specific warranty terms are listed on each product page.
Contact us at (833) 724-8902) or Support@elitegaragetools.com with your order number and a description of the issue. Photos or video of the defect are typically required. Do not disassemble equipment prior to claim approval as this may void warranty coverage.
Yes. Replacement parts are available for all brands we carry. Out of warranty parts can be purchased. Contact us for availability and pricing.

Can't find what you're looking for? Our team is here to help.

Call or Text: (833) 724-8902  |  Support@elitegaragetools.com

🔍 Not Sure Which Lift Is Right For You?

Answer 6 quick questions and we'll match you with the perfect lift for your garage.

Take the Lift Finder Quiz →
Description

Atlas Platinum PVL12 12,000 lb ALI-Certified 2-Post Lift

The Atlas Platinum PVL12 12,000 lb 2-Post Lift is a commercial-grade vehicle lift built for professional automotive shops that need the capacity, width, and lifting range to handle everything from passenger cars to larger trucks and vans. With ALI certification, 3-stage symmetric arms, an extra-wide drive-through, and adjustable overhead height, the PVL12 is designed for demanding automotive service applications.

ALI-Certified 12,000 lb Lifting Capacity

With a 12,000 lb lifting capacity, the Atlas Platinum PVL12 provides the strength needed for heavier vehicles while maintaining the versatility required for everyday automotive service.

The lift's 4.5-inch minimum arm height allows access to lower vehicle lifting points, while the included truck adapters provide additional height for pickups, vans, and vehicles with higher frames.

Extra-Wide Drive-Through Clearance

The PVL12 provides 109.625 inches of drive-through clearance and 122.625 inches of space between the columns. This extra width provides additional room when positioning wider trucks, SUVs, vans, and vehicles with larger mirrors.

Its generous overall dimensions make the PVL12 an excellent choice for shops that regularly work with a variety of vehicle sizes.

Adjustable Height for Different Shop Layouts

The Atlas Platinum PVL12 can be installed at an overall height of either 165 inches (13' 9") or 177 inches (14' 9").

The adjustable overhead configuration gives shops greater flexibility when choosing an installation height based on available ceiling space and the types of vehicles being serviced.

3-Stage Symmetric Arms

The PVL12 features 3-stage symmetric lifting arms designed to provide additional reach and flexibility when accessing vehicle lifting points.

With a maximum lifting height of 73.625 inches without adapters and up to 85.5 inches with adapters, the PVL12 provides substantial under-vehicle working clearance for maintenance and repair.

Direct-Drive Hydraulic System

The Atlas Platinum PVL12 utilizes direct-drive hydraulic cylinders for dependable lifting performance. Automatic arm restraints help secure the arms after the vehicle is raised, while a single-point lock release provides convenient operation when preparing to lower the lift.

A padded overhead shut-off bar provides additional protection when raising taller vehicles.

Premium ALLY Power Unit

The PVL12 comes standard with a premium ALLY hydraulic power unit. The power unit is MET certified for applicable electrical requirements in the United States and Canada and is designed for dependable performance in professional automotive service environments.

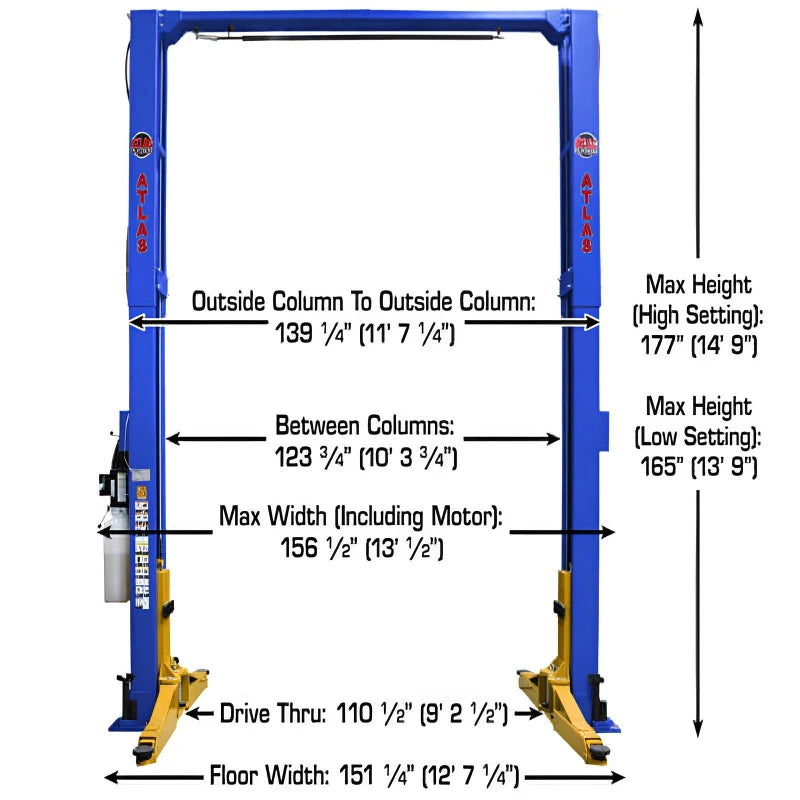

Atlas Platinum PVL12 Specifications

  • Lifting Capacity: 12,000 lbs.

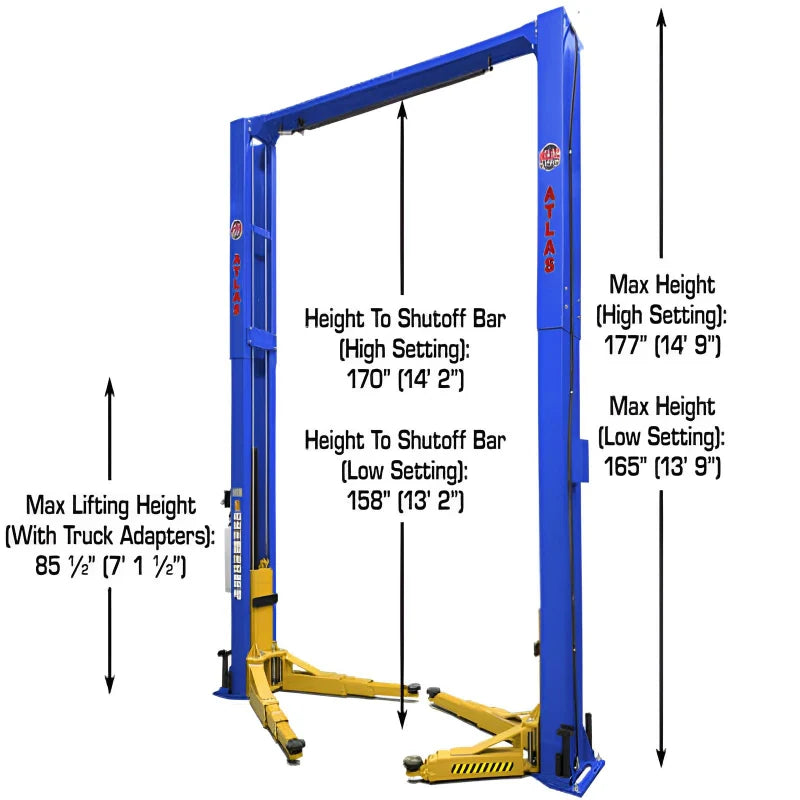

  • Overall Height: 165" (13' 9") or 177" (14' 9")

  • Overall Floor Width: 150.375" (12' 6.375")

  • Outside Column to Outside Column: 139.125" (11' 7.125")

  • Maximum Lift Height Without Adapters: 73.625"

  • Maximum Lift Height With Adapters: 85.5"

  • Minimum Arm Height: 4.5"

  • Inside Column Width: 122.625" (10' 2.625")

  • Drive-Through Clearance: 109.625" (9' 1.625")

  • Column Size: 7.5" x 14.5"

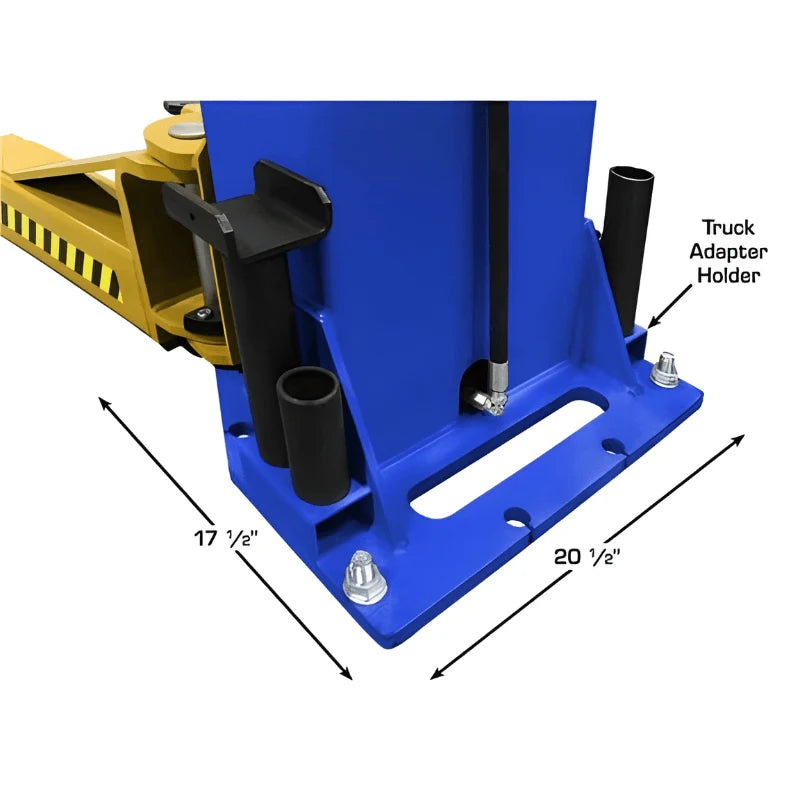

  • Lift Base: 17.5" x 20.5"

  • Electrical Requirement: 220V, Single Phase

  • Recommended Breaker: 30 Amp

  • Hydraulic Oil Requirement: 3–5 Gallons AW32/AW46 (Not Included)

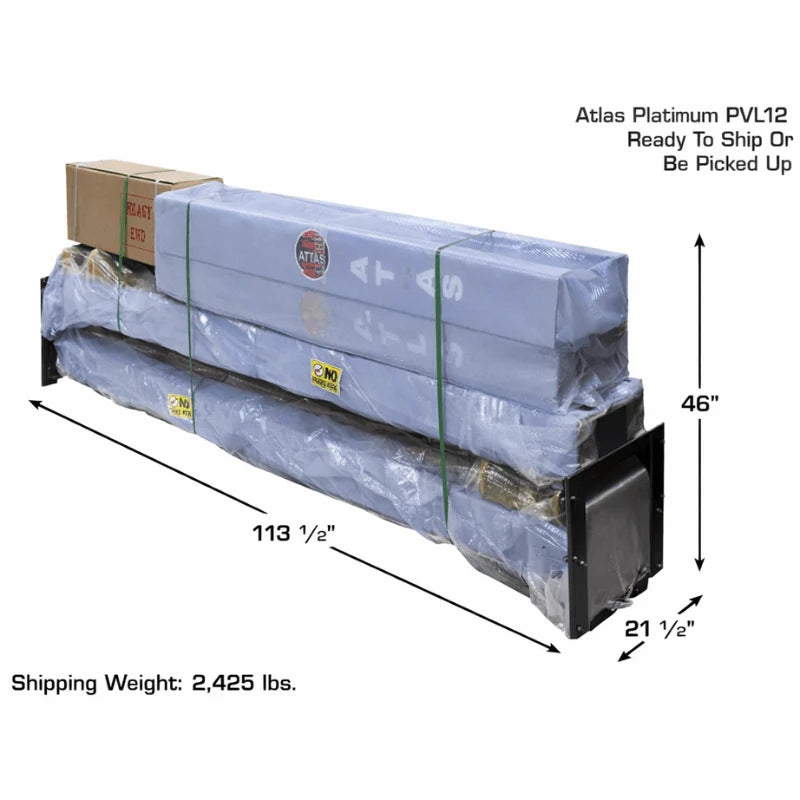

  • Shipping Weight: Approximately 2,425 lbs.

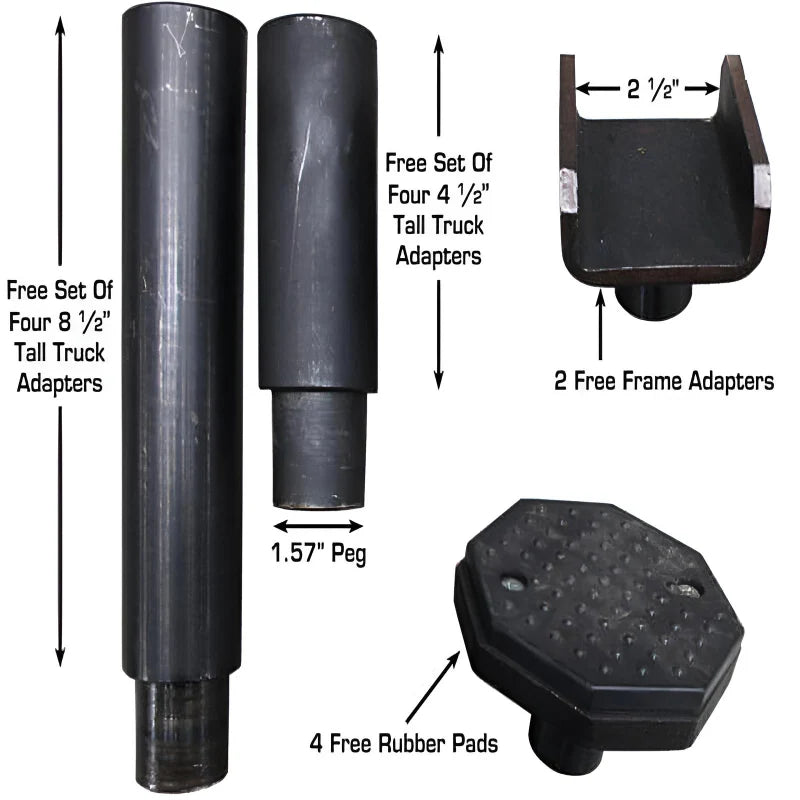

  • Adapter Heights: Four Each – 4.5" and 8.5"

  • Arm Hole / Adapter Peg Size: 1.57"

  • Concrete Requirement: Minimum 6" Thick, 3,000 PSI

Key Features

  • ALI-Certified Lift

  • 12,000 lb Lifting Capacity

  • Commercial-Grade Construction

  • Extra-Tall & Extra-Wide Design

  • 165" or 177" Adjustable Overall Height

  • 109.625" Drive-Through Clearance

  • 3-Stage Symmetric Arms

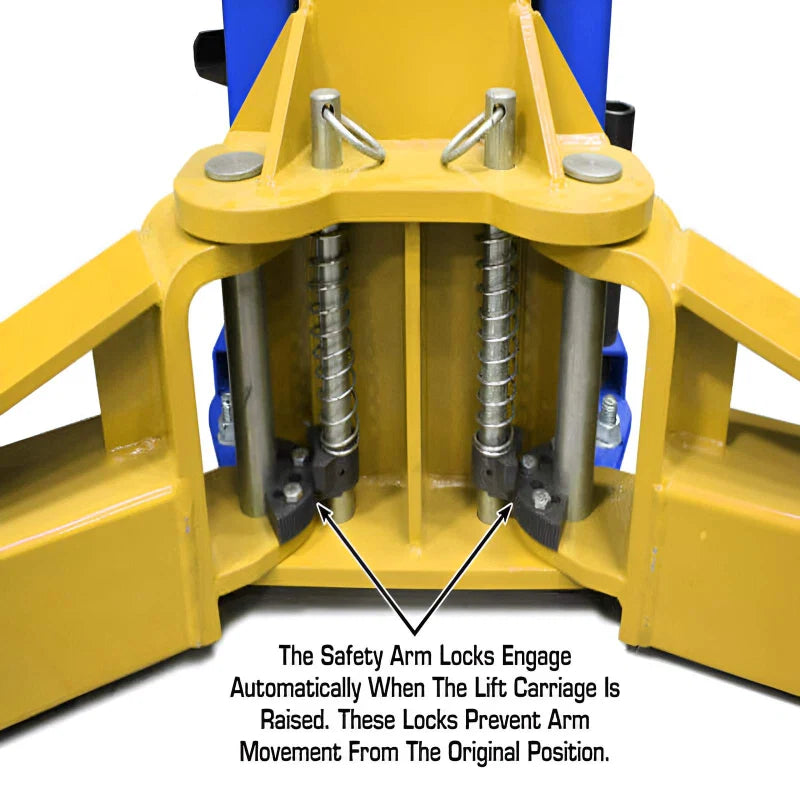

  • Automatic Arm Restraints

  • Direct-Drive Hydraulic Cylinders

  • Single-Point Lock Release

  • Padded Overhead Shut-Off Bar

  • Thick Rubber Carriage Door Guards

  • Powder-Coat Finish

  • 8-Piece Truck Adapter Set Included

  • Mounting Hardware Included

  • Premium ALLY Power Unit

Warranty

  • 5-Year Structural Warranty

  • 2-Year Hydraulic Warranty

  • 2-Year Power Unit Warranty

Atlas PVL12 Manual
