Atlas Garage PRO9000 9,000 lb 4-Post Lift
The Atlas Garage PRO9000 9,000 lb 4-Post Lift is a heavy-duty, freestanding vehicle lift designed for home garages, automotive enthusiasts, collectors, and shops that need additional capacity, height, and runway length. Its extra-tall, extra-wide, and extra-long design provides the space needed to accommodate everything from passenger cars to larger trucks and long-wheelbase vehicles.
With a 9,000 lb lifting capacity, 199.5-inch runways, and up to 80.25 inches of clearance underneath the runways, the PRO9000 is a versatile solution for both vehicle storage and automotive service.
Extra-Long & Extra-Wide Design
The Atlas Garage PRO9000 features 199.5-inch-long runways and accommodates vehicle wheelbases up to 187 inches. The additional runway length makes this 4-post lift especially useful for longer pickups, SUVs, and extended-wheelbase vehicles.
A generous 97.25-inch drive-through clearance and 110.5 inches of clearance between the columns also provide additional room when positioning wider vehicles onto the lift.
Extra-Tall for Vehicle Storage & Service
With a lifting height of 85 inches to the top of the runways and approximately 80.25 inches of clearance underneath, the PRO9000 provides substantial usable space below a raised vehicle.
The added height makes the lift an excellent option for homeowners looking to maximize garage storage while also providing the under-vehicle access needed for maintenance and repair work.
Portable Freestanding Design

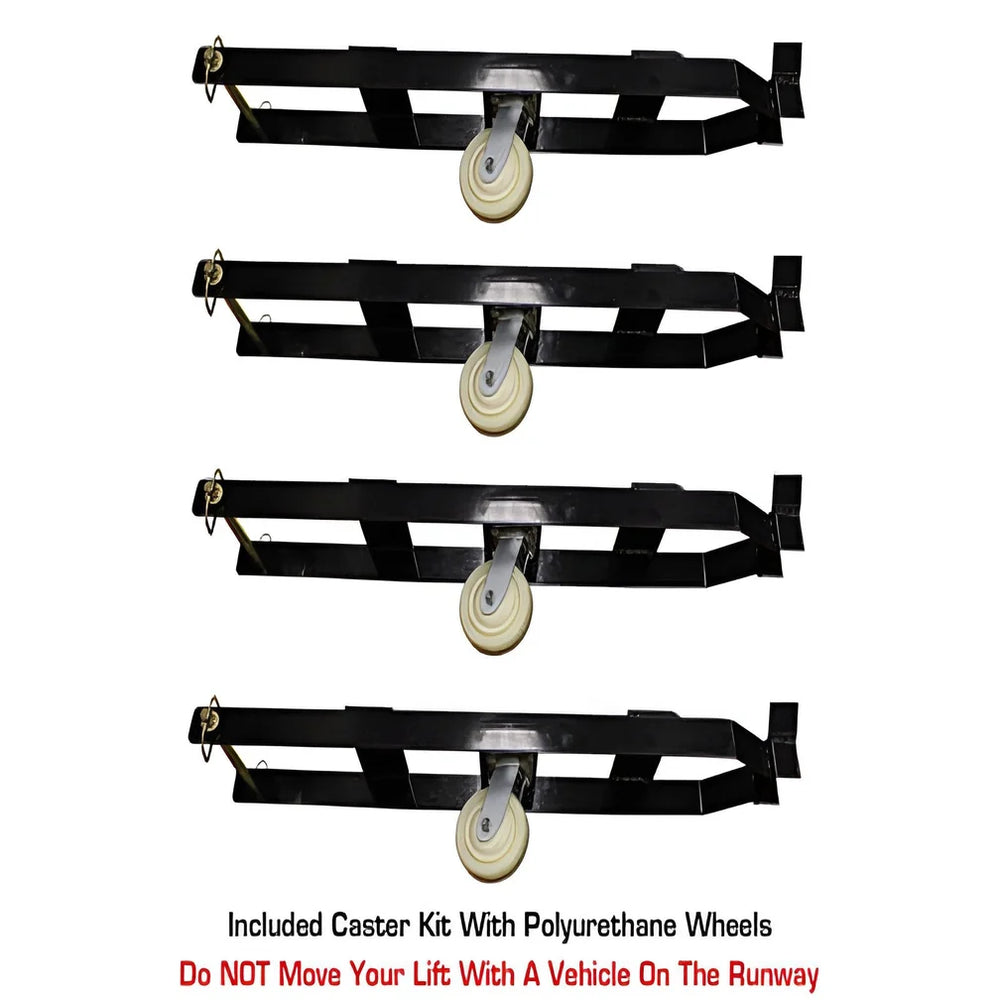

The PRO9000 includes a caster kit with polyurethane wheels, giving owners the ability to reposition the lift when needed. The caster kit can be installed or removed, providing additional flexibility when arranging your garage or workspace.
Its freestanding design makes the PRO9000 an attractive option for customers who want the capabilities of a heavy-duty 4-post lift with added portability.
Built for More Than Vehicle Storage
Integrated tracks between the runways allow the PRO9000 to accommodate a compatible rolling bridge jack, providing additional versatility for jobs that require the vehicle's wheels to be raised off the runways.
This makes the lift useful for brake, tire, suspension, and other wheel-service applications when properly equipped with a compatible bridge jack.
Included Accessories
The Atlas Garage PRO9000 comes equipped with several useful accessories:
Atlas Garage PRO9000 Specifications
-
Lifting Capacity: 9,000 lbs.
-

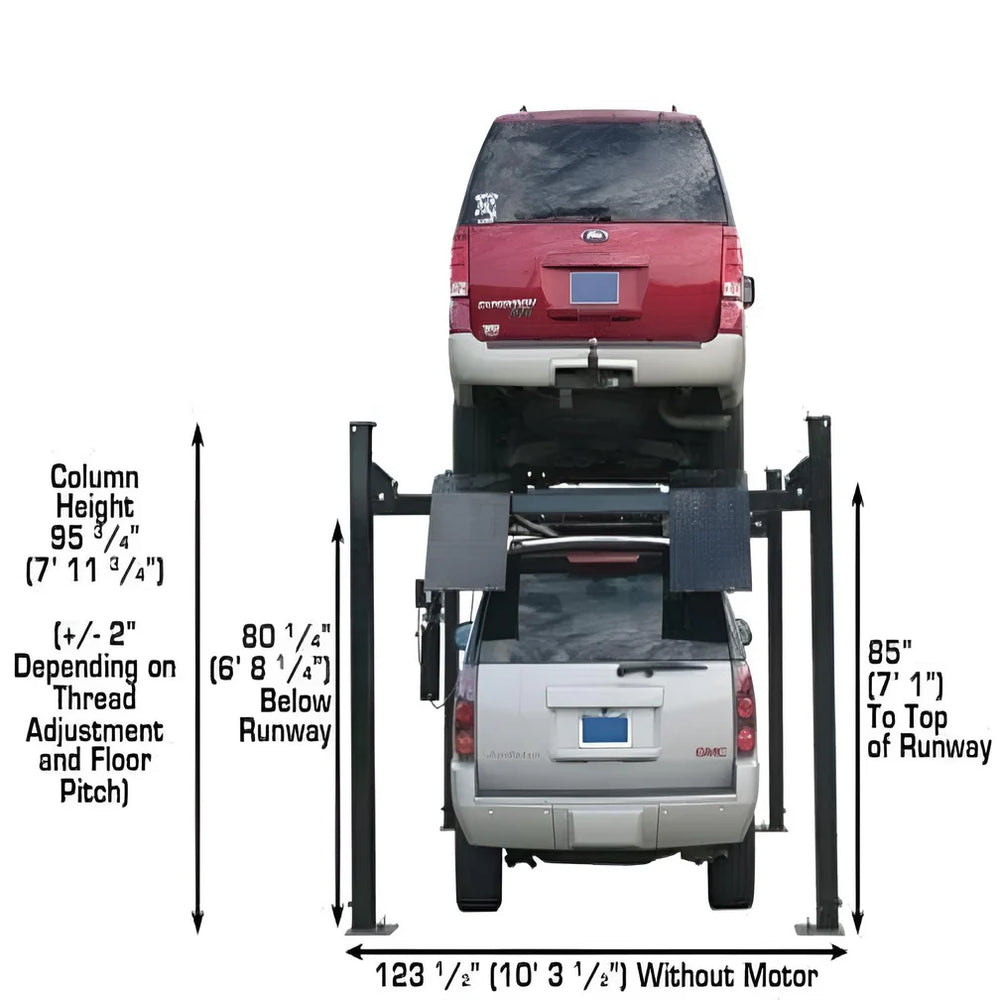

Lifting Height to Top of Runway: 85" (7' 1")
-
Clearance Under Runways: 80.25" (6' 8.25")
-

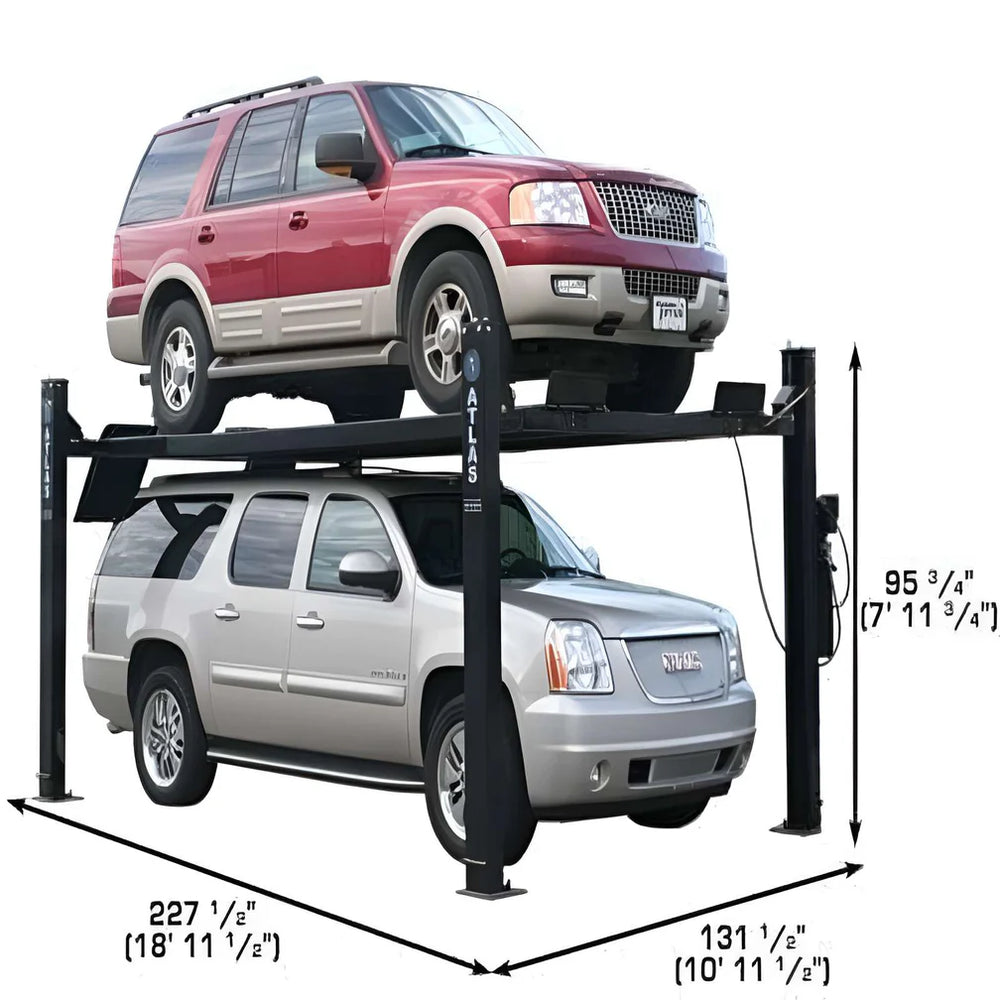

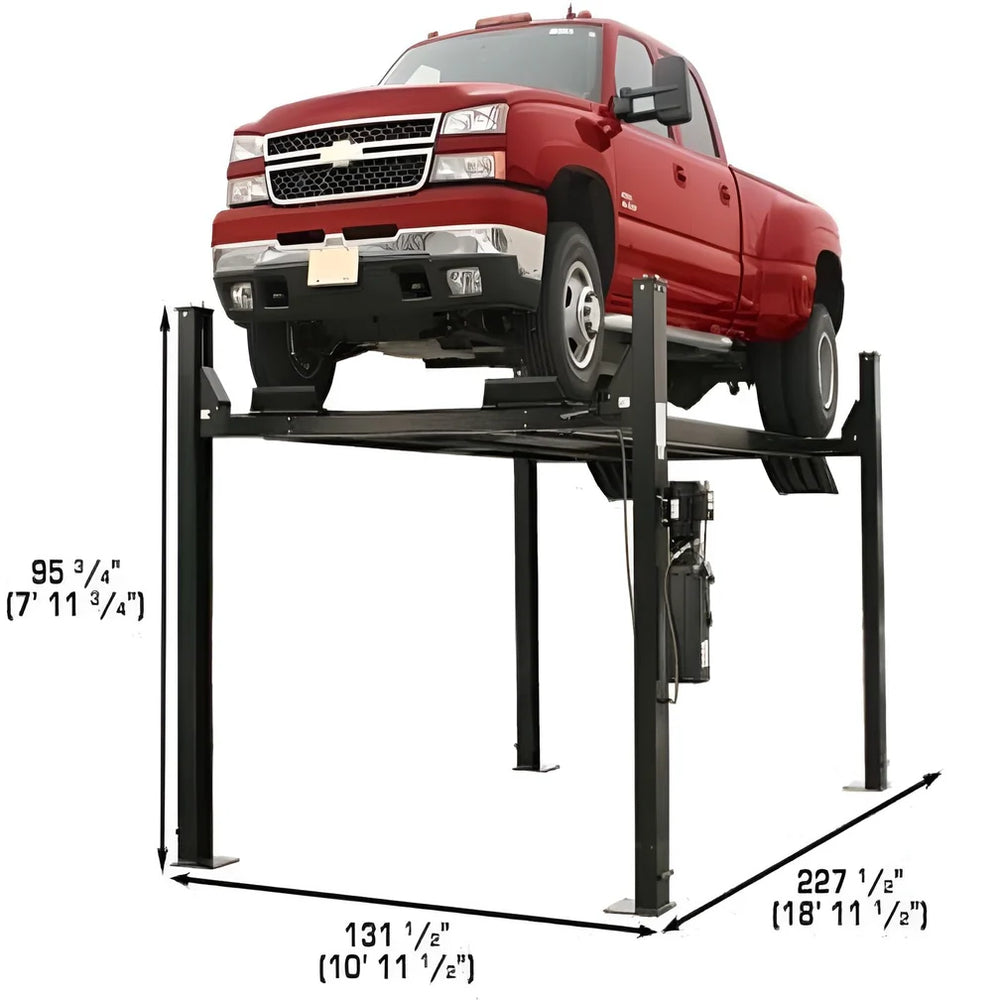

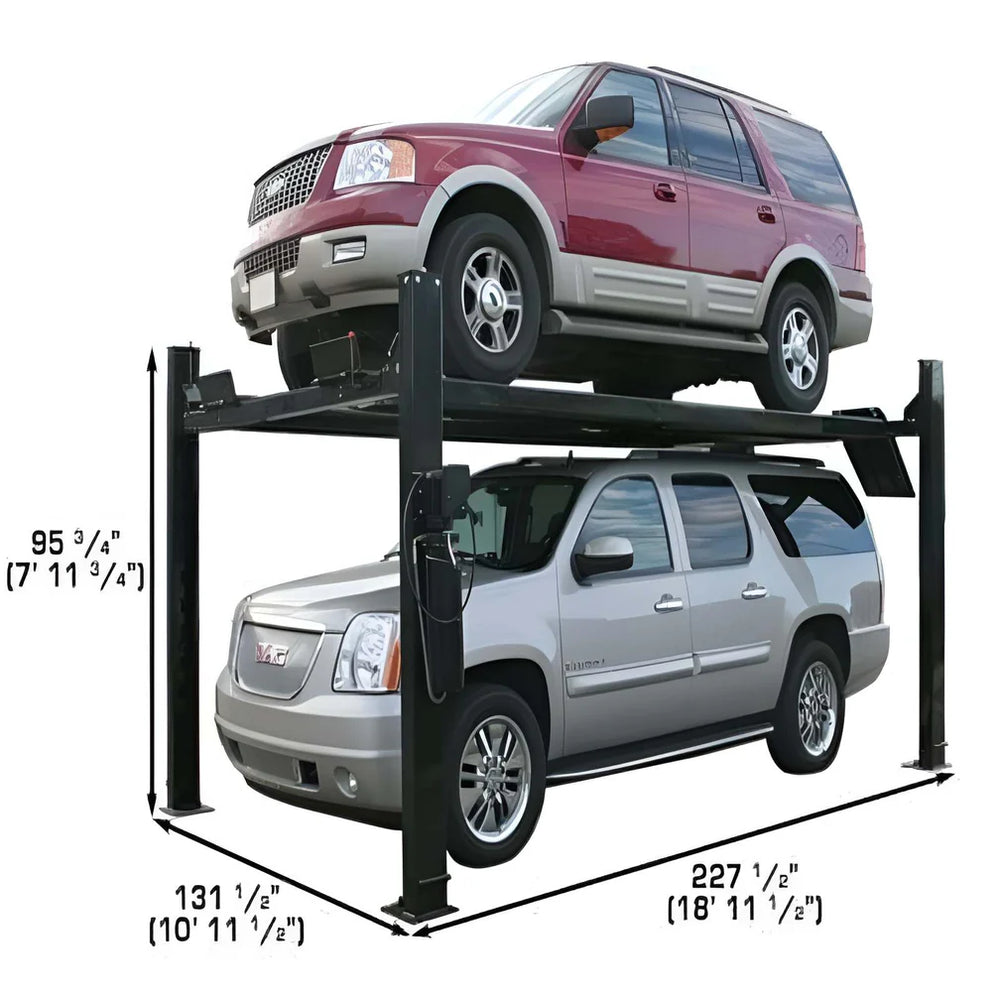

Column Height: 95.75" (7' 11.75")
-
Overall Width Without Motor: 123.5" (10' 3.5")
-

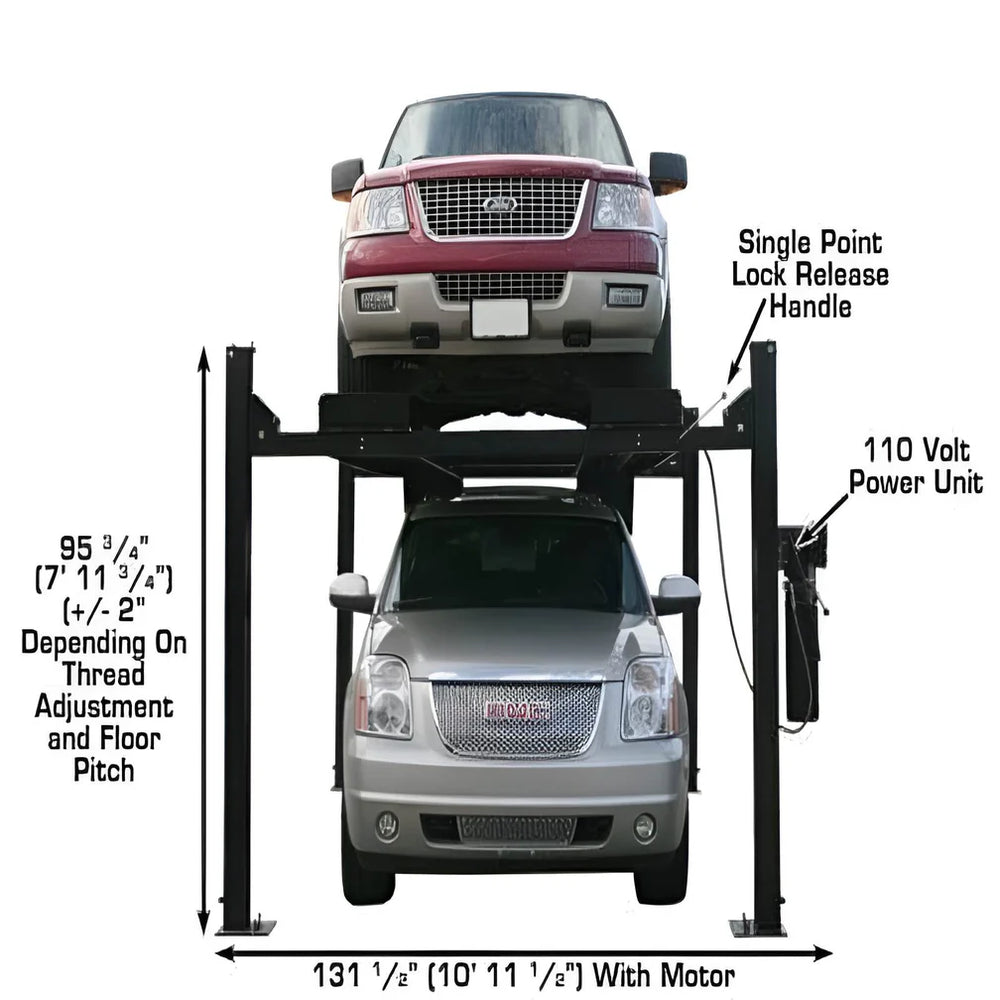

Overall Width With Motor: 131.5" (10' 11.5")
-

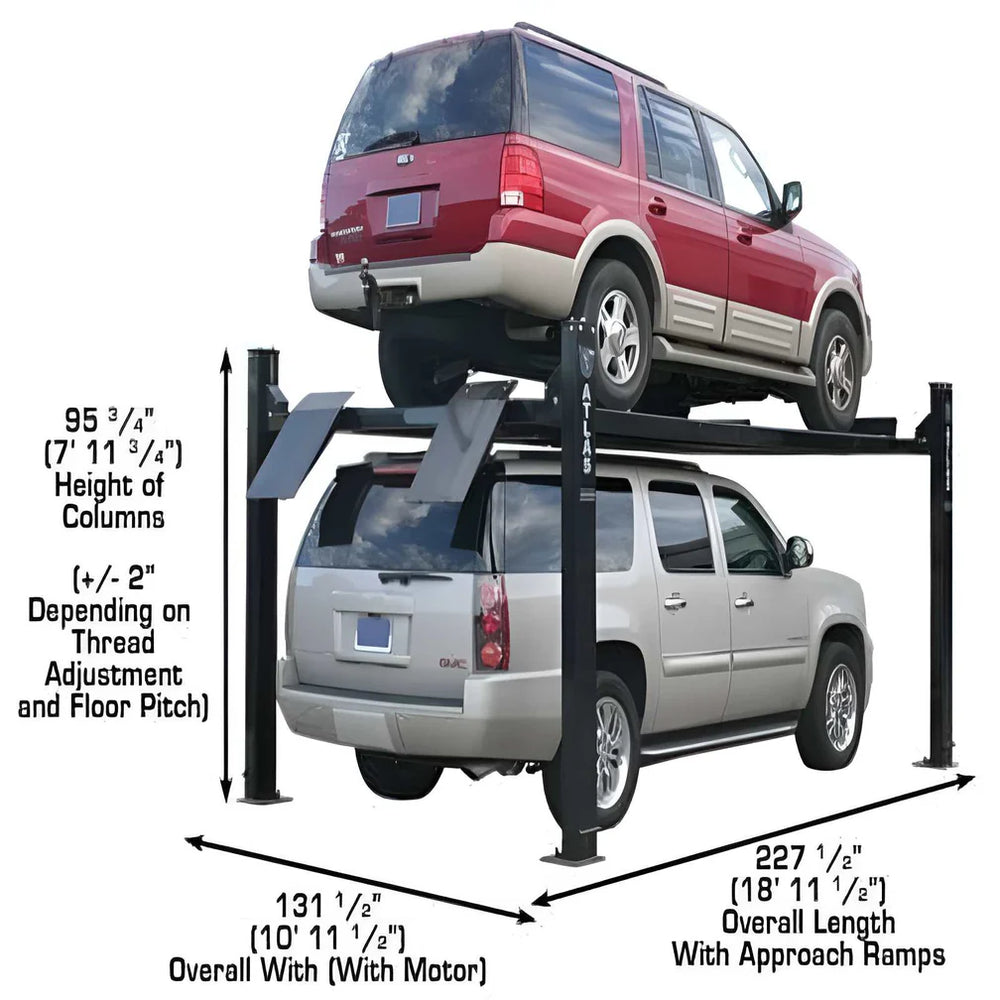

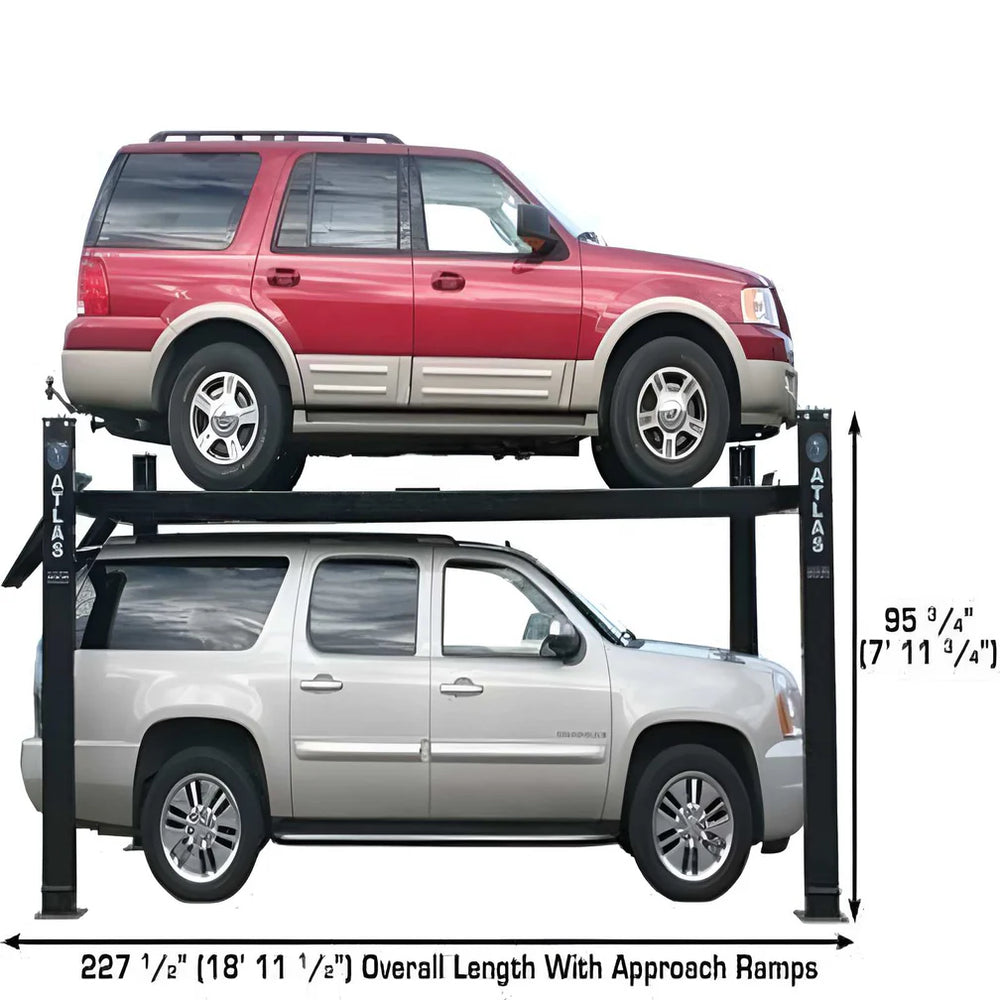

Overall Length With Approach Ramp: 227.5" (18' 11.5")
-
Approach Ramp Length: 31"
-
Runway Width With Rails: 21.25"
-
Runway Driving Surface: 20"
-
Runway Length: 199.5" (16' 7.5")
-
Runway Thickness: 4.75"
-
Width Between Runways: 39.25"
-
Width Between Runway Rails: 35.5"
-
Outside Runway to Outside Runway: 79"
-
Clearance Between Columns: 110.5" (9' 2.5")
-
Length Between Columns: 184.5" (15' 4.5")
-
Maximum Wheelbase: 187" (15' 7")
-
Drive-Through Clearance: 97.25" (8' 1.25")
-
Electrical Requirement: 110V
-
Breaker Requirement: 30 Amp
-
Shipping Weight: Approximately 2,300 lbs.
Key Features
-
9,000 lb Lifting Capacity
-
Extra-Tall, Extra-Wide & Extra-Long Design
-
Freestanding 4-Post Configuration
-
Portable Design
-
Single-Point Lock Release
-
Lock Ladder Design
-
Double-Lock Safety System
-
Caster Kit With Polyurethane Wheels Included
-
Compatible With a Rolling Bridge Jack
-
Steel Approach Ramps Included
-
Steel Jack Tray Included
-
4 Plastic Drip Trays Included
-
2 Rubber Wheel Chocks Included
-
110V Electrical Operation
-
Designed for Vehicle Storage, Maintenance & Repair
Optional Accessories for the PRO9000
Accessories listed below are available separately.
- Atlas RJ6BK 6,000 lb Rolling Bridge Jack
- Atlas PROJACK35 Sliding Bridge Jack
- Atlas RJ45 4,500lb Rolling Jack
Warranty
Atlas Garage Pro9000 Manual
