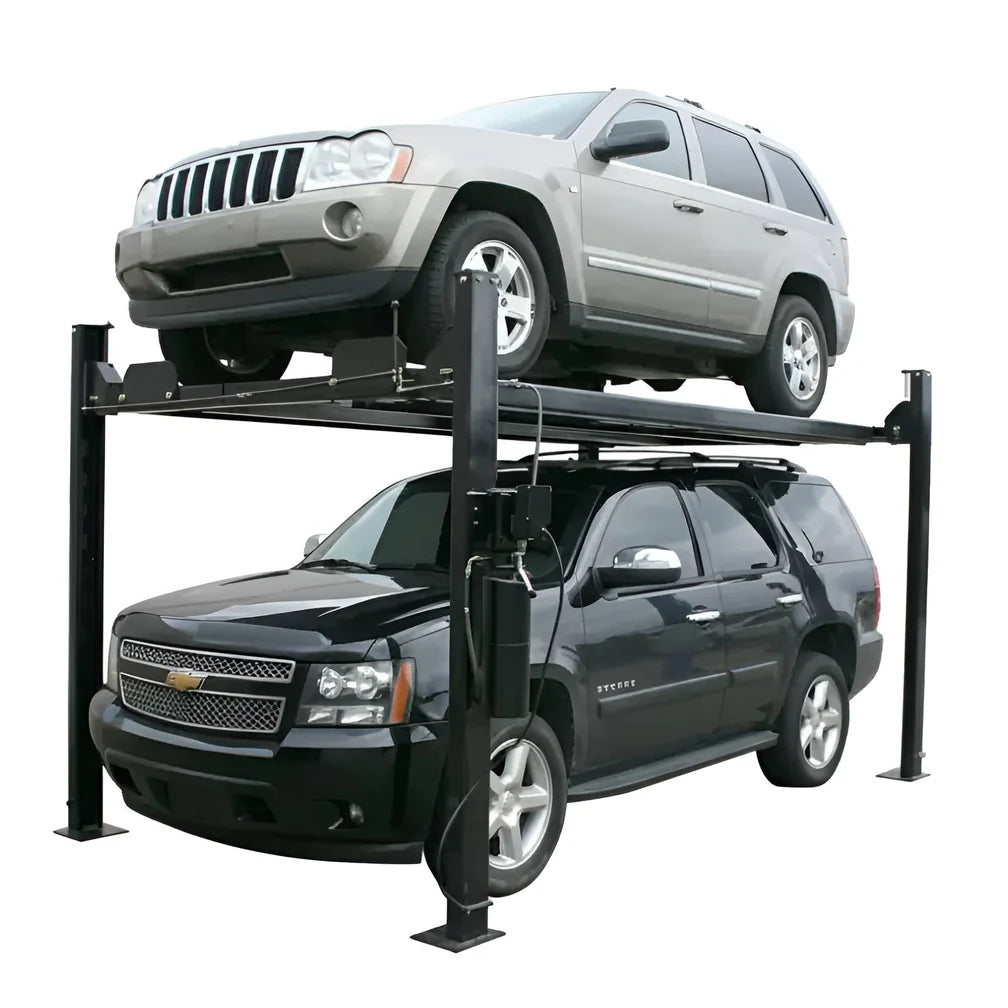

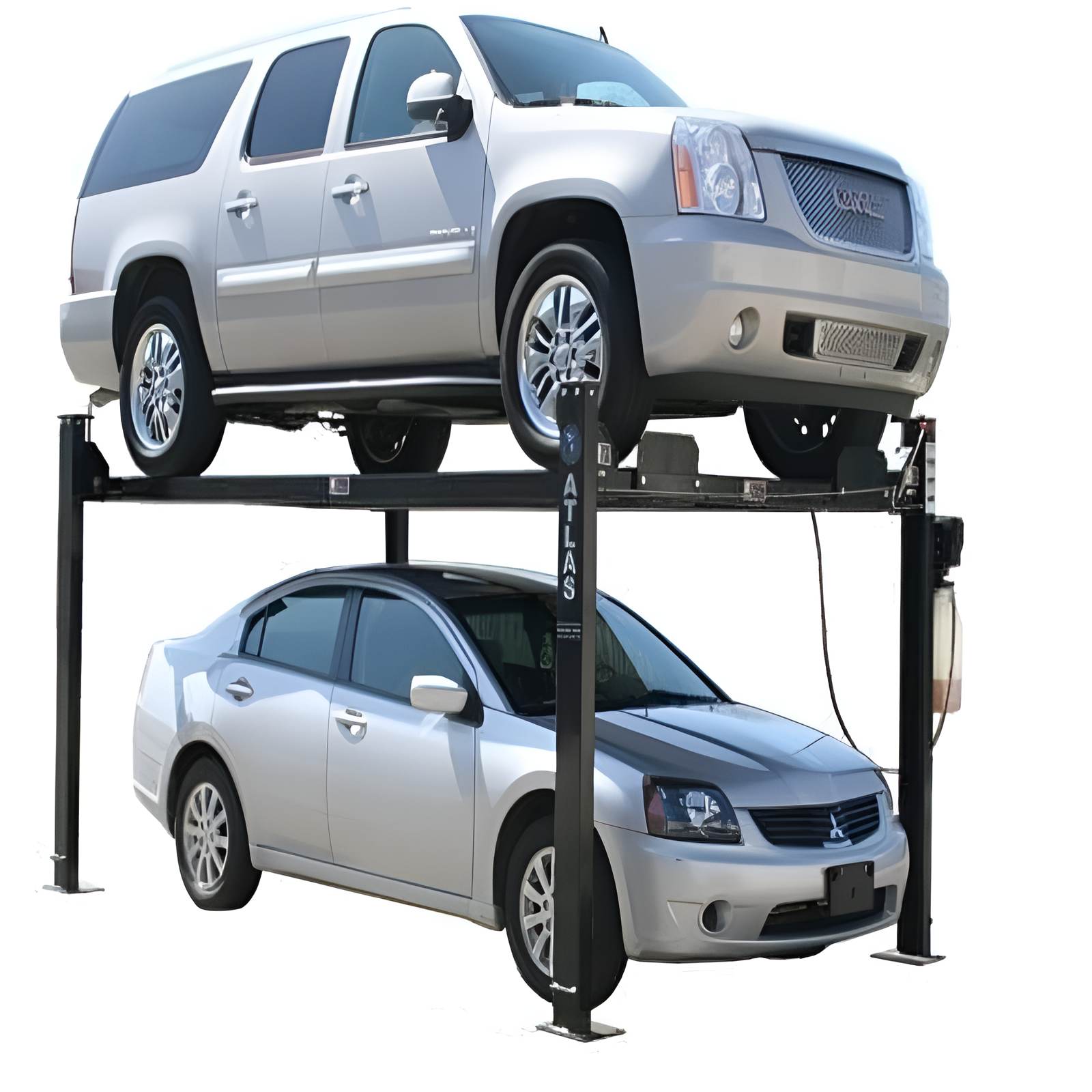

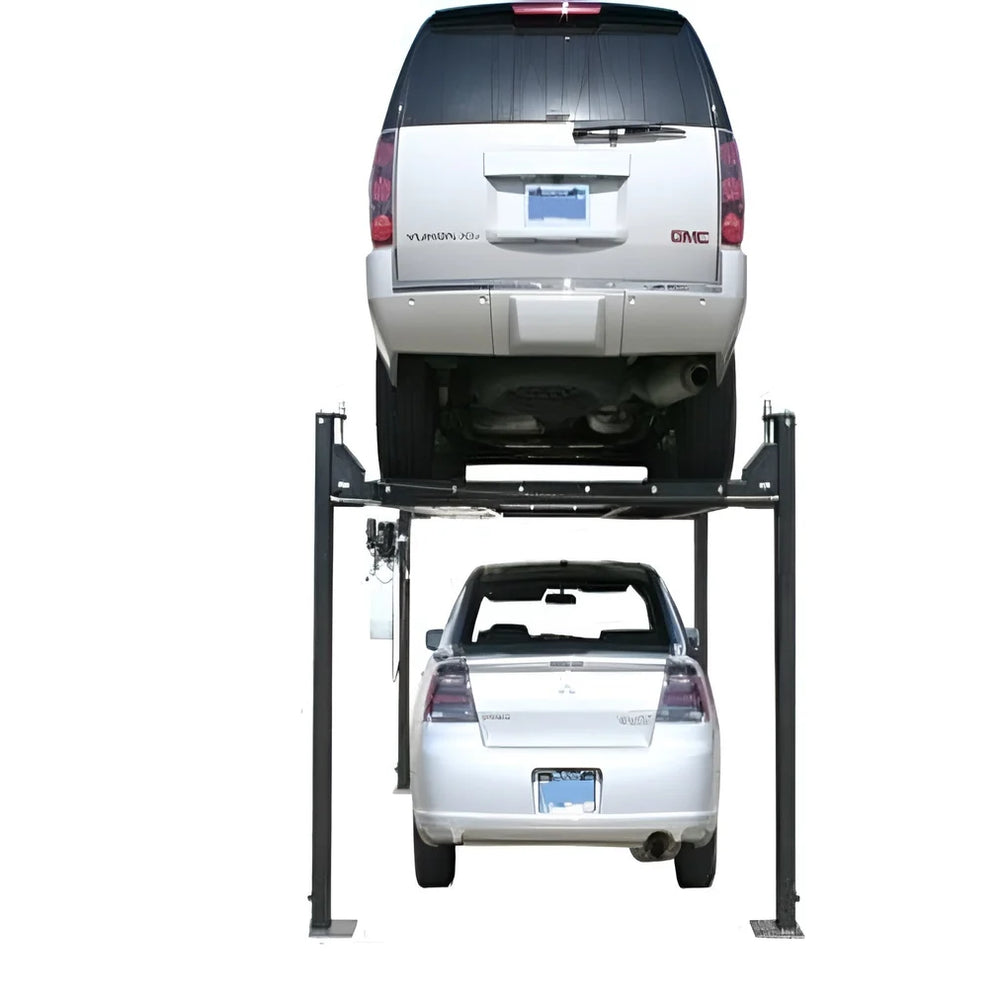

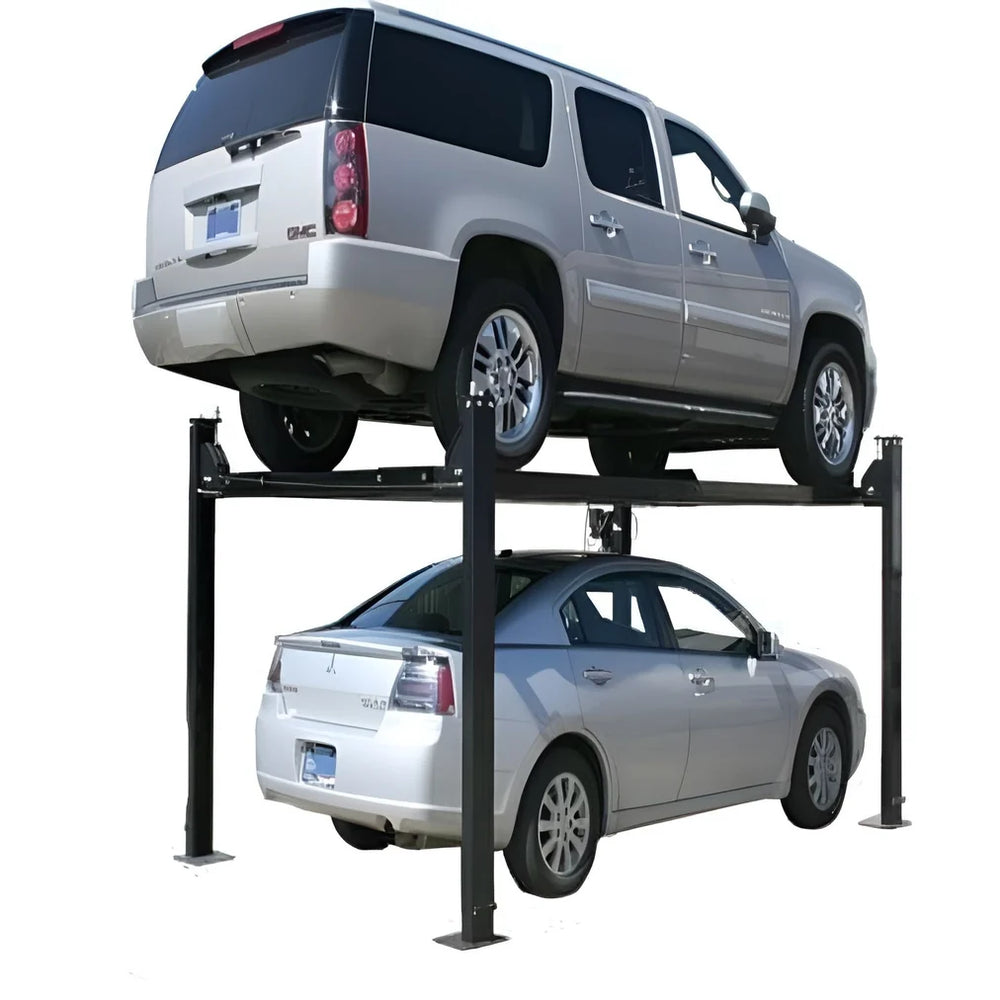

Need more parking space without expanding your garage? The Atlas Garage PRO8000 gives you a practical way to make better use of the space you already have. With an 8,000 lb lifting capacity, this freestanding 4-post lift lets you store one vehicle above another while also providing convenient access for maintenance and service work.
The PRO8000 raises the runways up to 72 inches, providing 67 inches of clearance underneath. Whether you're storing a weekend car, freeing up valuable garage floor space, or working underneath a vehicle, the PRO8000 provides a versatile setup for home garages and automotive enthusiasts.
Because the lift features a freestanding and portable design, it provides added flexibility in your garage or workspace. The included caster kit with polyurethane wheels also allows the lift to be repositioned when unloaded.

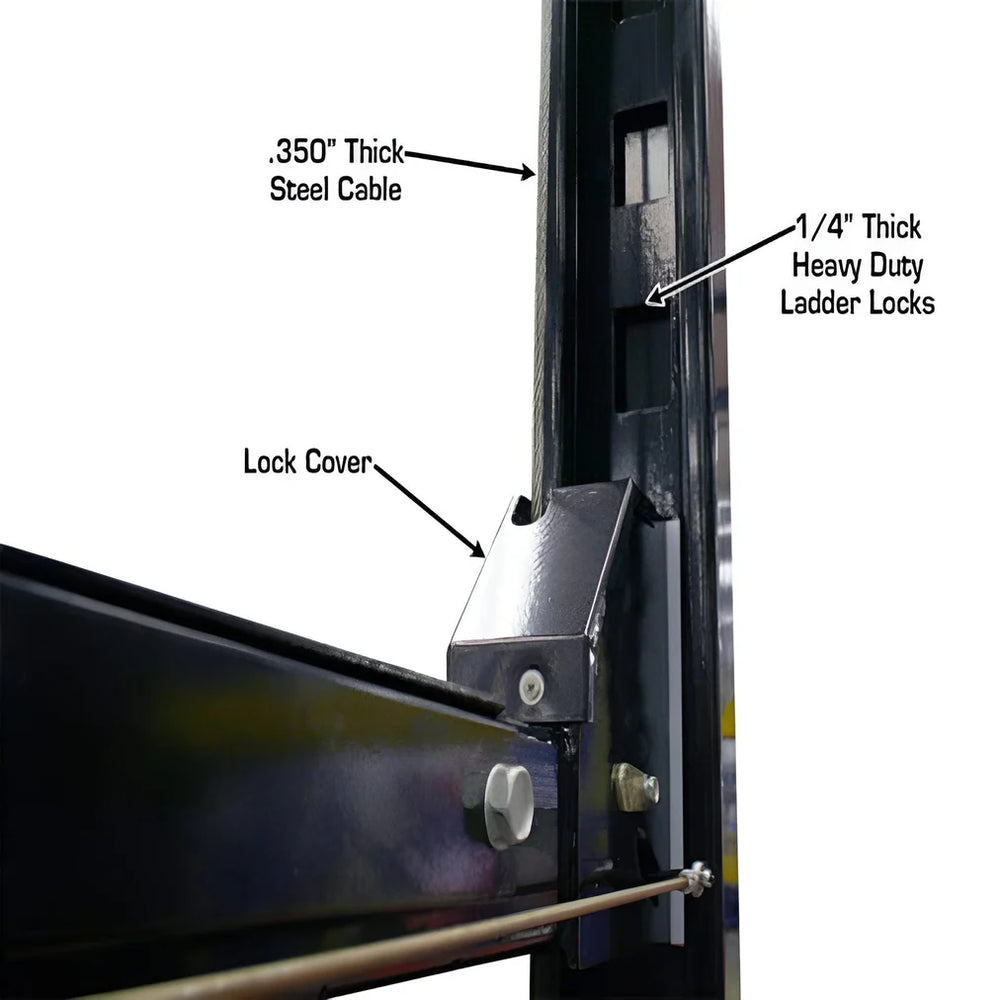

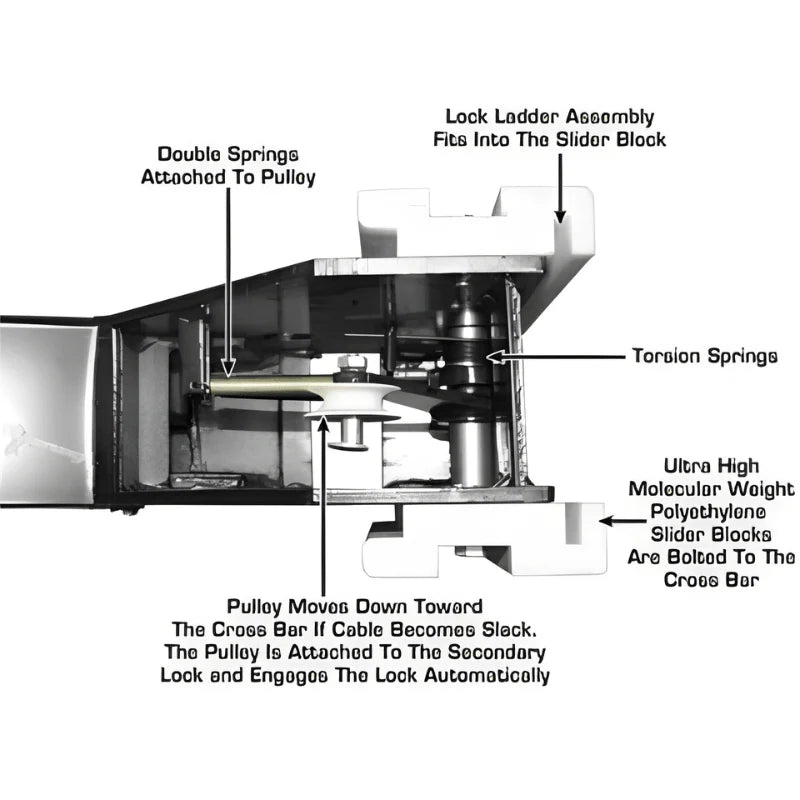

The PRO8000 features diamond-plate runways, a single-point lock release, lock-ladder design, and double-lock safety system. It operates on 110V power and requires a 30-amp breaker.

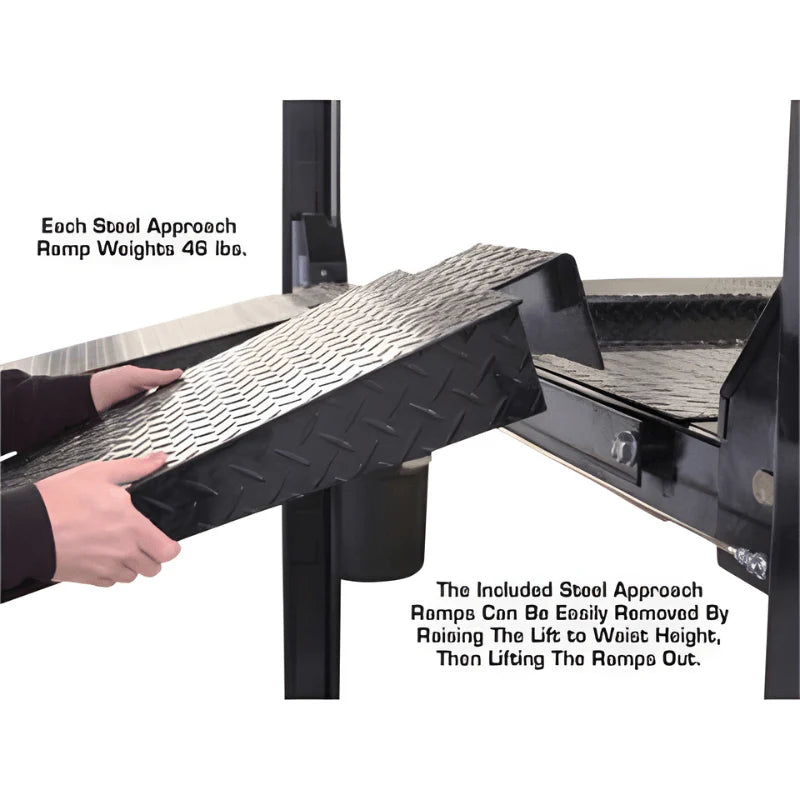

Several useful accessories are included with the lift, including steel approach ramps, a steel jack tray, four plastic drip trays, four wheel stops, two rubber wheel chocks, and a caster kit.

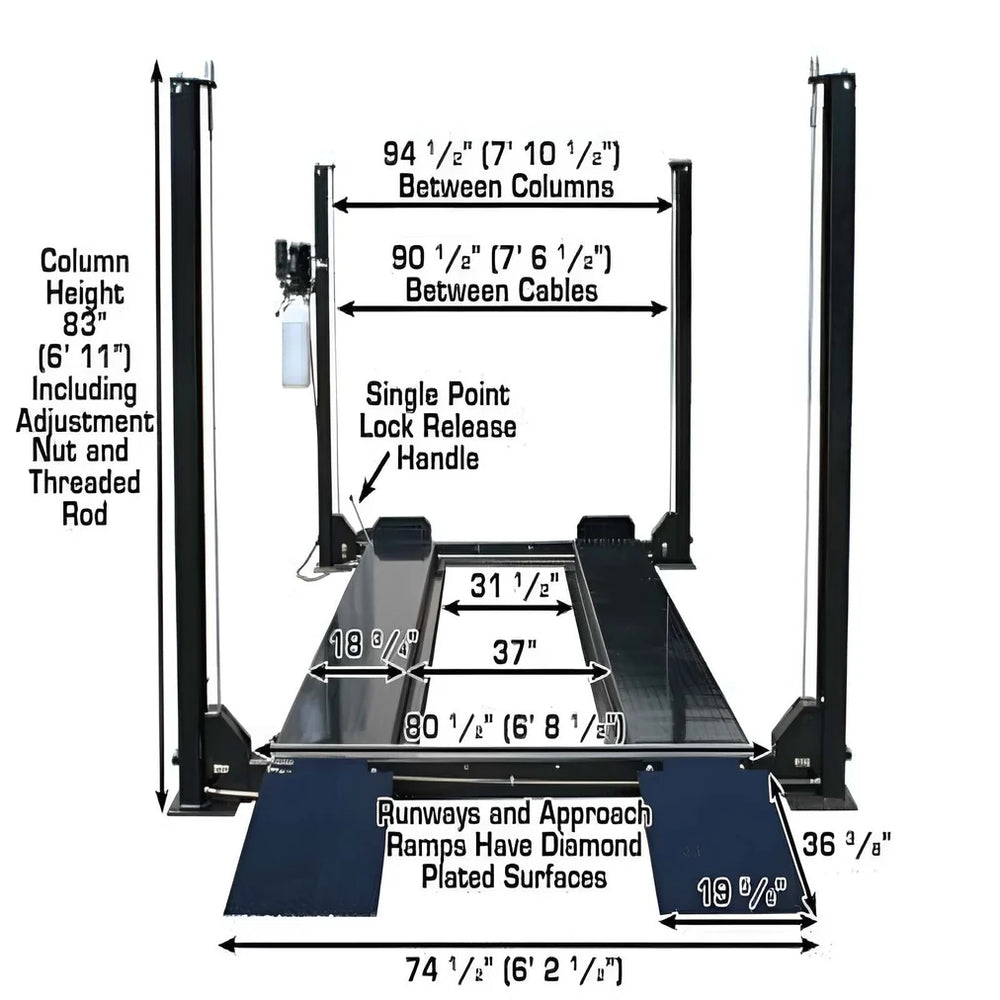

Atlas Garage PRO8000 Specifications
Capacity: 8,000 lb
Lifting Height to Top of Runway: 72" (6')
Clearance Under Runways: 67" (5' 7")

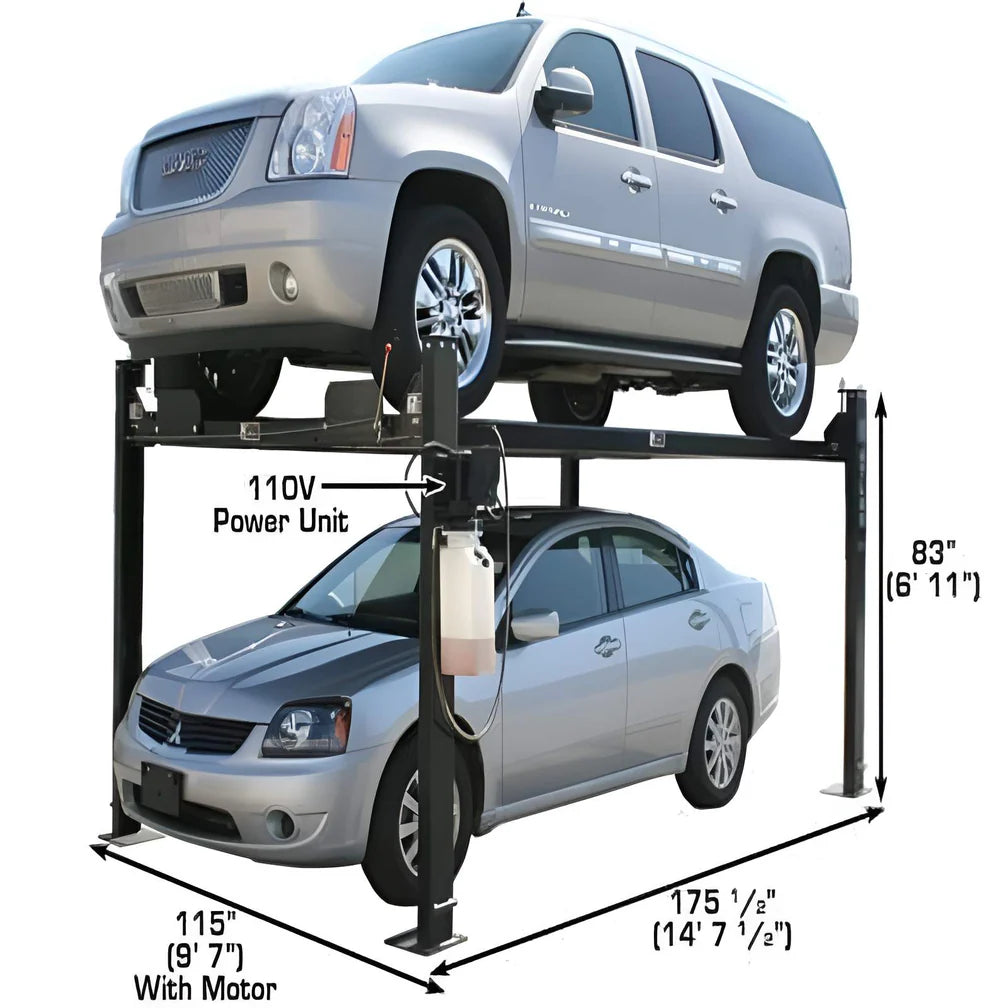

Height of Columns: 83" (6' 11")
Overall Width Without Motor: 104 1/2" (8' 8 1/2")
Overall Width With Motor: 115" (9' 7")

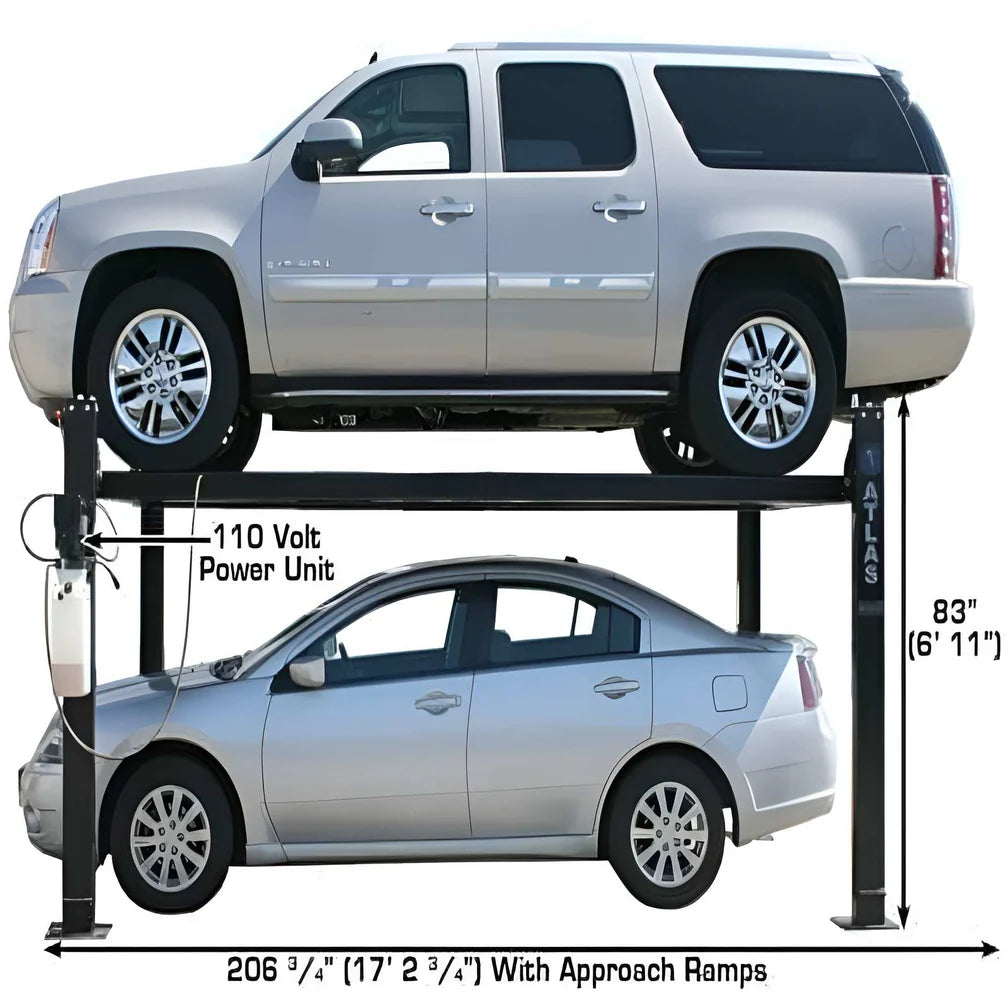

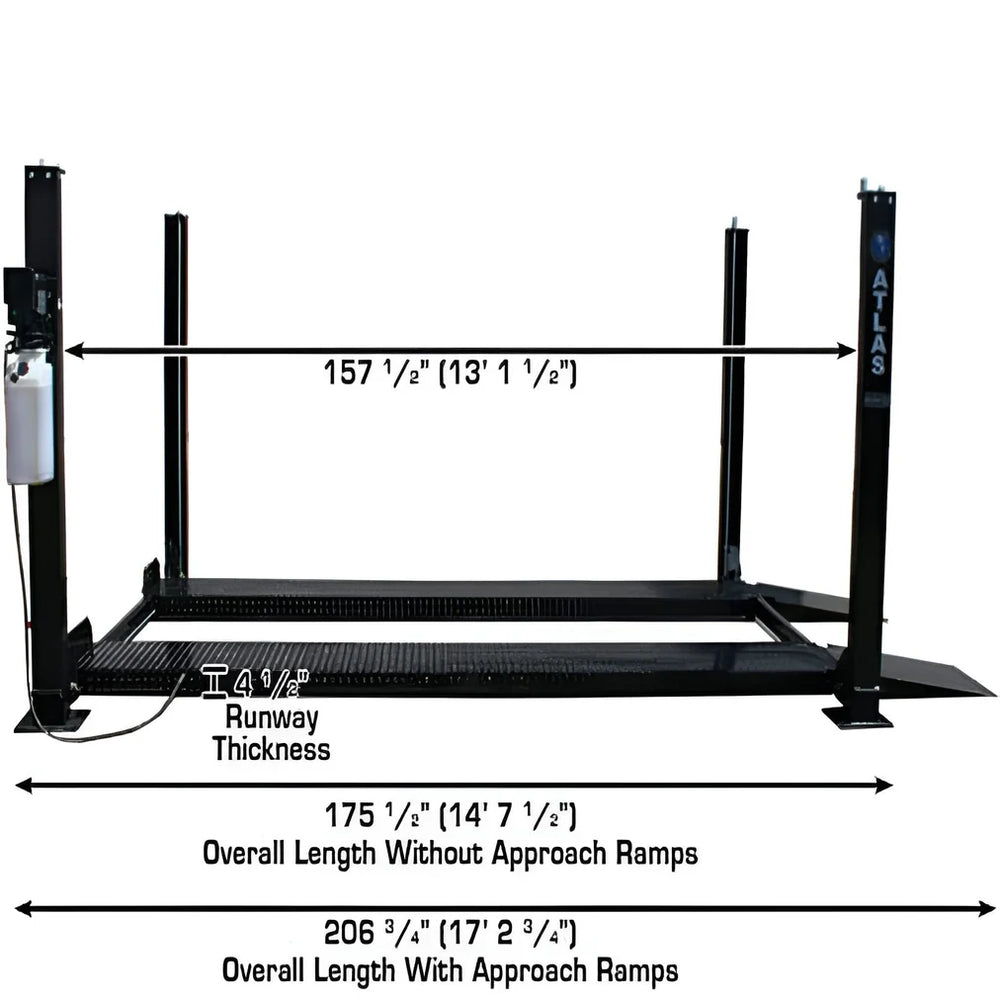

Overall Length With Approach Ramp: 206 3/4" (17' 2 3/4")
Approach Ramp: 37" (3' 1")

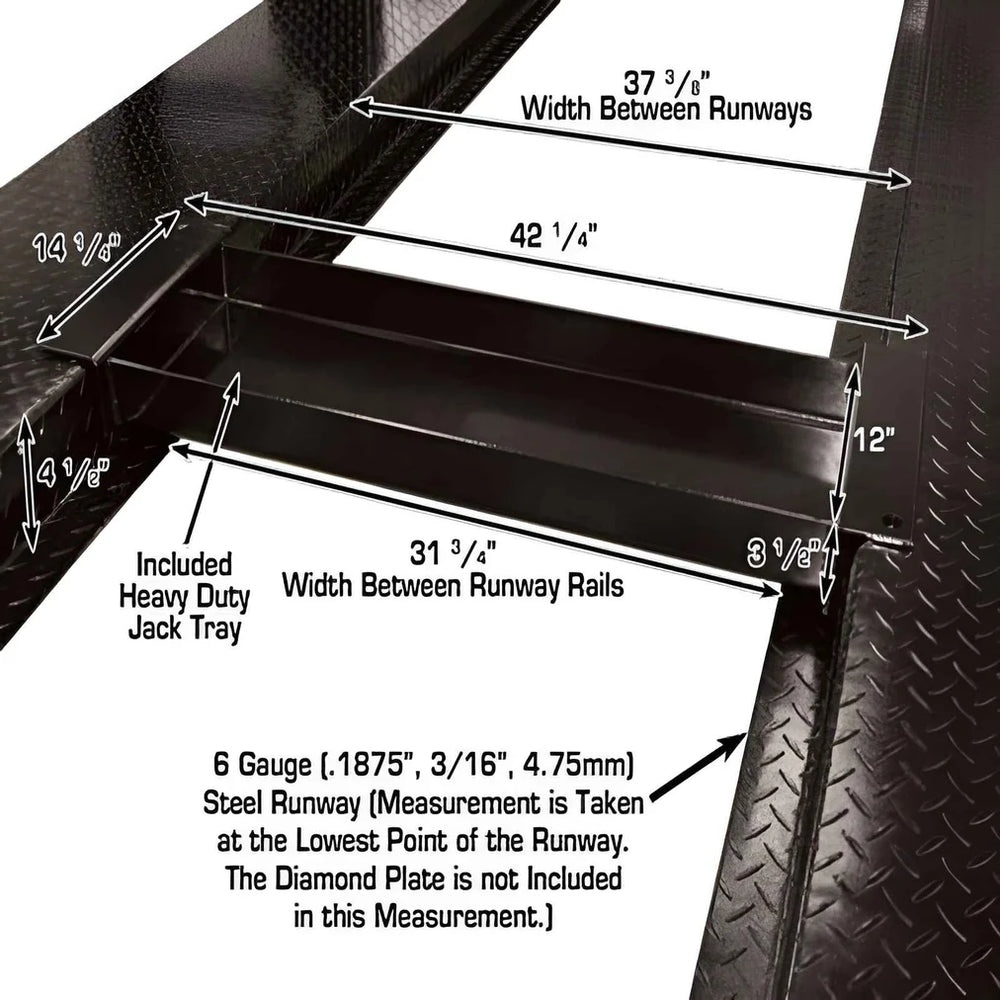

Runway Width With Rails: 21 1/2"
Runway Driving Surface: 18 3/4"
Runway Length: 165 3/4" (13' 9 3/4")
Runway Thickness: 4 1/2"
Width Between Runways: 37" (3' 1")
Width Between Runway Rails: 31 1/2" (2' 7 1/2")
Outside Runway to Outside Runway: 74 5/8" (6' 2 5/8")
Clearance Between Columns: 94 1/2" (7' 10 1/2")
Length Between Columns: 157 1/2" (13' 1 1/2")

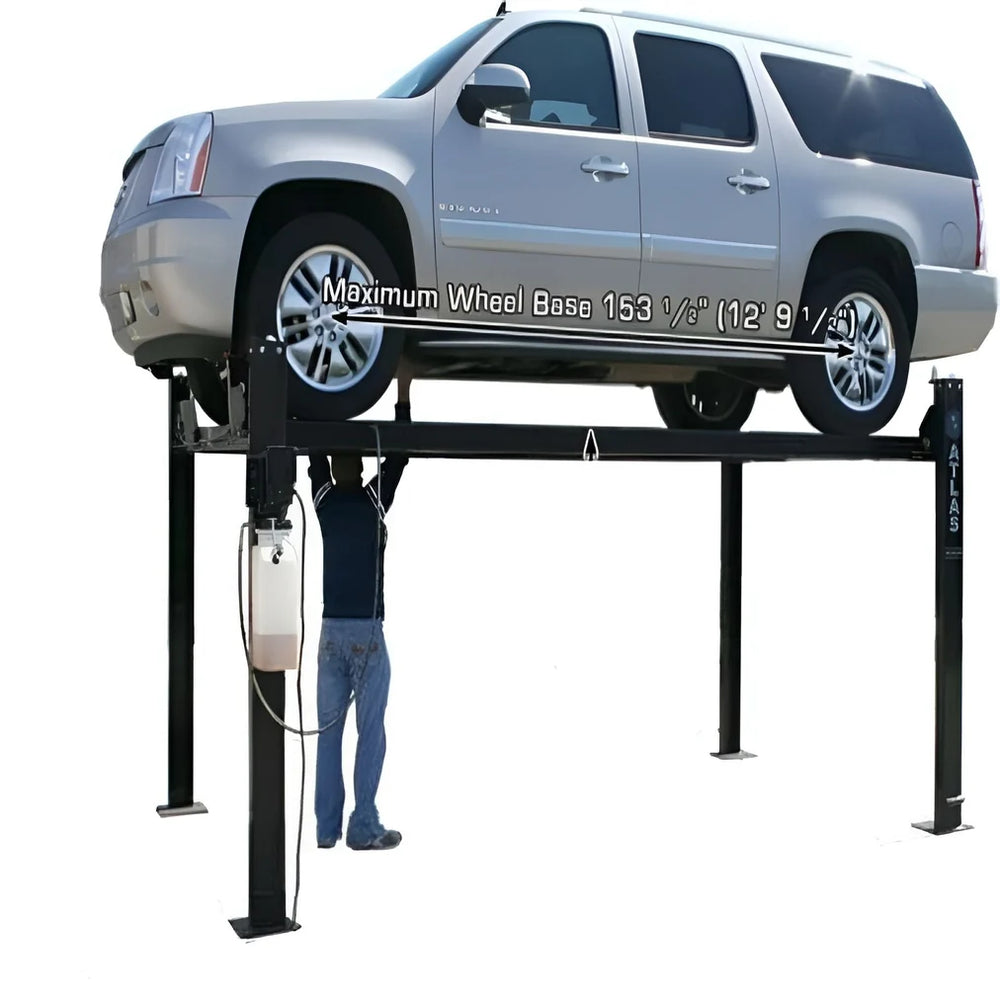

Maximum Wheelbase: 153 1/2" (12' 9 1/2")
Drive-Through Width: 80 1/2" (Outside Tire to Outside Tire)

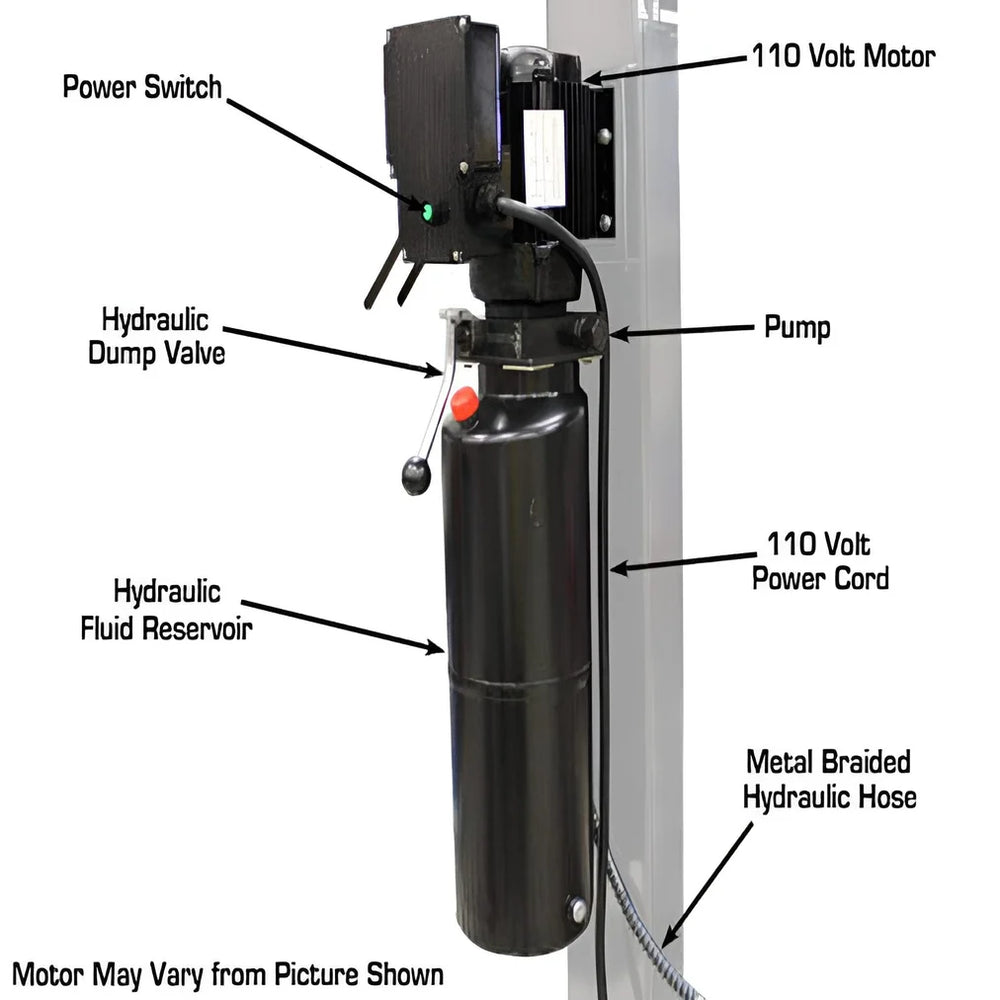

Power: 110V Electric Operation (30 AMP Breaker Required)
Concrete Requirements: Minimum 4" / 3,000 PSI
Shipping Weight: 1,800 lb

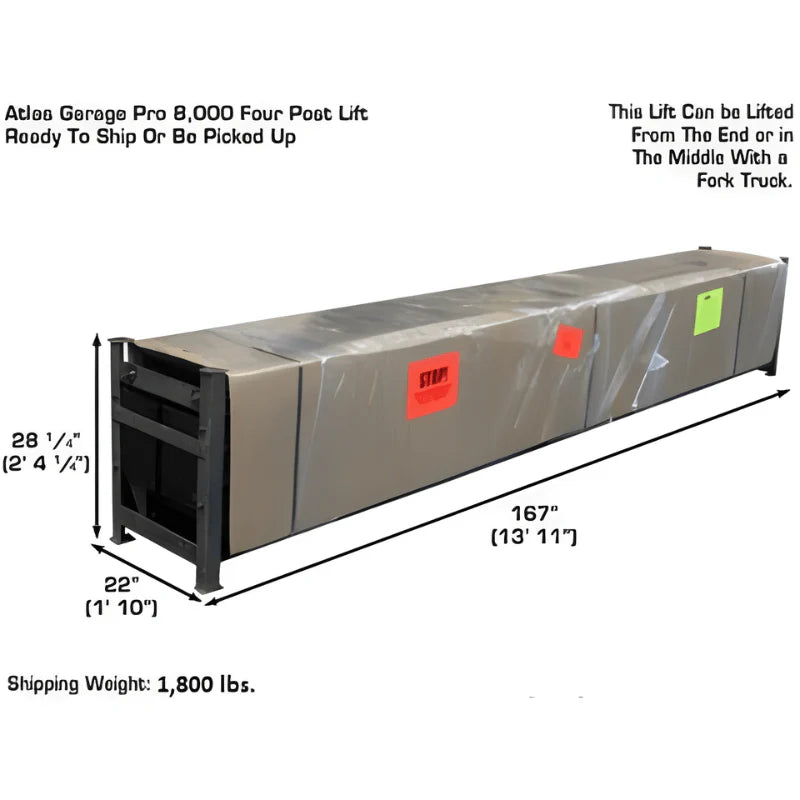

Pallet Size: 167" L x 28 1/2" H x 22" W
Adapter Heights: 2 Each 1 1/2", 5"
Arm Hole/Adapter Peg Size: 1 1/2"
Atlas PRO8000 Features
8,000 lb Capacity
Freestanding & Portable Design
Diamond-Plate Runways

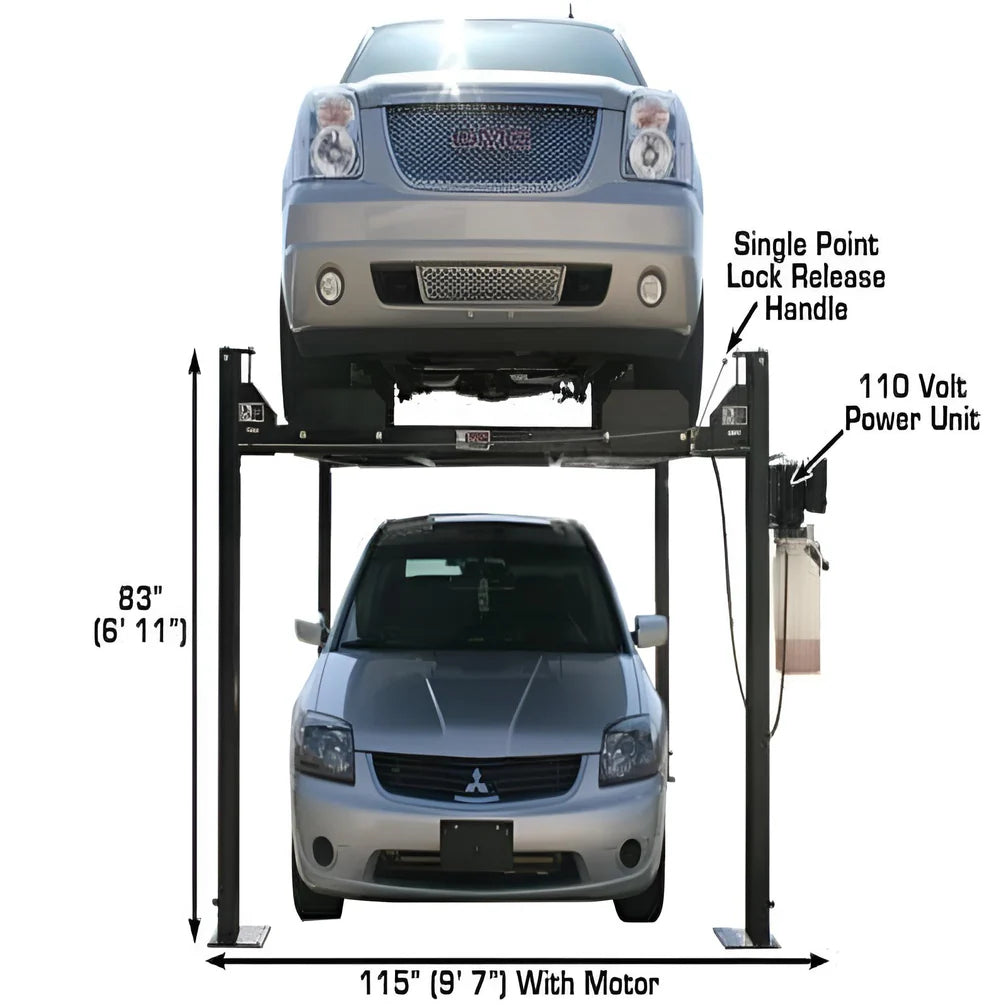

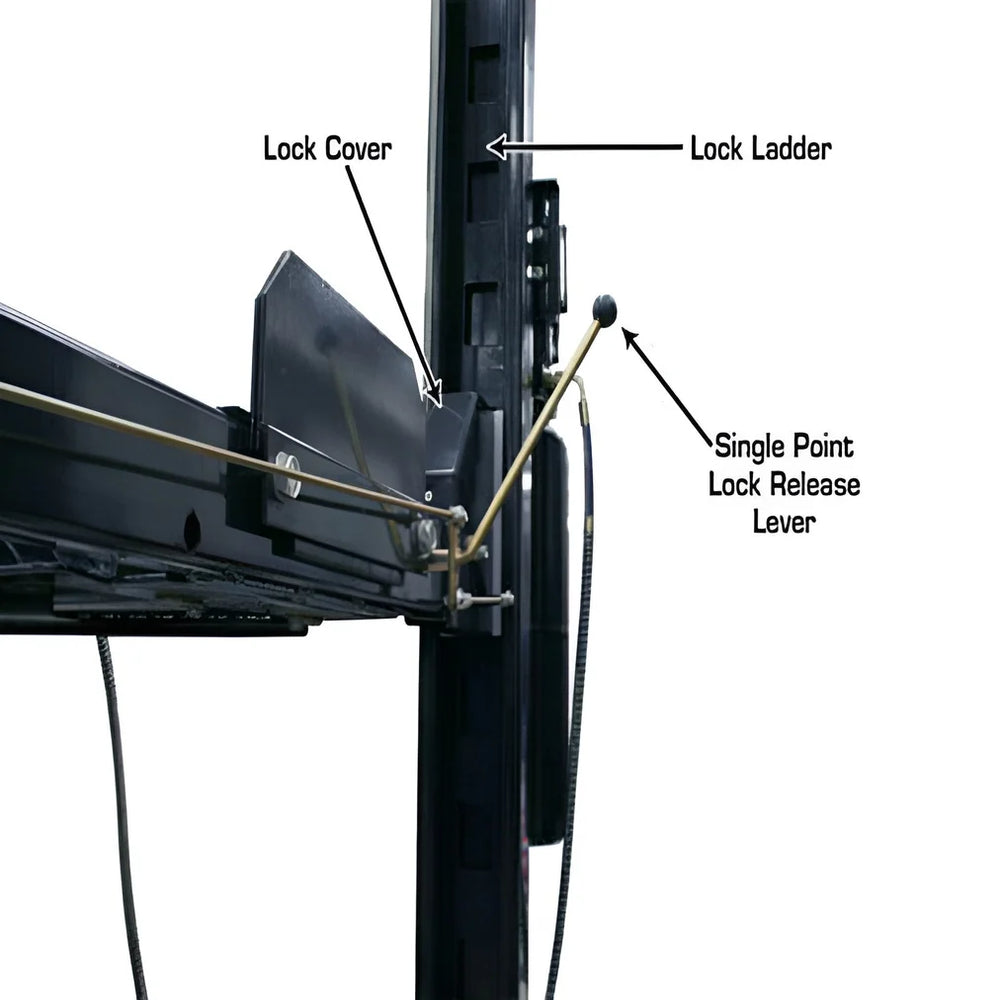

Single-Point Lock Release

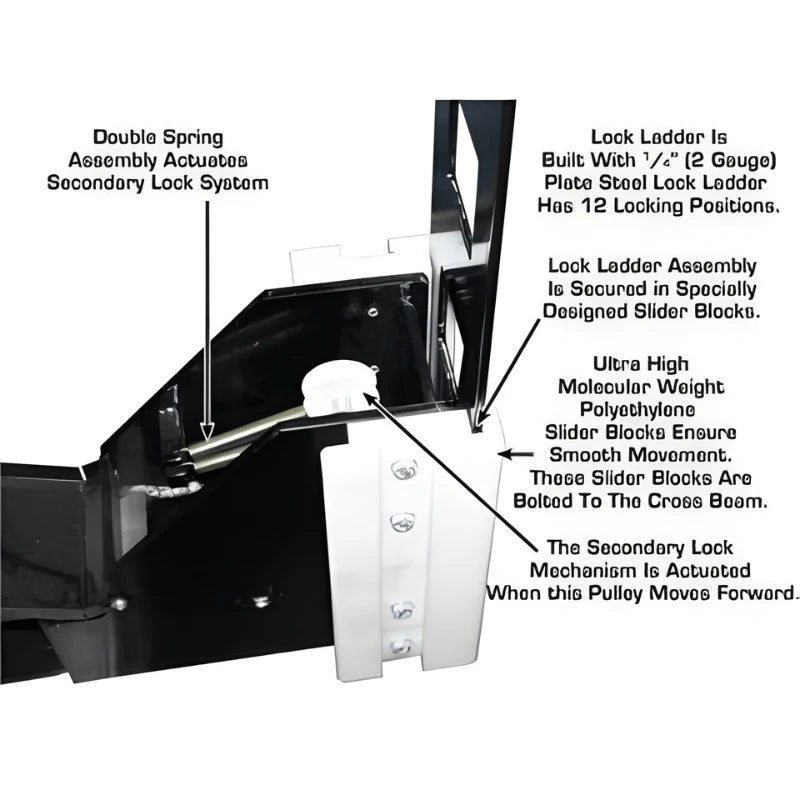

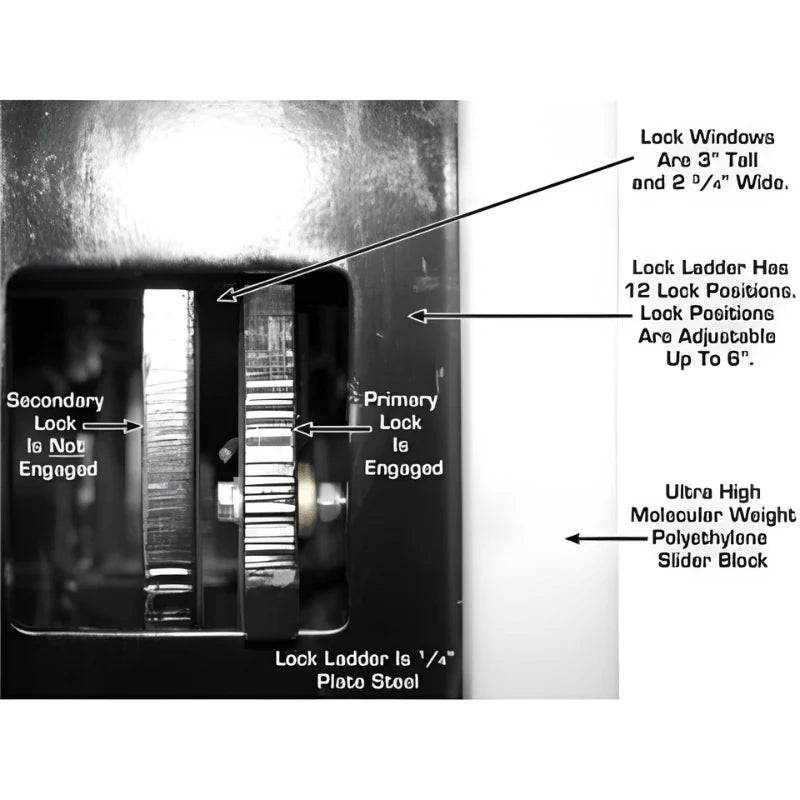

Lock-Ladder Design
Double-Lock Safety System

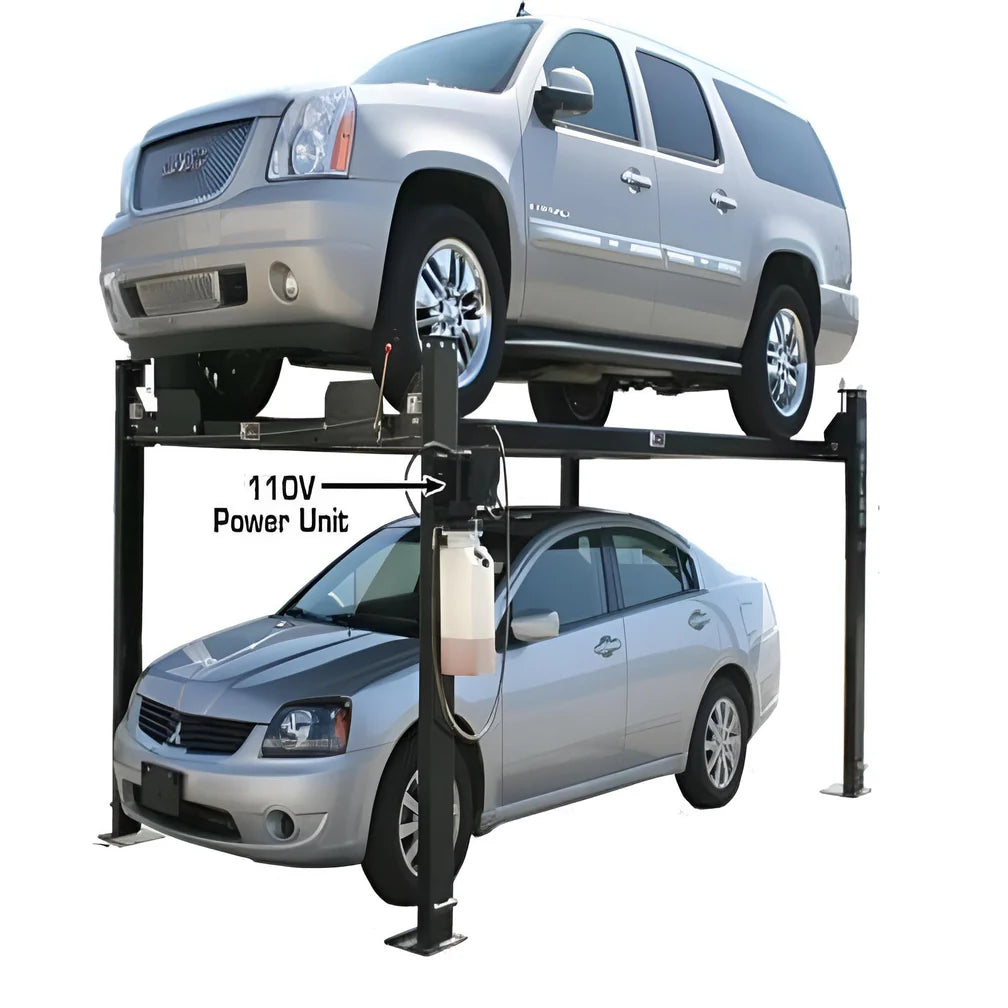

110V Electric Operation
Designed for vehicle storage and maintenance
2-Year Structural Warranty – Parts Only
1-Year Hydraulic Warranty – Parts Only
What's Included With the Atlas PRO8000

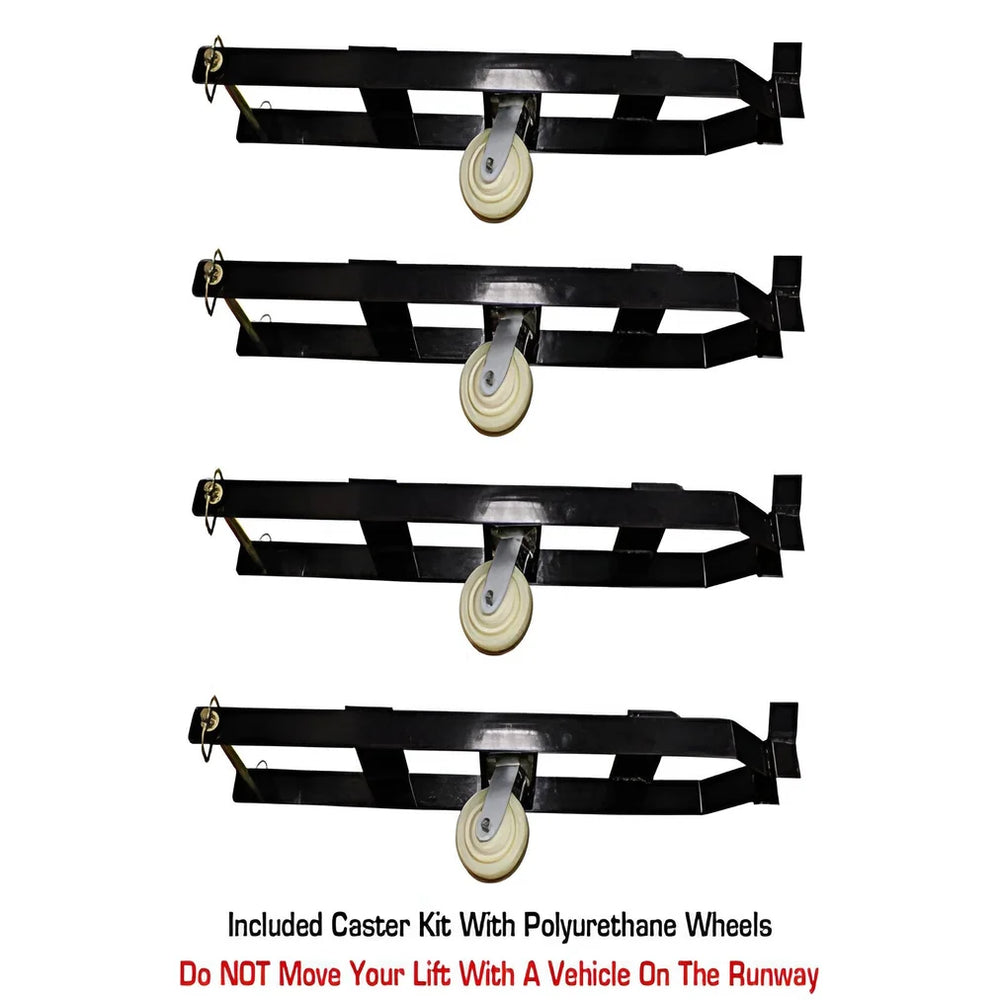

Caster Kit with Polyurethane Wheels

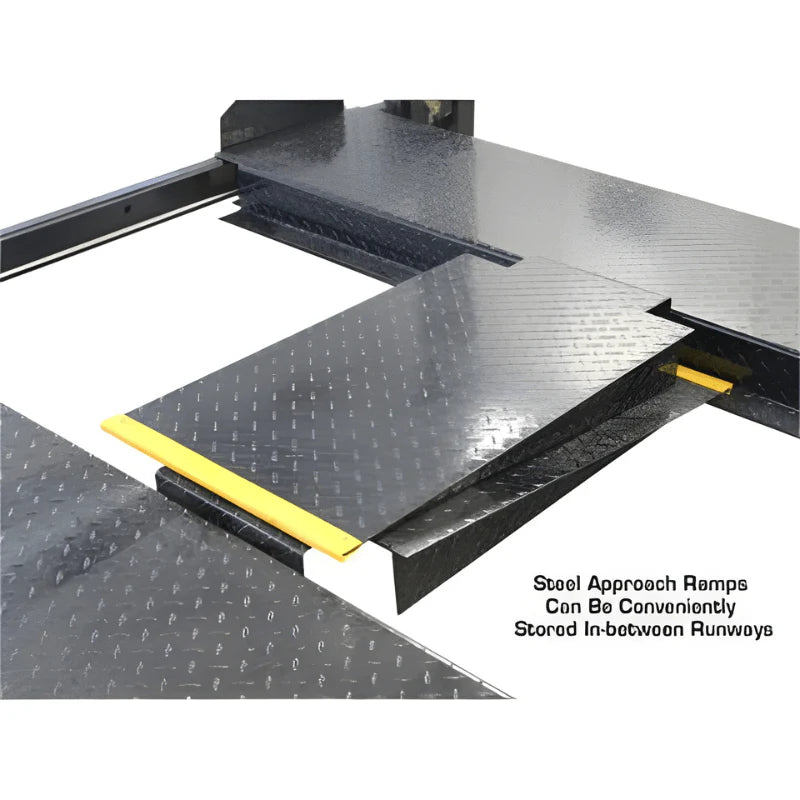

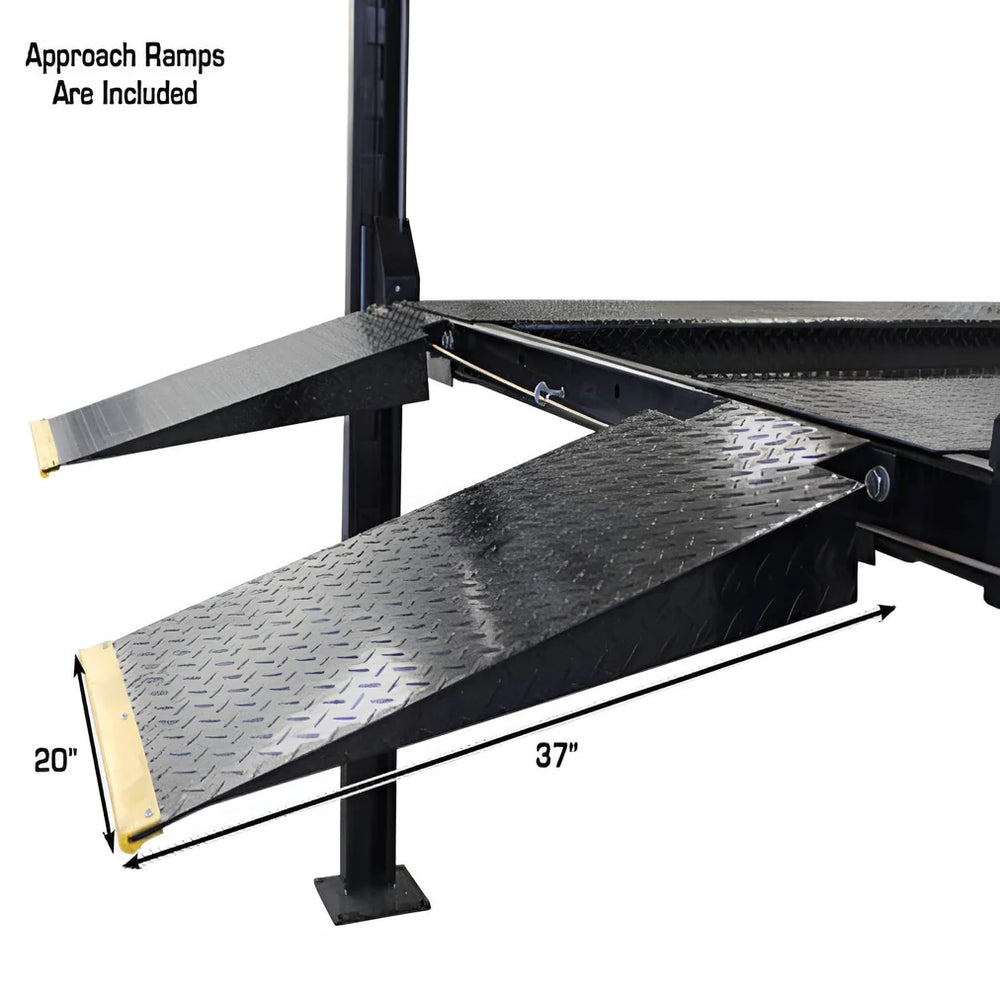

Steel Approach Ramps

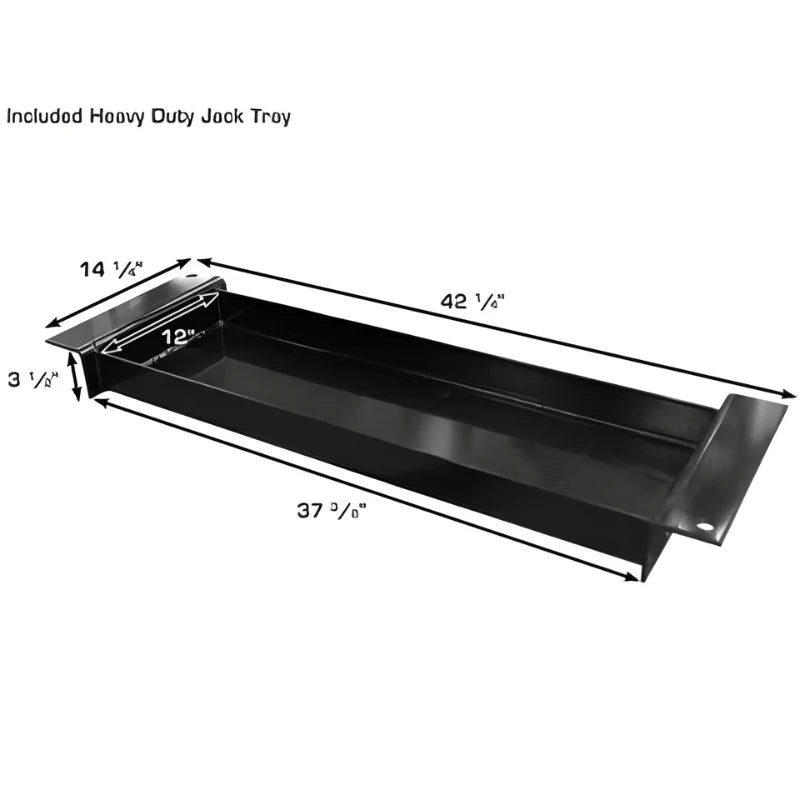

Steel Jack Tray

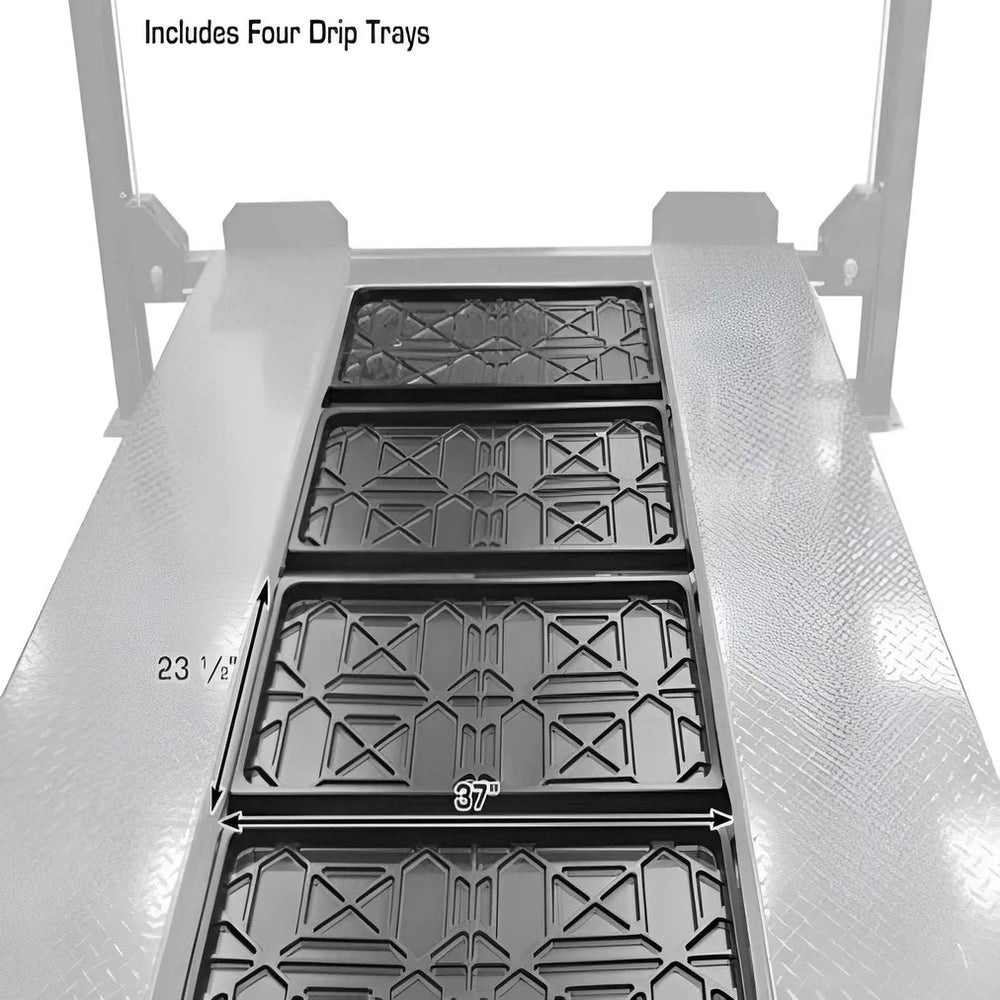

4 Plastic Drip Trays
4 Wheel Stops

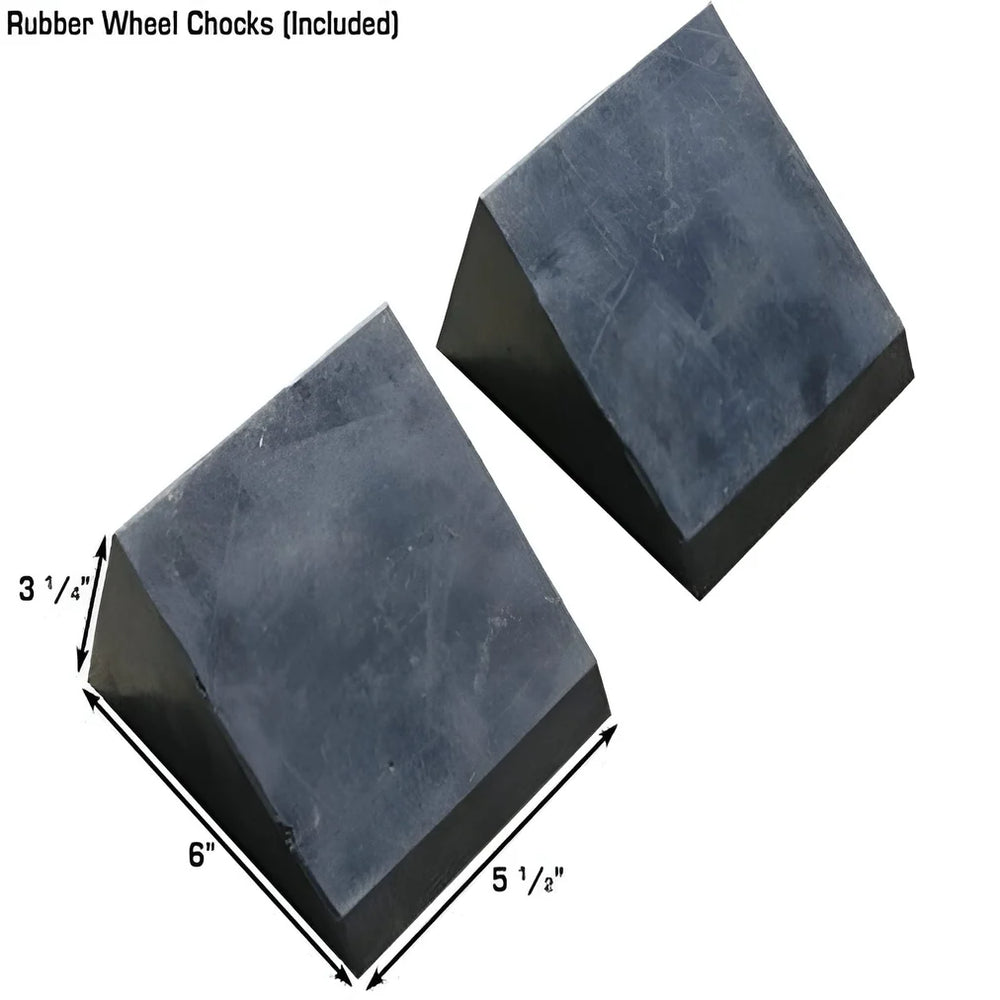

2 Rubber Wheel Chocks
Why Choose the Atlas Garage PRO8000?
The Atlas Garage PRO8000 is an excellent option for homeowners, automotive enthusiasts, and collectors looking to maximize their available garage space. Its 8,000 lb capacity, portable design, included accessories, and 67-inch under-runway clearance make it useful for both vehicle storage and maintenance.
Whether you need additional parking space or a convenient way to work underneath your vehicle, the PRO8000 delivers a versatile 4-post lift solution without requiring additional garage space.
