Atlas Automotive PV12PX Overhead 2-Post Lift 12,000 lb. Capacity

Atlas Automotive PV12PX Overhead 2-Post Lift 12,000 lb. Capacity

SKU ATEXH-PV12PX-1
by Atlas
$5,249.00
✅ No Sales Tax (Except Utah)
🛡️ Authorized Atlas Dealer

Product Highlights

  • 12,000 lb. Heavy-Duty Lifting Capacity
  • Adjustable 150" • 165" • 177" Height Options
  • 109.5" Extra-Wide Drive-Through Clearance
Shipping
Availability: ✅ In stock, ready to be shipped
🚚 Ships In:
1–3 Business Days
→
📦 Delivers In:
Estimated 3–7 Days

📞 Better Pricing Available by Phone

Extra Savings

Some pricing we can’t publish online. Call or text and we’ll see what we can do on this lift.

📞 (833) 724-8902
US-based team, no call centers — call or text
Price Match Guarantee Authorized US Retailer Full Manufacturer Warranty

Notify me when back in stock

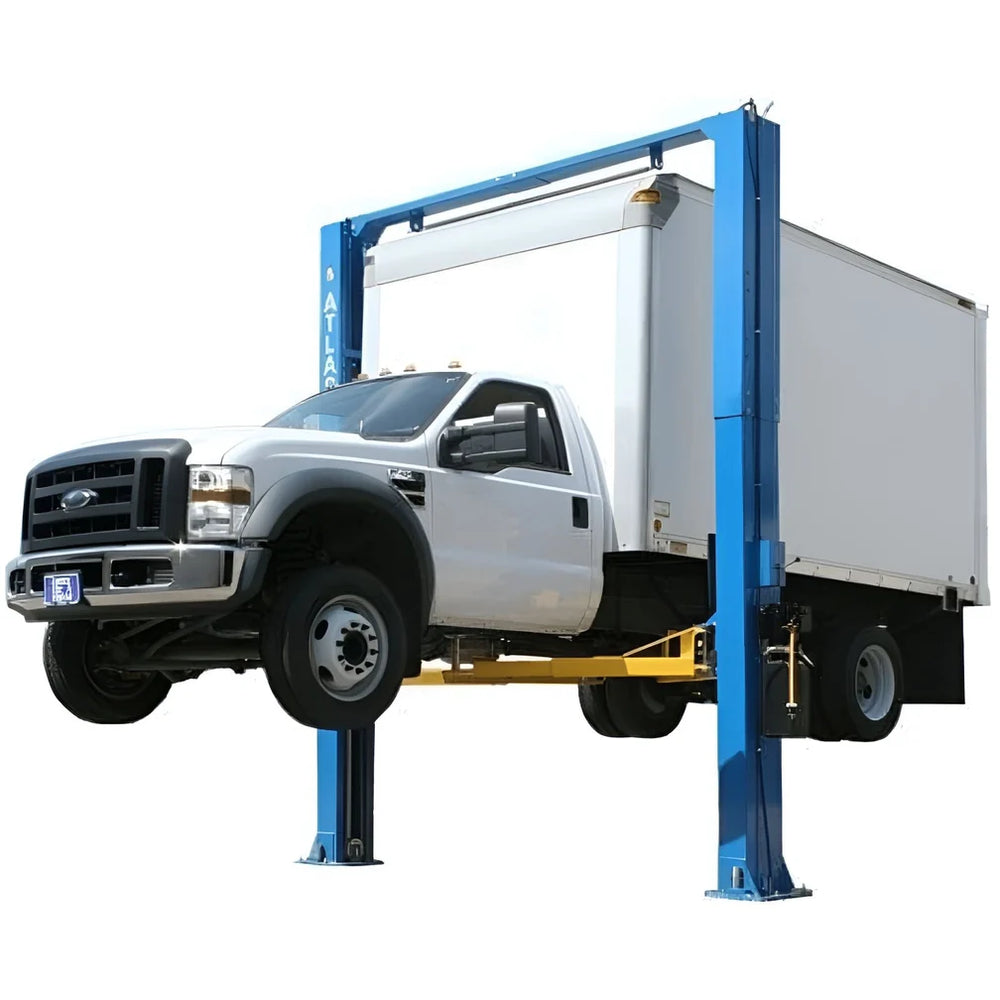

Atlas PV12PX 12,000 lb Overhead 2-Post Lift

The Atlas PV12PX 12,000 lb Overhead 2-Post Lift is a heavy-duty automotive lift designed for shops and garages that need the capacity and dimensions to service everything from passenger cars to larger, long-wheelbase trucks. With a 12,000 lb lifting capacity, extra-wide column spacing, symmetric arms, and multiple overhead height configurations, the PV12PX provides the versatility needed for demanding vehicle service applications.

12,000 lb Heavy-Duty Lifting Capacity

With its 12,000 lb capacity, the Atlas PV12PX provides additional lifting capability for heavier pickups, vans, SUVs, and other vehicles while maintaining the low pad height needed to accommodate many passenger cars.

The combination of extended symmetric arms and multiple truck adapters provides flexibility when positioning the lift arms under vehicles with different wheelbases, frame heights, and lifting-point locations.

Extra-Wide 109.5" Drive-Through Clearance

The PV12PX provides an impressive 109.5 inches of drive-through clearance with 123.5 inches of inside-column space.

The additional width provides more room for positioning larger trucks and vehicles with wide mirrors between the columns, making the PV12PX an excellent option for shops that regularly service larger vehicles.

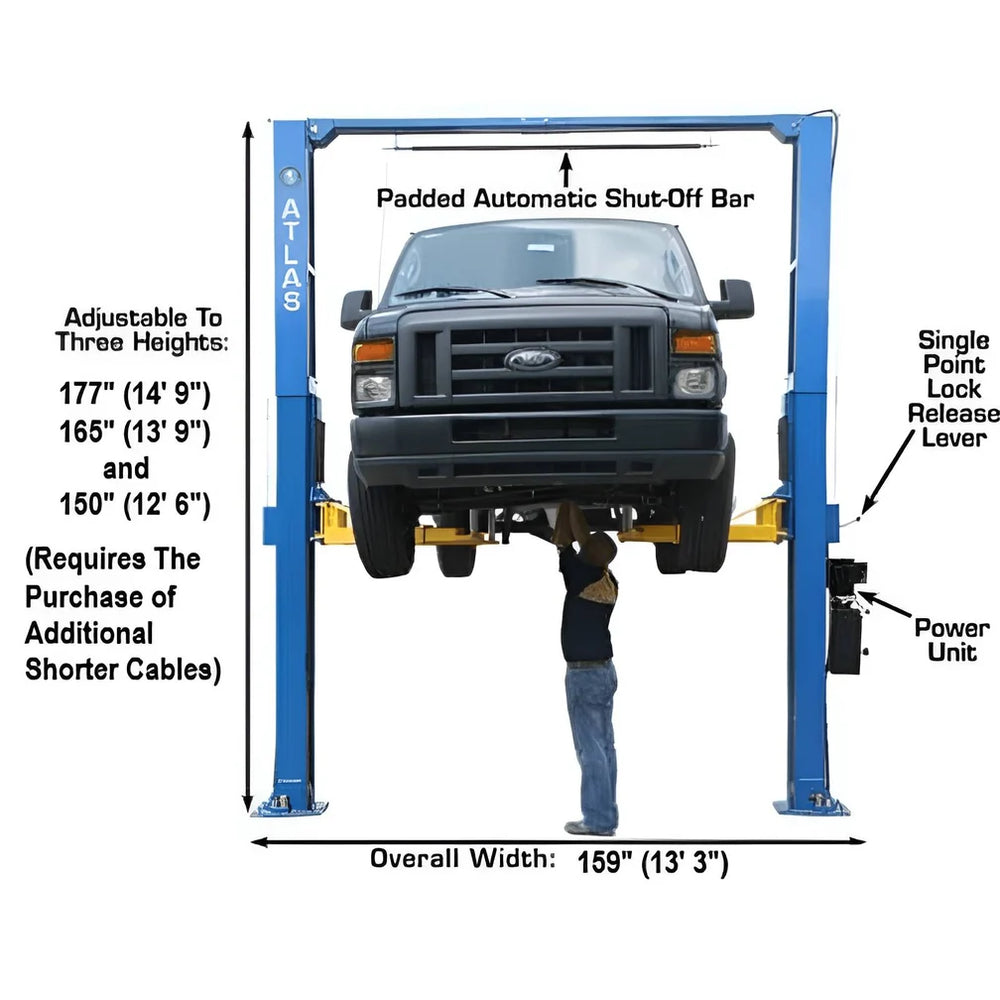

Three Adjustable Height Configurations

The Atlas PV12PX can accommodate different shop ceiling heights with three overhead height configurations: 150", 165", or 177".

The standard configurations provide overall heights of 165" (13' 9") or 177" (14' 9"). A special 150" (12' 6") low-height configuration is also available but requires the purchase of the appropriate extra-short cables.

This flexibility allows shops to select the configuration that works best with their available ceiling height and vehicle requirements.

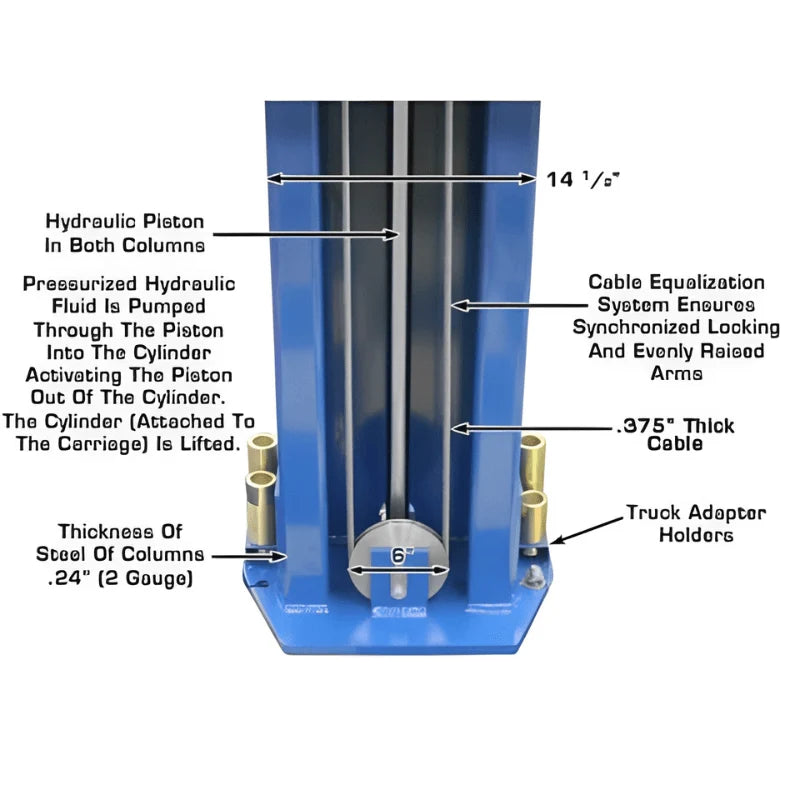

Direct-Drive Hydraulic Cylinders

The PV12PX utilizes direct-drive hydraulic cylinders for dependable lifting performance. A single-point lock release allows the operator to disengage the mechanical safety locks from one location when preparing to lower the vehicle.

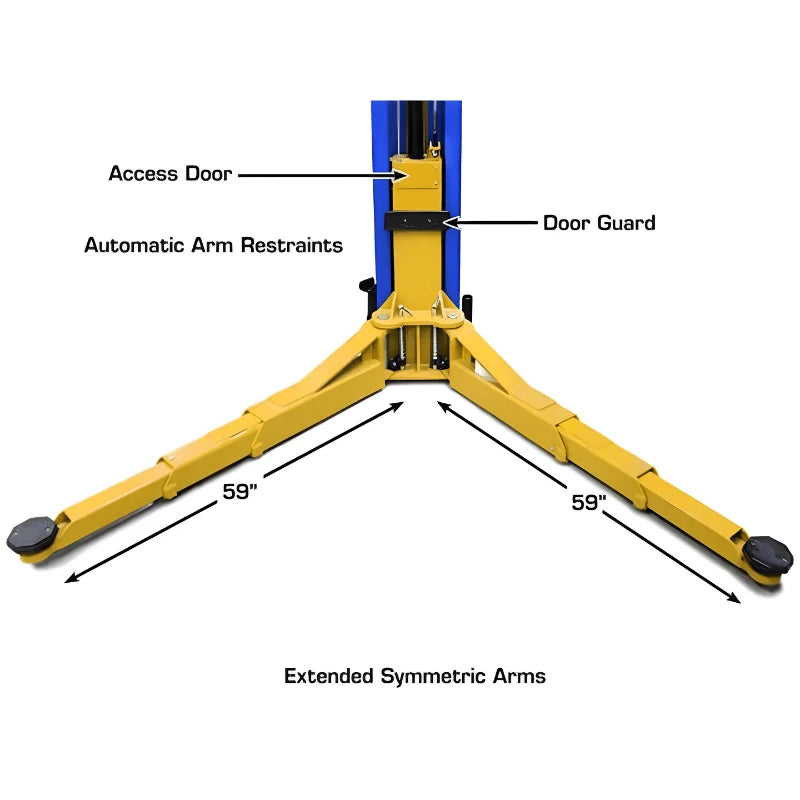

Automatic arm restraints help keep the lifting arms properly positioned once the vehicle is raised.

Built for Cars, Trucks & Longer Wheelbases

The symmetric arm configuration provides the reach needed to accommodate larger and longer-wheelbase vehicles. With a minimum arm height of just 4.5 inches, the PV12PX also maintains the flexibility needed for many lower passenger vehicles.

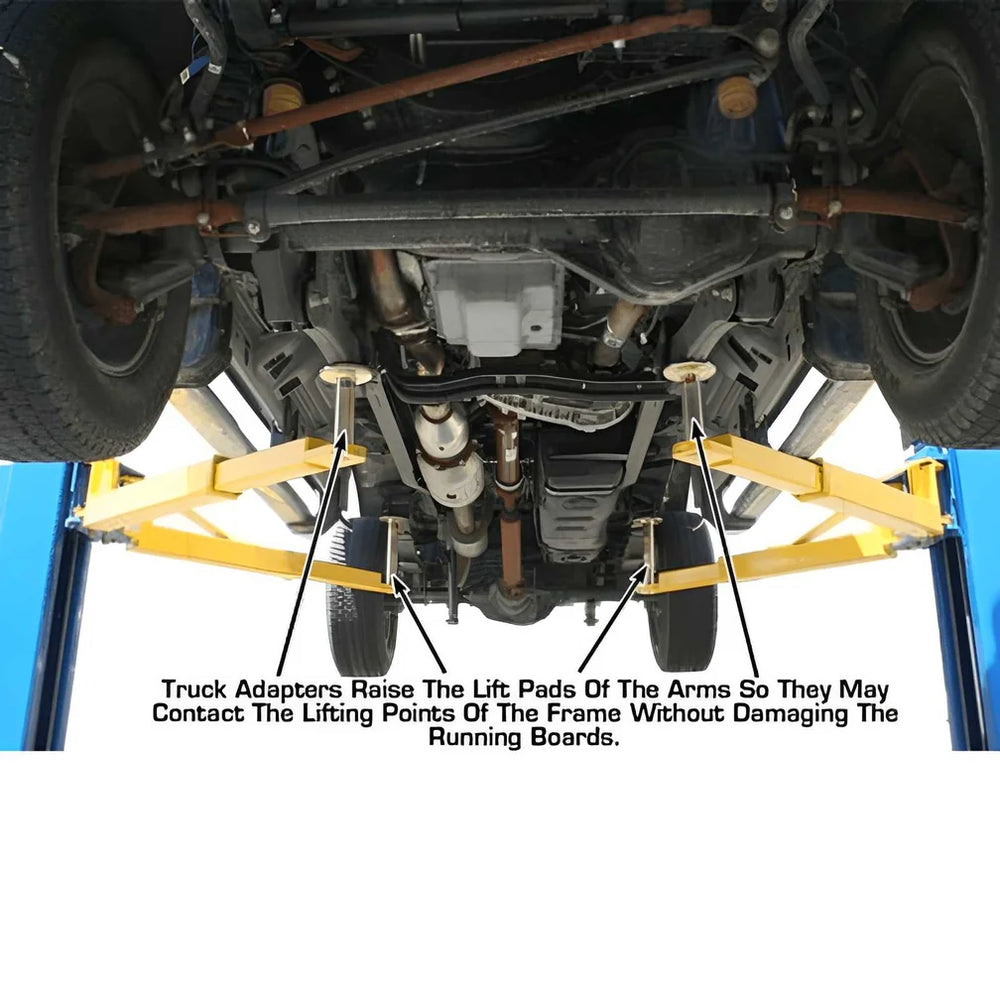

A 12-piece truck adapter set is included, providing additional height options when accessing lifting points on pickups, vans, and other taller vehicles.

Vehicle Protection Features

A padded overhead shut-off bar provides additional protection when raising taller vehicles. Protective door guards on the carriages also help reduce the chance of vehicle doors contacting the lift structure while the vehicle is positioned between the columns.

Atlas PV12PX Specifications

Key Features

Warranty

Atlas PV12PX Manual

*- Contact Us For Pick Up

Warehouse Pickup locations (No shipping charge):



Simply browse our products, select your options, and click Add to Cart. You can checkout securely using a credit card, Shop Pay, PayPal, or other payment options. If you have questions before ordering, call or text us at (833) 724-8902.
We accept Visa, MasterCard, American Express, Discover, Shop Pay, Apple Pay, Google Pay, and PayPal. Shop Pay Installments is also available, allowing you to split your purchase into monthly payments.
Yes. Call or text us at (833) 724-8902 and our team will walk you through the order process and answer any questions about the equipment.
Yes. Shop Pay Installments is available at checkout on qualifying orders. You can split your purchase into manageable monthly payments. The monthly estimate is shown on each product page.
You will receive an order confirmation email immediately after purchase. Your order will be processed and shipped within 1 to 3 business days. Once shipped, you will receive a tracking number via email.
Orders ship within 1 to 3 business days from our US warehouses. Estimated delivery is typically 3 to 7 business days depending on your location. Shipping estimates are approximate and may vary by carrier.
Shipping costs vary by product and are shown at checkout before you complete your purchase. Some products include free warehouse pickup options at our US locations.
We ship from US warehouses located in California, Texas, Georgia, Illinois, Michigan, and New Jersey. Your order ships from the warehouse closest to your delivery address.
Yes. Free warehouse pickup is available at the following locations: Azusa CA, City of Industry CA, Brookshire TX, Deer Park TX, Kalamazoo MI, Linden NJ, Pooler GA, and Romeoville IL. Contact us at (833) 724-8902 to arrange pickup.
Large equipment like car lifts ships via freight carrier on a flatbed or LTL truck. You are responsible for unloading the equipment at delivery. A forklift or equivalent equipment is required. The driver is not permitted to wait during manual unloading. The freight company will contact you in advance to schedule delivery.
Currently we ship within the continental United States only. For inquiries about shipments outside the 48 contiguous states please contact us directly.
We offer a 30-day return policy on qualifying products. Items must be unused, in original condition, and in original packaging. Please contact us at Support@elitegaragetools.com or (833) 724-8902 to initiate a return.
Inspect your shipment carefully before signing for delivery. If damage is visible, note it on the delivery receipt and take photos immediately. Contact us within 48 hours of delivery so we can assist with a claim. Do not refuse the shipment — accepting with noted damage is the correct procedure.
Restocking fees may apply depending on the product and condition. Contact us before returning any item and we will walk you through the process and any applicable fees.
Return shipping costs are the responsibility of the customer unless the return is due to a defect or error on our part. For heavy freight items, return shipping costs can be significant. Please contact us before placing your order if you have concerns.
Yes. Elite Garage Tools is an authorized US retailer for all brands we carry including Atlas Automotive, Katool, Tuxedo, AMGO, and iDEAL. All products are authentic, covered by manufacturer warranty, and ship from within the United States.
Yes. If you find a lower total price from another authorized US retailer on the same product, we will match it. Contact us with the competitor's listing and we will verify and match the price. See our full Price Match Guarantee policy for details.
The right lift depends on your ceiling height, vehicle weight, and intended use. Most residential garages with standard 10 to 12 ft ceilings work well with a 2-post or 4-post lift. We recommend calling us at (833) 724-8902 so our team can help you select the right equipment for your specific situation.
Most car lifts require a minimum concrete thickness of 4 to 6 inches with a PSI rating of at least 3,000. Specific requirements are listed on each product page. It is the customer's responsibility to verify concrete thickness and strength prior to installation.
Once your order ships you will receive a tracking number via email. For freight shipments, the carrier will contact you directly to schedule a delivery appointment. If you have not received tracking information within 3 business days of ordering, contact us at Support@elitegaragetools.com.
Open and inventory all packages within 48 hours of delivery. If any parts are missing, contact us immediately at (833) 724-8902 or Support@elitegaragetools.com with your order number and a list of missing items. Timely notification is required for us to resolve the issue.
Each product ships with a detailed installation manual. For additional installation questions contact us at (833) 724-8902.
Contact our support team at (833) 724-8902 or Support@elitegaragetools.com. Have your order number ready. For warranty issues, do not disassemble the equipment before speaking with us as this may affect warranty eligibility.
Yes. All products include manufacturer warranty coverage. Coverage varies by brand: Katool includes 1-year parts warranty plus 3-year structural warranty on vehicle lifts. AMGO includes 5-year structural, 3-year hydraulic, and 2-year electrical coverage. Tuxedo and iDEAL include 5-year structural and 1-year parts warranty. Specific warranty terms are listed on each product page.
Contact us at (833) 724-8902) or Support@elitegaragetools.com with your order number and a description of the issue. Photos or video of the defect are typically required. Do not disassemble equipment prior to claim approval as this may void warranty coverage.
Yes. Replacement parts are available for all brands we carry. Out of warranty parts can be purchased. Contact us for availability and pricing.

Can't find what you're looking for? Our team is here to help.

Call or Text: (833) 724-8902  |  Support@elitegaragetools.com

🔍 Not Sure Which Lift Is Right For You?

Answer 6 quick questions and we'll match you with the perfect lift for your garage.

Take the Lift Finder Quiz →
Description

Atlas PV12PX 12,000 lb Overhead 2-Post Lift

The Atlas PV12PX 12,000 lb Overhead 2-Post Lift is a heavy-duty automotive lift designed for shops and garages that need the capacity and dimensions to service everything from passenger cars to larger, long-wheelbase trucks. With a 12,000 lb lifting capacity, extra-wide column spacing, symmetric arms, and multiple overhead height configurations, the PV12PX provides the versatility needed for demanding vehicle service applications.

12,000 lb Heavy-Duty Lifting Capacity

With its 12,000 lb capacity, the Atlas PV12PX provides additional lifting capability for heavier pickups, vans, SUVs, and other vehicles while maintaining the low pad height needed to accommodate many passenger cars.

The combination of extended symmetric arms and multiple truck adapters provides flexibility when positioning the lift arms under vehicles with different wheelbases, frame heights, and lifting-point locations.

Extra-Wide 109.5" Drive-Through Clearance

The PV12PX provides an impressive 109.5 inches of drive-through clearance with 123.5 inches of inside-column space.

The additional width provides more room for positioning larger trucks and vehicles with wide mirrors between the columns, making the PV12PX an excellent option for shops that regularly service larger vehicles.

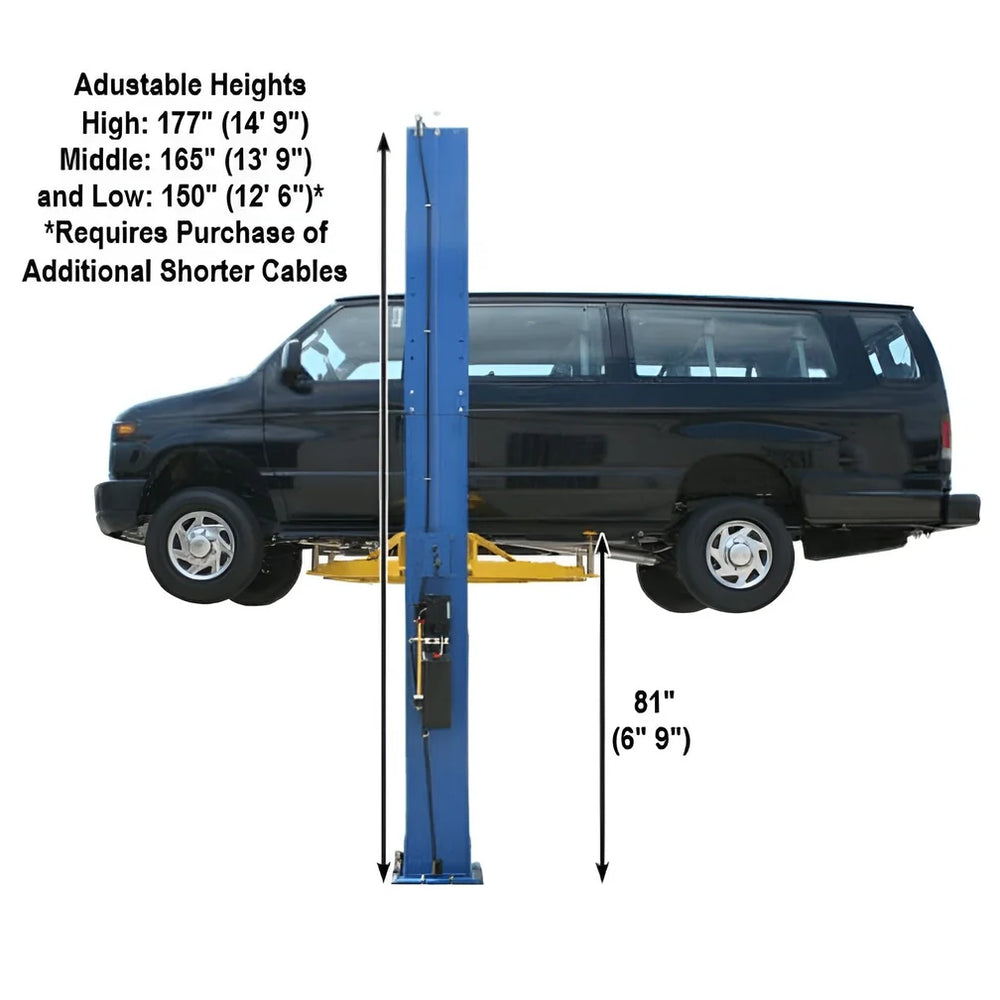

Three Adjustable Height Configurations

The Atlas PV12PX can accommodate different shop ceiling heights with three overhead height configurations: 150", 165", or 177".

The standard configurations provide overall heights of 165" (13' 9") or 177" (14' 9"). A special 150" (12' 6") low-height configuration is also available but requires the purchase of the appropriate extra-short cables.

This flexibility allows shops to select the configuration that works best with their available ceiling height and vehicle requirements.

Direct-Drive Hydraulic Cylinders

The PV12PX utilizes direct-drive hydraulic cylinders for dependable lifting performance. A single-point lock release allows the operator to disengage the mechanical safety locks from one location when preparing to lower the vehicle.

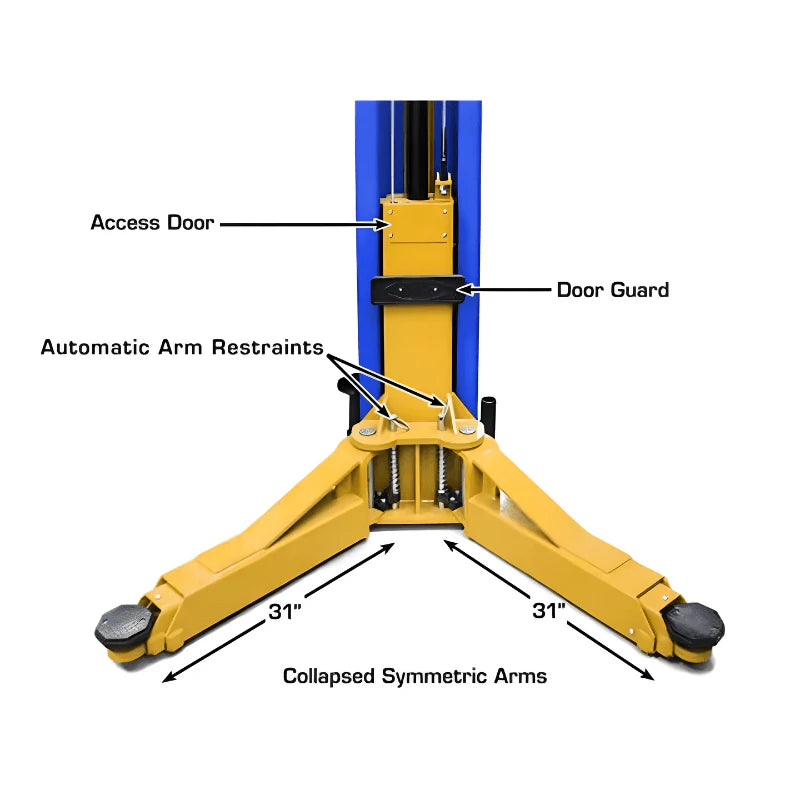

Automatic arm restraints help keep the lifting arms properly positioned once the vehicle is raised.

Built for Cars, Trucks & Longer Wheelbases

The symmetric arm configuration provides the reach needed to accommodate larger and longer-wheelbase vehicles. With a minimum arm height of just 4.5 inches, the PV12PX also maintains the flexibility needed for many lower passenger vehicles.

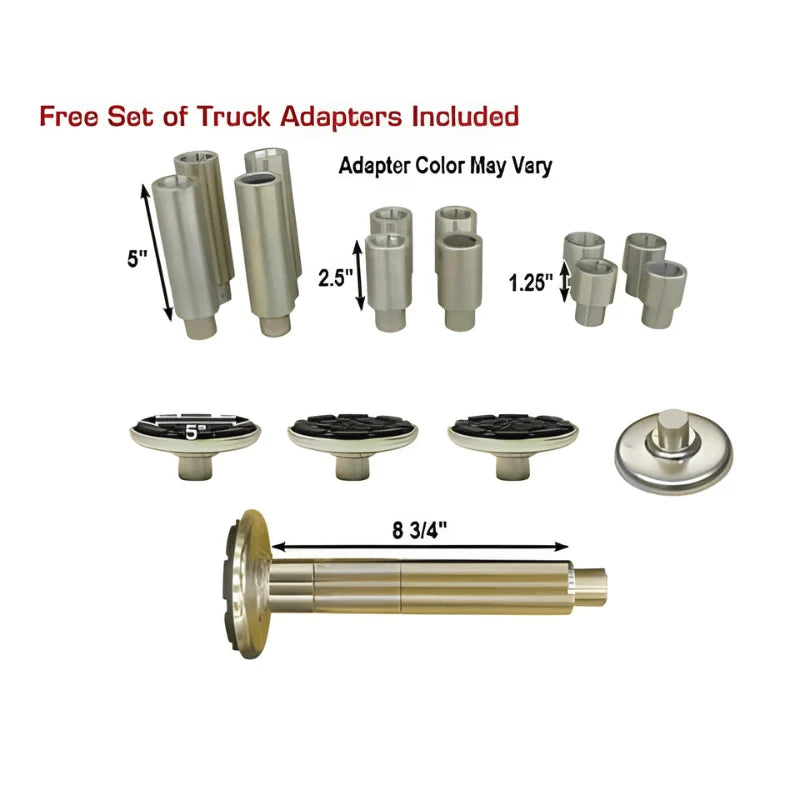

A 12-piece truck adapter set is included, providing additional height options when accessing lifting points on pickups, vans, and other taller vehicles.

Vehicle Protection Features

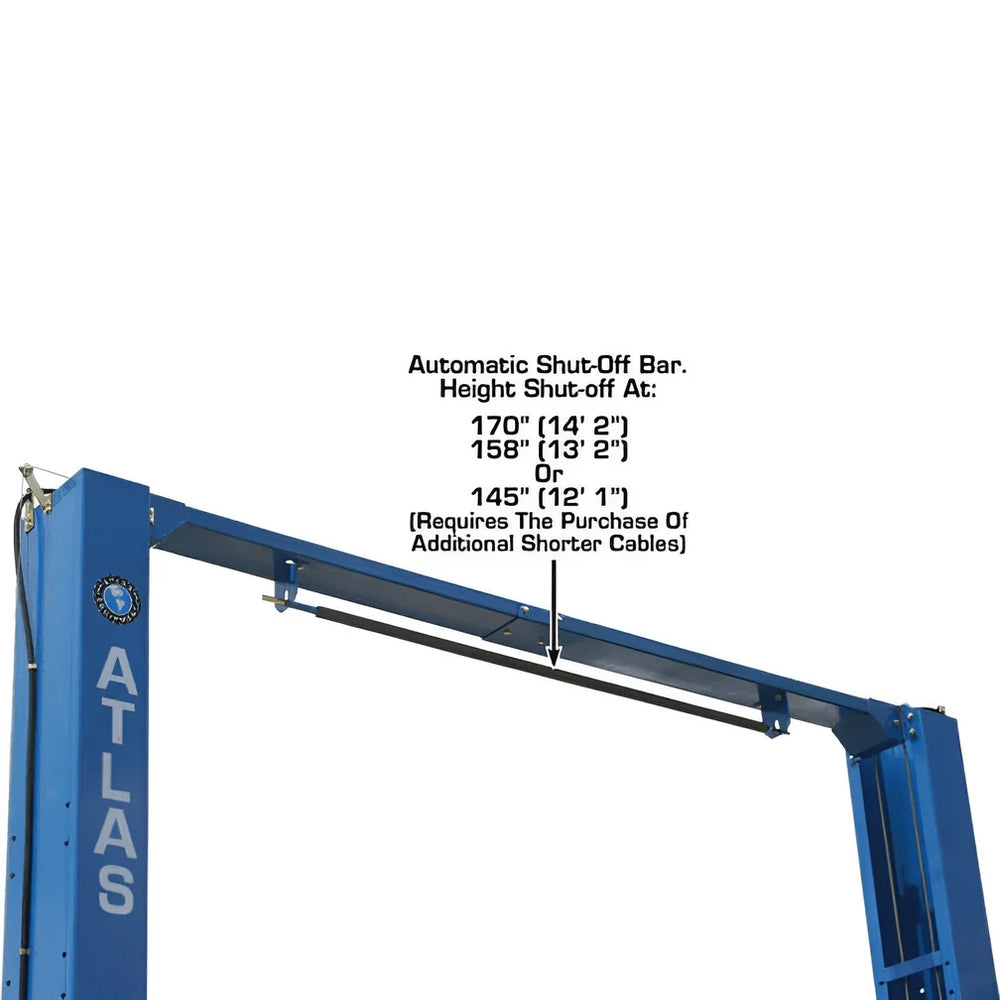

A padded overhead shut-off bar provides additional protection when raising taller vehicles. Protective door guards on the carriages also help reduce the chance of vehicle doors contacting the lift structure while the vehicle is positioned between the columns.

Atlas PV12PX Specifications

  • Lifting Capacity: 12,000 lbs.

  • Overall Height: 165" (13' 9") or 177" (14' 9")

  • Special Low-Height Configuration: 150" (12' 6") – requires additional cables

  • Overall Floor Width: 150.75" (12' 6.75")

  • Outside Column to Outside Column: 139.125" (11' 7.125")

  • Maximum Lift Height Without Adapters: 72.25"

  • Maximum Lift Height With Adapters: 81"

  • Minimum Arm Height: 4.5"

  • Inside Column Width: 123.5" (10' 3.5")

  • Drive-Through Clearance: 109.5" (9' 1.5")

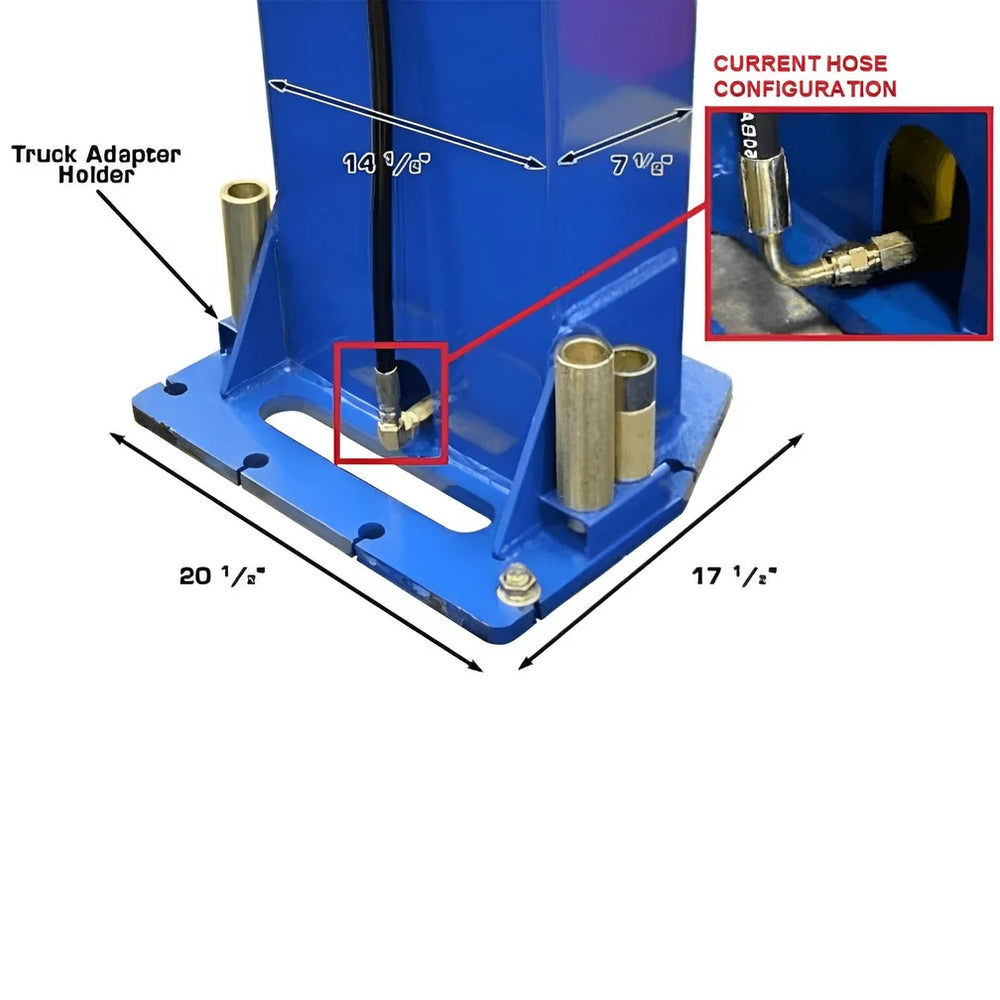

  • Column Size: 7.5" x 14.5"

  • Lift Base: 17.5" x 20.5"

  • Electrical Requirement: 220V, Single Phase

  • Recommended Breaker: 30 Amp

  • Hydraulic Oil Requirement: 3–5 Gallons AW32/AW46 (Not Included)

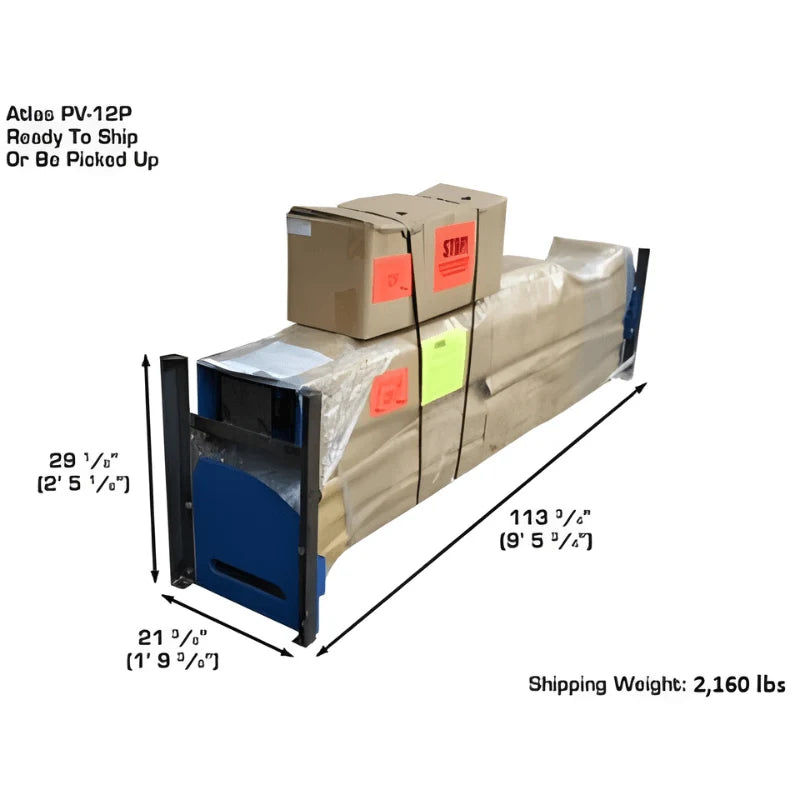

  • Shipping Weight: Approximately 2,160 lbs.

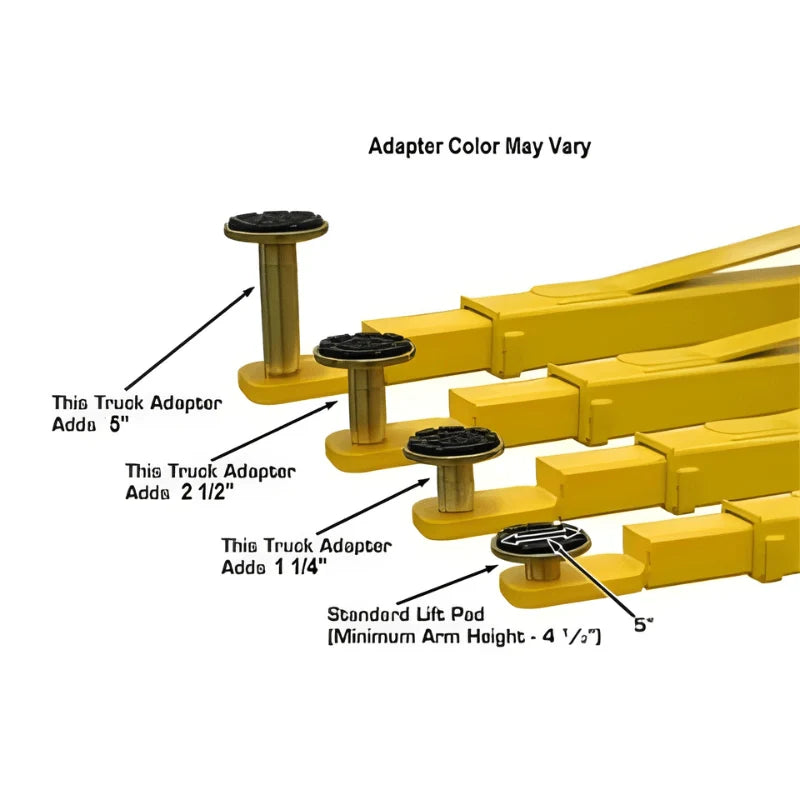

  • Adapter Heights: Four Each – 1.25", 2.5" and 5"

  • Arm Hole / Adapter Peg Size: 1.5"

  • Concrete Requirement: Minimum 6" Thick, 3,000 PSI

Key Features

  • 12,000 lb Heavy-Duty Lifting Capacity

  • Extra-Tall & Extra-Wide Design

  • Commercial-Grade Construction

  • 109.5" Drive-Through Clearance

  • Three Adjustable Height Configurations

  • Symmetric Lifting Arms

  • Direct-Drive Hydraulic Cylinders

  • Automatic Arm Restraints

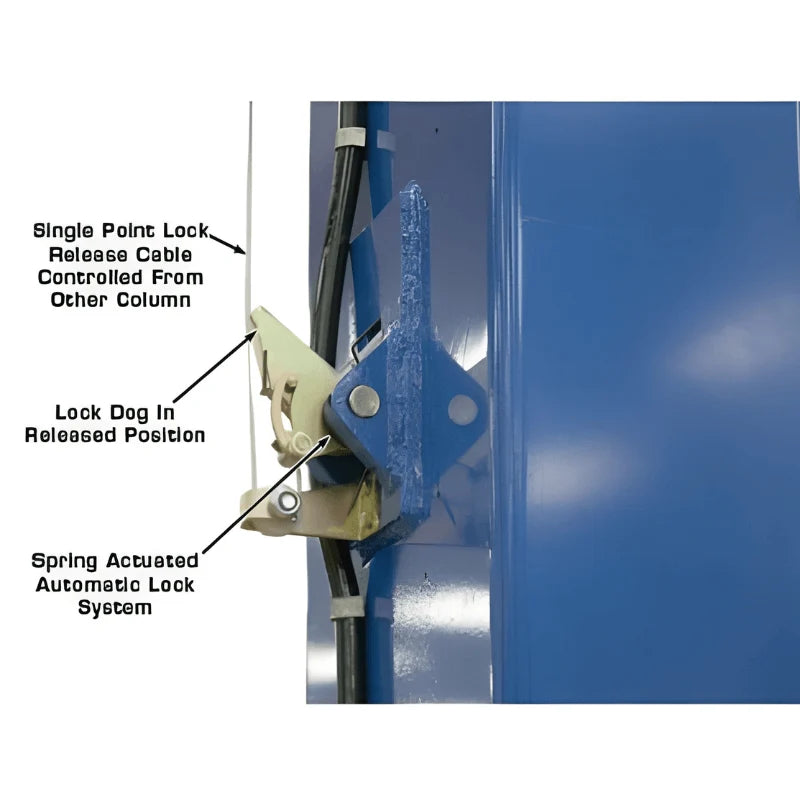

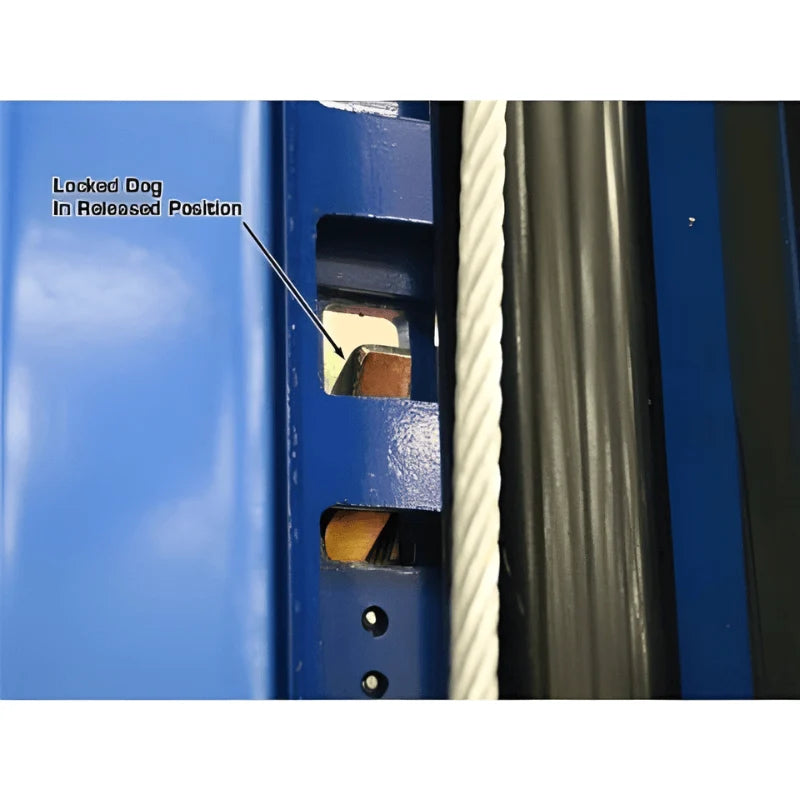

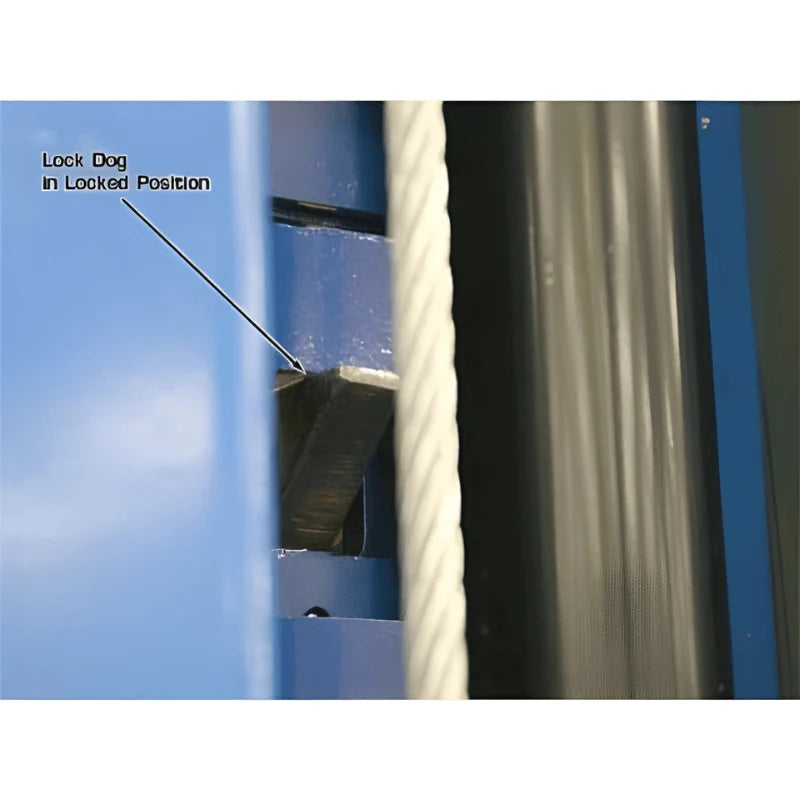

  • Single-Point Lock Release

  • Padded Overhead Shut-Off Bar

  • Protective Door Guards on Carriages

  • Powder-Coat Finish

  • 12-Piece Truck Adapter Set Included

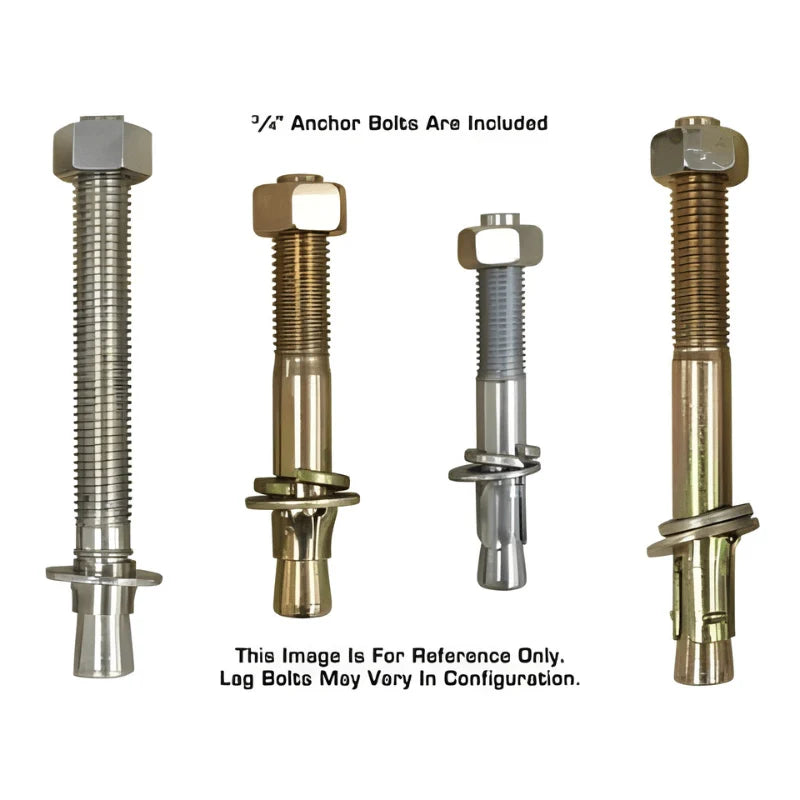

  • Mounting Hardware Included

Warranty

  • 5-Year Structural Warranty

  • 2-Year Hydraulic Warranty

  • 1-Year Power Unit Warranty

  • Parts Only

Atlas PV12PX Manual
