Katool KT-H115Z 11,000 lb Heavy-Duty Two-Post Lift

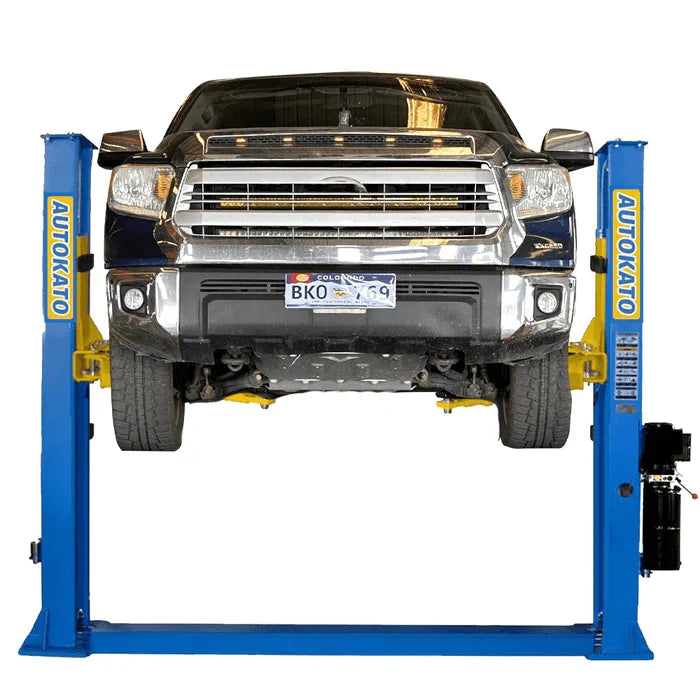

The Katool KT-H115Z 11,000 lb Two-Post Lift is built for garages and automotive shops that need additional lifting capacity for cars, SUVs, pickups, and other heavier vehicles. With an 11,000 lb lifting capacity, clear-floor configuration, and heavy-duty hydraulic lifting system, the KT-H115Z provides the workspace and versatility needed for a wide range of vehicle maintenance and repair jobs.

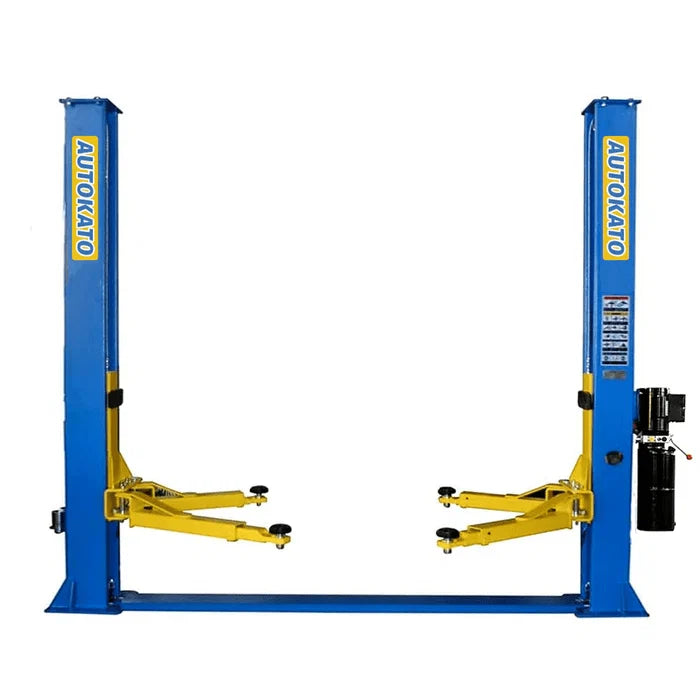

Clear-Floor Design for More Working Space
The clear-floor configuration keeps the area between the two columns free from floor-mounted crossbars and obstructions. This provides technicians with easier access underneath the vehicle and creates a cleaner workspace for service, maintenance, and repairs.
With 94.5 inches of drive-through clearance, the KT-H115Z provides plenty of room for positioning larger vehicles between the columns.

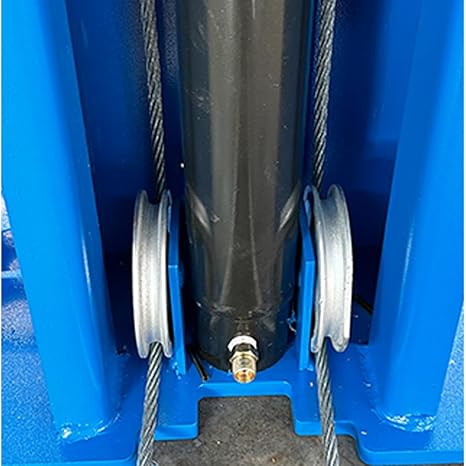

Heavy-Duty Hydraulic Lifting System
The KT-H115Z uses a dual hydraulic chain-drive system designed to provide smooth and consistent lifting. Its 2.2 kW motor supplies the hydraulic system with the power needed for demanding automotive lifting applications.
With a maximum lifting height of approximately 70.75 inches, the lift provides substantial under-vehicle working clearance once the vehicle is raised.
Automatic Safety Locking System
Safety locks located on both posts automatically engage as the vehicle is raised. Manual lock-release controls allow the operator to disengage the locks when preparing to lower the vehicle.

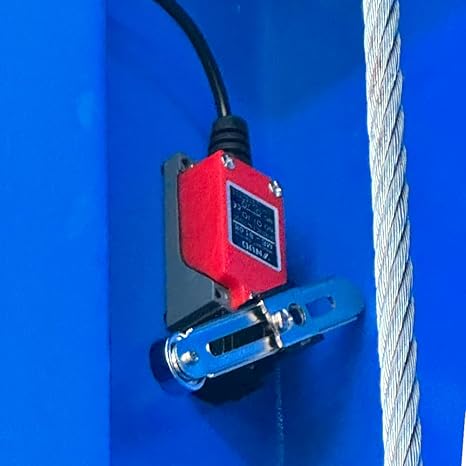

An overhead safety shutoff bar provides additional protection when raising taller vehicles by helping prevent contact with the overhead structure.

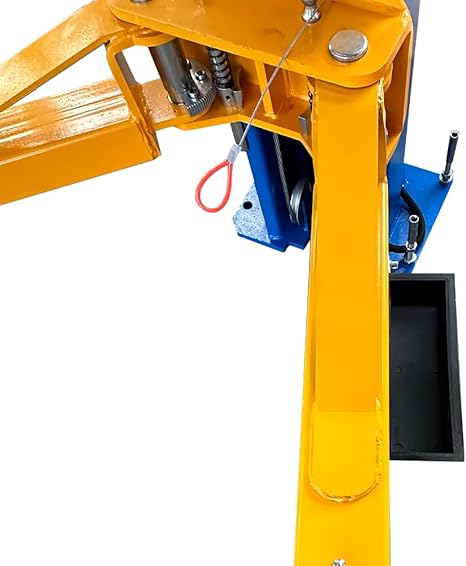

Adjustable Arms & Height Adapters
Adjustable lifting arms help accommodate different vehicle wheelbases and lifting-point locations. The included height extension adapters provide additional flexibility when working with trucks, SUVs, and vehicles with higher lifting points.
This versatility makes the Katool KT-H115Z a strong option for professional shops and serious home garages that regularly service different types of vehicles.
Katool KT-H115Z Specifications
-
Lifting Capacity: 11,000 lbs. (5,000 kg)
-
Maximum Lifting Height: 70.75"
-
Minimum Pad Height: 4.25"
-
Overall Height: 141.25"
-
Overall Width: 142.25"
-
Drive-Through Clearance: 94.5"
-
Front Arm Reach: 30.75"
-
Rear Arm Reach: 30.75"–50.5"
-
Motor Power: 2.2 kW
-
Electrical: 220V AC / 60Hz / Single Phase
-
Net Weight: Approximately 1,350 lbs. (620 kg)
Minimum Garage & Installation Requirements
Before ordering the Katool KT-H115Z, measure your available garage space and verify that your installation area meets all manufacturer requirements.
✔ Ceiling Height: Must provide sufficient clearance for the lift's 141.25" overall height, plus appropriate clearance for the vehicles being raised.
✔ Overall Lift Width: 142.25"
✔ Drive-Through Clearance: 94.5"
✔ Concrete Thickness: Minimum 6" (152.4 mm)
✔ Concrete Strength: Minimum 3,000 PSI
✔ Electrical: 220V AC / 60Hz / Single Phase / 2.2 kW
✔ Overall Lift Height: 141.25" (approximately 11' 9.25")
IMPORTANT: Concrete must meet the manufacturer's minimum installation requirements. Installing a vehicle lift on inadequate concrete can create a serious safety hazard. It is the customer's responsibility to verify the concrete thickness, condition, and strength before installation.
Available ceiling height must also account for the height of the vehicle while raised. Measure your garage and the vehicles you intend to lift before ordering.
Key Features
-
11,000 lb Heavy-Duty Lifting Capacity
-
Clear-Floor Two-Post Design
-
Dual Hydraulic Chain-Drive System
-
Automatic Safety Locks on Both Posts
-
Manual Safety Lock Release
-
Adjustable Lifting Arms
-
Height Extension Adapters Included
-
Overhead Safety Shutoff Bar
-
Rubber Pad Guards
-
Foot-Guard Rails
-
Integrated Toolbox
Katool KT-H115Z Installation Operations Manual
Pick-up location
-
- Bolingbrook, IL - 360 Veterans Pkwy, Unit 110, Bolingbrook, IL 60440
- Brookshire, TX - 2465 FM 359 South Rd, Building B Suite E, Brookshire, TX 77423
- Jersey City, NJ - 99 Caven Point Road Unit A, Jersey City, NJ 07305
- Pooler, GA - 88 Clyde Alexander Way, Pooler, GA 31322
- Walnut, CA - 19465 E Walnut Dr N, Walnut, CA 91789
Please feel free to Contact us before purchasing. Please let us know which warehouse would be the preferred pickup location. We can help to check the availability.
12 Months All Parts Warranty!
