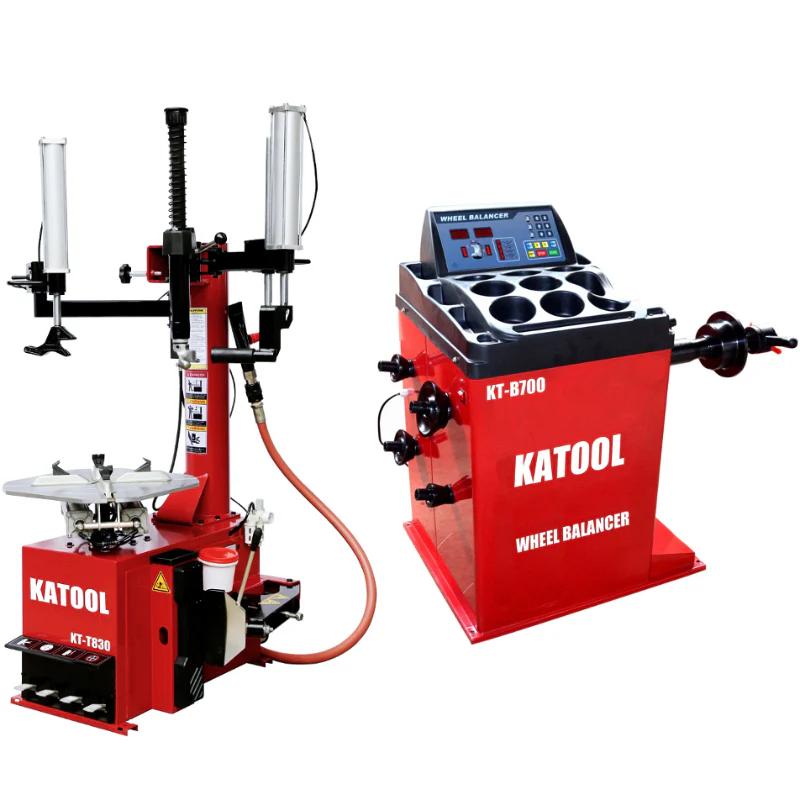

KT-T830 & KT-B700 Combo: Complete Tire Service Solution
Operational Challenges in Traditional Tire Service Tire service inefficiencies stem from separate equipment requirements for mounting and balancing, extended service times per vehicle, and improperly balanced wheels creating vibration, uneven wear, and potential roadside failures. These issues directly impact customer satisfaction, shop productivity, and long-term tire performance.

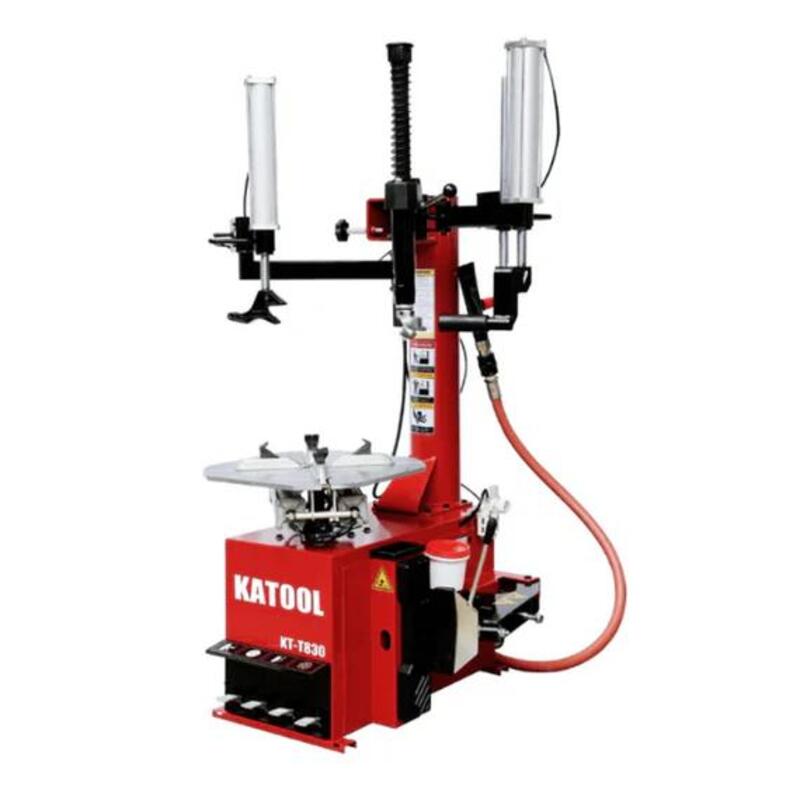

KT-T830 Tire Changer: Heavy-Duty Capacity and Dual Assist The KT-T830 processes tires up to 41 inches in diameter and 15 inches wide through 13"-26" outside and 14"-28" inside clamping ranges. The 2.0HP motor operating at 6.1 RPM provides controlled, rapid tire mounting and demounting. Dual side assist arms, bead blast seater head with auxiliary tank, and 186mm (φ186mm) stainless steel bead breaker cylinder handle challenging low-profile and stiff sidewall tires that resist standard changing methods.

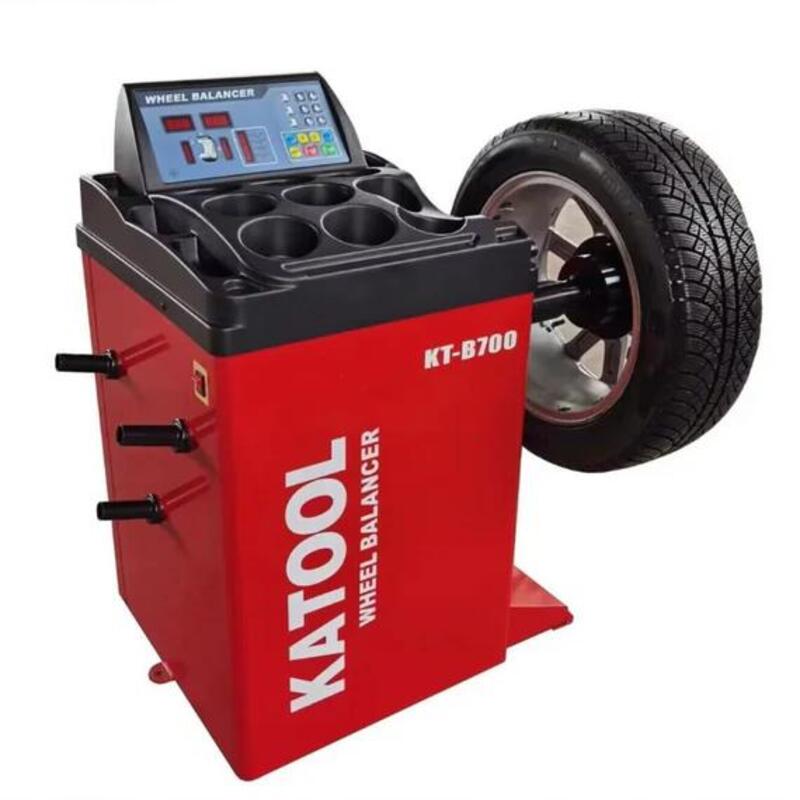

KT-B700 Wheel Balancer: Swift Precision Measurement Completes balance measurements in 7 seconds while maintaining ±1g accuracy. Handles rim diameters up to 34.64 inches (880mm) and wheel widths from 3" to 12". 3mm-thick steel construction with 8mm sensor support boards ensures stable operation during 180 RPM spin cycles. Built-in fault diagnosis and self-calibration with dual-side calibration eliminates preset parameters for simplified operation.
Integrated Service Benefits Combined tire changing and balancing capability reduces total service time per vehicle while improving quality consistency. The KT-T830's powerful motor and dual assist arms enable rapid tire replacements, while the KT-B700 immediately follows with swift, accurate balancing - creating seamless workflow that maximizes customer throughput and satisfaction.
Professional Investment Value This combination delivers superior performance and accessible operation, establishing it as an optimal equipment investment for automotive service professionals. Satisfied customers return for additional vehicle service, building long-term business relationships through quality tire service delivery.
Tire Changer T830 Specifications:
- Max Wheel Diameter: 41"/1040mm
- Max Wheel Width: 15"/380mm
- Outside Clamp: 12"-22"
- Inside Clamp: 14"-24"
- Power Supply: 120V 1PH
- Motor Power: 2.0HP/1.5KW
- Rotation Speed: 6.8r/min
- Air Pressure: 0.8-1.0Mpa (116-145psi)
- Net weight: 240KG/529lbs
Wheel Balancer B700 Specifications:
- Wheel Width: 3"-12"
- Wheel Diameter: <880mm/34.64"
- Balancing Speed: 180rpm
- Power Supply: 120V 1PH
- Motor Power: 0.25KW
- Rim Center Hole Dia.: <135mm/5.31"
- Balancing Accuracy: ±1g
- Measuring Time: 7S
- Wheel Weight: 143lbs
KT-T830 from Katool Special Features:
- Alloy steel jaw with interface carburization treatment of 0.8-1.1mm depth, complete quenching process creates interior jaw resilience and exterior hardness, includes jaw cover for wheel protection
- Mounting head fabricated from stainless steel with solution treatment and interface polishing, ergonomically designed shape with plastic cover for wheel safeguarding
- Inflation gauge with pedal operation
- Premium spade cover effectively prevents wheel damage
- Pull-style pedal control mechanism simplifies tire service and maintenance procedures
- High-grade motor with pure copper windings delivers enhanced power, accelerated heat dissipation, reduced failure rate, and extended service lifespan
- Premium lubricator ensures dependable oil distribution and effectively filters compressed air, extending pneumatic system service life
- North American configuration supports 110V/1ph/2.0HP motor for maximum power output and superior efficiency
- Dual side assist arm
- Bead blast seater head with auxiliary tank
- 186mm / 7.32" stainless bead breaker cylinder
- Enclosed housing protects internal components
KT-B700 from Katool Special Features:
- Housing constructed from 3mm-thick high-strength steel with solid welding and minimal vibration
- Integrated pressure sensor support design with 8mm thick base and side panels ensures stable sensor operation with elevated precision
- High-grade motor with pure copper windings delivers enhanced power, accelerated heat dissipation, reduced failure rate, and extended operational lifespan

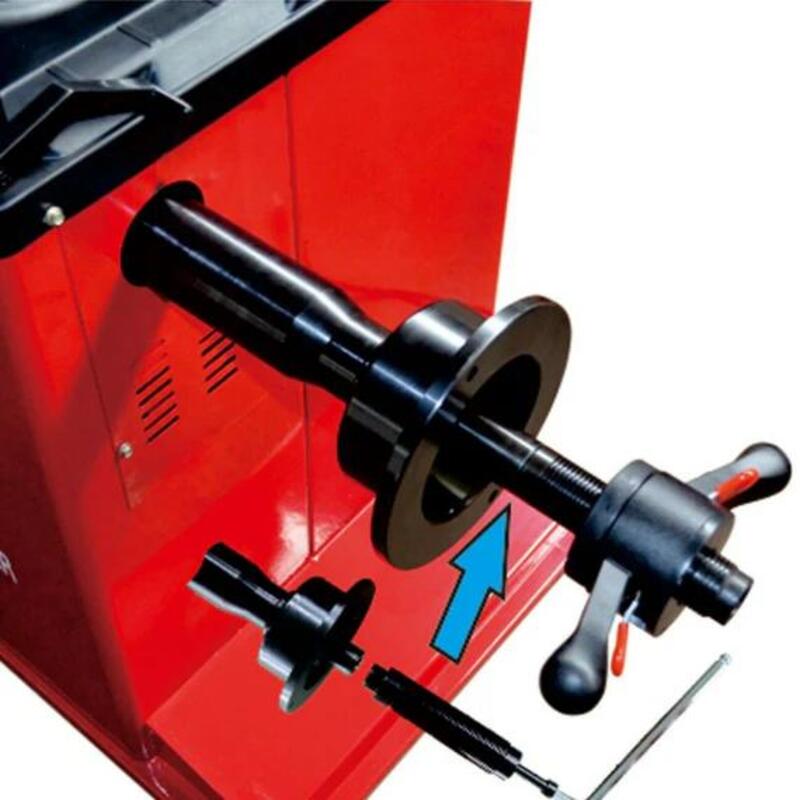

- 36mm shaft threading manufactured with quenching treatment provides elevated strength
- Circuit board utilizes advanced welding technology for moisture resistance, dust resistance, and antistatic properties
- Multiple balance modes for varying rim configurations provide enhanced precision
- Integrated fault diagnosis and self-calibration program with dual-side calibration. No preset parameters required for simplified user operation
- Unit selection (Ounce/Gram, MM/Inch)
- Premium integrated power board ensures stable and reliable function
- Optional wheel guard available
- Extended shaft compatible with wider wheels
- Katool Warranty: One-year (12 months) warranty covering all parts and product defects, free of charge to customers, on all equipment.
Why You Should Buy the Katool KT-T830 & KT-B700 Combo
This complete tire service package combines the KT-T830's dual side assist arms and 186mm stainless bead breaker cylinder for handling difficult tires up to 41 inches in diameter with the KT-B700's ±1g balancing accuracy and lightning-fast 7-second measurement time. The T830's bead blast seater head with auxiliary tank tackles stubborn beads, while the B700's 3mm-thick high-strength steel construction and integrated pressure sensor design deliver stable, precise balancing with built-in fault diagnosis and self-calibration. Purchasing as a combo saves money compared to buying separately while equipping your shop with professional-grade equipment featuring pure copper winding motors, advanced welding technology, and comprehensive moisture/dust protection. Backed by a one-year warranty on all parts, this package provides everything needed to deliver fast, accurate tire service from mounting to final balancing—perfect for shops demanding reliability and precision.
-
