Tire Service: KT-T810 Changer and KT-B700 Balancer
Integrated Equipment Package for Full-Cycle Service The Katool KT-T810 Tire Changer paired with the KT-B700 Wheel Balancer creates a comprehensive tire service solution addressing complete workflow from initial tire mounting through final precision balancing. This matched equipment combination serves commercial shops and dedicated garage workspaces requiring professional-grade performance across passenger vehicles and light-duty trucks.
KT-T810 Tire Changer: Capacity and Performance Processes tires up to 41 inches in diameter and 15 inches in width across 12-22 inch outside clamp range and 14-24 inch inside clamp range. The 2.0HP motor operating at 6.8 RPM provides consistent torque for tire dismounting and mounting. Includes bead blast seater head with auxiliary tank for stubborn bead seating - a critical feature distinguishing the T810 from the standard T800 model.
Premium Construction FeaturesAlloy steel jaw with 0.8-1.1mm carburization treatment and complete quenching creates interior toughness and exterior hardness. Stainless steel mounting head with solution treatment protects wheel finishes. High-quality lubricator filters compressed air and extends pneumatic system service life. Enclosed body design protects internal components from shop debris.
KT-B700 Wheel Balancer: Speed and Precision Completes balance measurements in 7 seconds while maintaining ±1g accuracy. Handles rim diameters up to 34.64 inches (880mm) and wheel widths from 3" to 12". 3mm-thick steel construction with 8mm sensor support boards ensures stable operation during 180 RPM spin cycles. Built-in fault diagnosis and self-calibration with dual-side calibration eliminates preset parameters.
Combined Workflow Efficiency Integrated tire changing and balancing reduces total service time per vehicle. Purchasing as a matched set ensures compatible specifications and streamlined transitions between mounting and balancing stations.

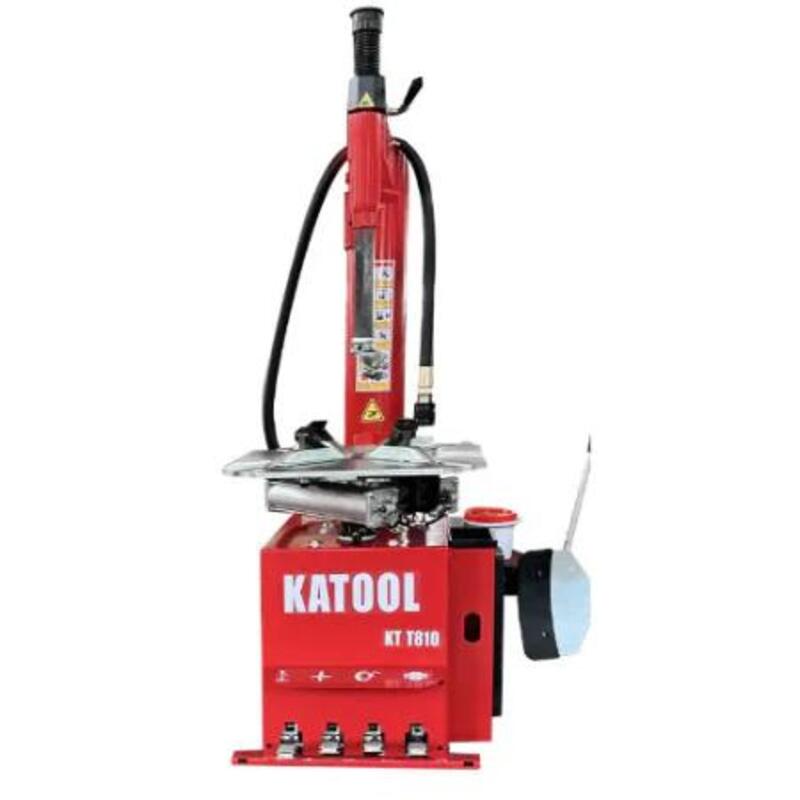

Tire Changer Machine KT-T810:
Max Wheel Diameter :
41"/1040mm
Max Wheel Width :
15"/380mm
Outside Clamp:
12"-22"
Inside Clamp :
14"-24"
Power Supply:
120V 1PH
Motor Power:
2.0HP/1.5KW
Rotation Speed :
6.8r/min
Air Pressure :
0.8-1.0Mpa(116-145psi)
Net weight :
186KG
Advanced Jaw EngineeringAlloy steel jaw with interface carburization treatment to 0.8-1.1mm depth followed by complete quenching process creates interior jaw toughness while hardening the exterior surface. Jaw covers protect wheel rims during clamping operations.
Rim-Safe Mounting ComponentsStainless steel mounting head receives solution treatment and interface polishing, with ergonomic shaping based on engineering principles. Accompanying plastic cover provides additional rim protection during tire bead manipulation.
Operational Controls and ProtectionPull-type pedal control system simplifies tire changing and maintenance procedures through foot-operated commands. Inflation gauge with pedal control enables tire pressure monitoring and adjustment. High-quality spade cover prevents rim damage during bead breaking operations.
Motor and Pneumatic System QualityTop-level motor with pure copper winding delivers rapid heat dissipation, low defect rate, and extended operational lifespan. North American configuration utilizes 120V/1ph/2.0HP motor for enhanced power output and high-efficiency operation. High-quality filter provides reliable oil distribution while effectively filtering pressurized air, extending pneumatic system service life.
Protective EnclosureClosed body design protects internal components from shop debris, extending parts longevity and reducing maintenance requirements.

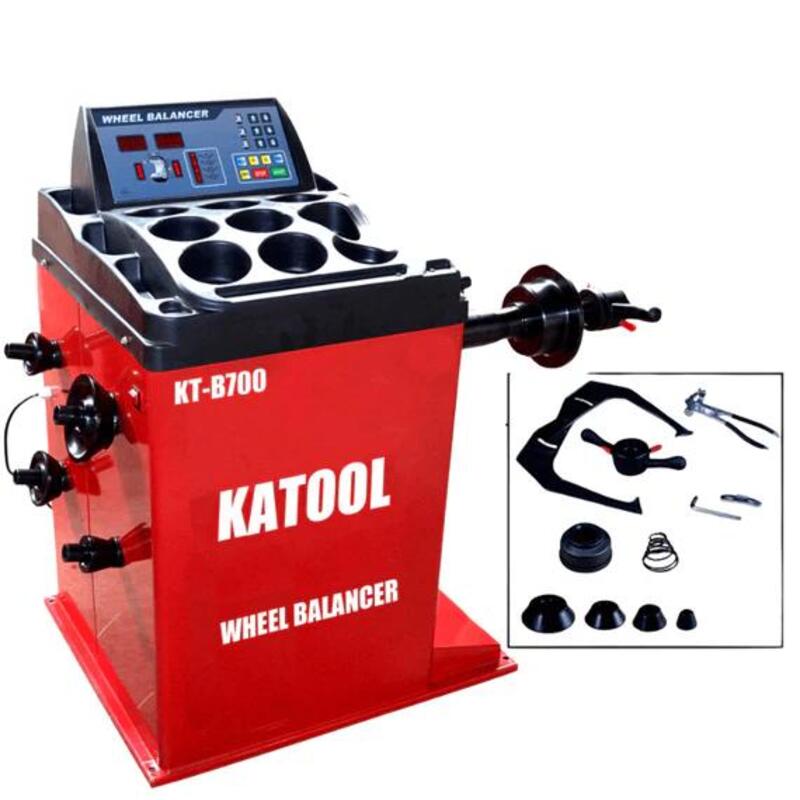

Wheel Balancer KT-B700:
Rim Diameter:
<30"
Wheel Width:
3"-12"
Wheel Diameter:
<880mm
Balancing Speed:
180rpm
Power Supply:
120V 1PH
Motor Power:
0.25KW
Rim Center Hole Dia.:
<135mm
Wheel Weight:
<65KG
Balancing Accuracy:
±1g
Measuring Time:
7S
Premium Wheel Balancer Construction Features:
Robust Structural Design3mm-thick steel body construction with high strength, solid welding, and minimal vibration during operation ensures stable platform performance during spin cycles.
Integrated Pressure Sensor SupportAll-in-one pressure sensor support design with 8mm-thick bottom board and 8mm-thick side board ensures stable sensor operation and high-precision measurement accuracy throughout the balancing process.
High-Performance Motor EngineeringTop-level motor with pure copper winding provides enhanced power output, rapid heat dissipation, reduced defect rate, and extended operational lifespan under continuous use.
Heavy-Duty Shaft Construction36mm (φ36mm) shaft threading manufactured with quenching treatment delivers high strength for supporting heavy wheel assemblies during spin cycles.
Advanced Circuit Board TechnologyComputer board utilizes advanced welding technology creating moisture-proof, dust-proof, and anti-static properties, ensuring extended component life in shop environments with fluctuating conditions.
Multiple Balance ModesVarious balance modes accommodate different rim types with specific balance settings, making balance results more precise across diverse wheel applications.
Simplified Operation FeaturesBuilt-in fault diagnosis and self-calibration program with dual-side calibration eliminates memory parameters, making operation easier through automated setup. Unit selection capability (Ounce/Gram, MM/Inch) provides measurement flexibility.
Quality Power ComponentsHigh-quality integrated power board ensures stable and reliable electrical operation during continuous use.
Optional and Extended FeaturesWheel guard available as optional safety equipment. Longer shaft accommodates wider wheels beyond standard passenger vehicle specifications.
15 Months All Parts Warranty For Wheel Balancer KT-B700.
