KT810 Tire Changer and B760 Wheel Balancer Combo by Katool
Integrated Tire Service Equipment Package Managing separate tire changing and balancing operations creates workflow inefficiencies and extended service times. The Katool KT-T810 Tire Changer & KT-B760 Wheel Balancer Combo consolidates complete tire service capability into a matched equipment set, streamlining operations from initial tire mounting through final precision balancing.

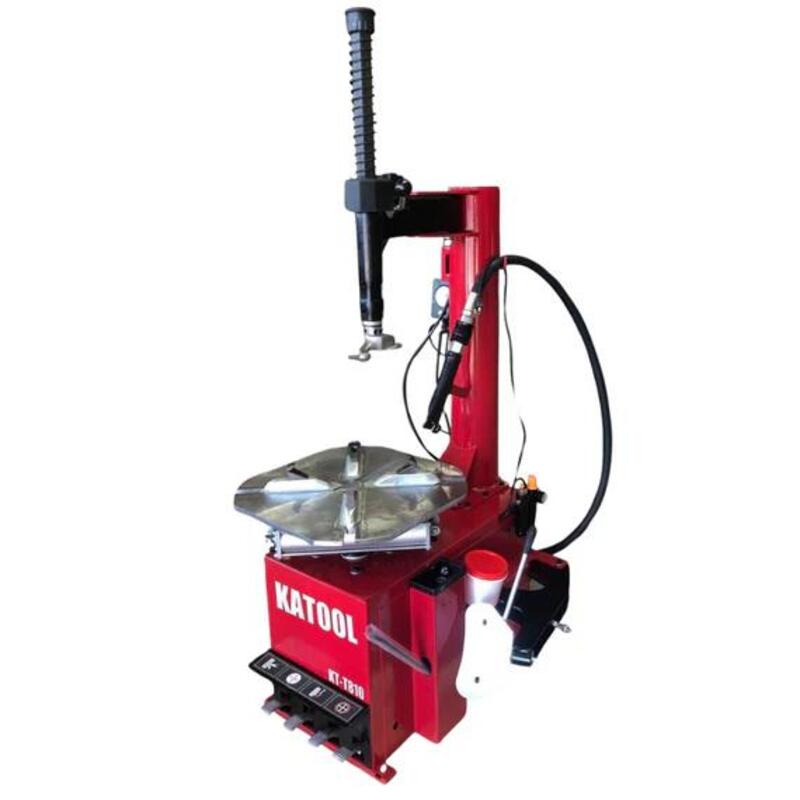

KT-T810 Tire Changer: Capacity and Speed Processes tires up to 41 inches in diameter and 15 inches wide across 12-22 inch outside clamp and 14-24 inch inside clamp ranges. The 2.0HP motor operating at 6.8 RPM enables rapid tire mounting and removal operations. The bead blast seater head with auxiliary tank forces stubborn tire beads onto rim flanges, completing the mounting process in minutes rather than extended manual effort.

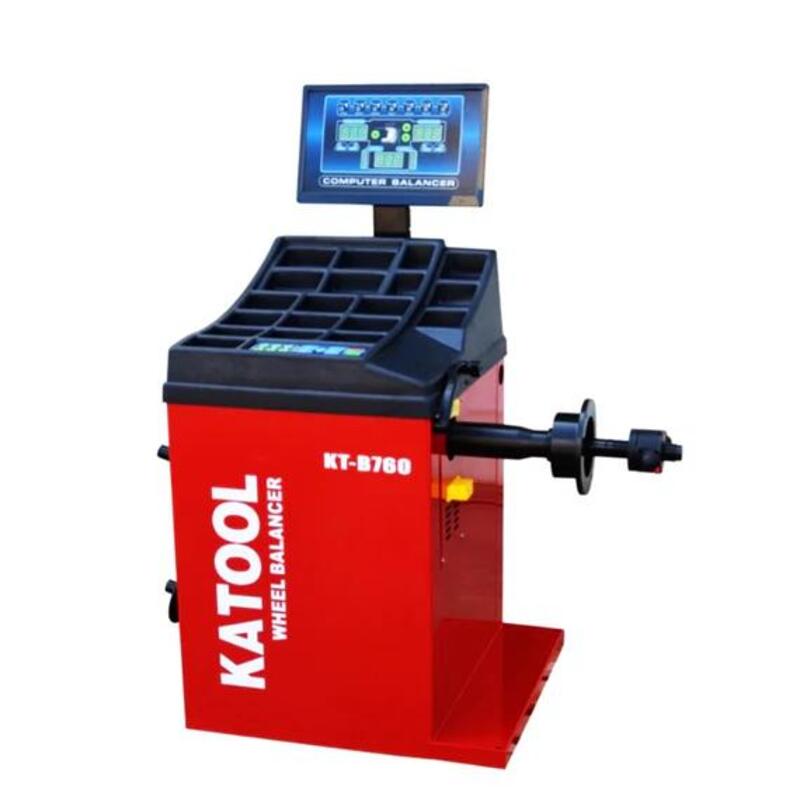

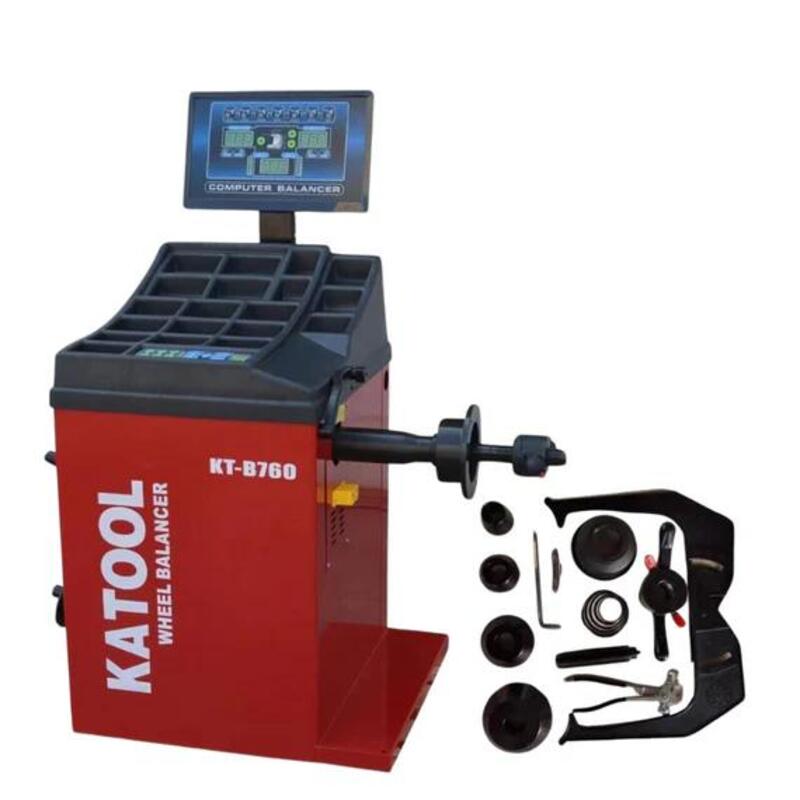

KT-B760 Wheel Balancer: Precision in 7 Seconds Completes balance measurements in 7 seconds while maintaining ±1g accuracy, enabling immediate transition from tire mounting to balanced wheel delivery. Handles rim diameters up to 30 inches and wheel widths from 3" to 12". 3mm-thick steel construction with 8mm sensor support boards ensures stable operation during 180 RPM spin cycles.
Combined Workflow Efficiency Envision complete tire service - mounting, removal, and precision balancing - accomplished within minutes per wheel. The KT-T810 executes tire replacements rapidly through powerful motor operation and bead-seating capability. The KT-B760 immediately follows with swift, accurate balancing, creating seamless workflow transitions that maximize customer throughput.
Comprehensive Service Solution This combination delivers the robust equipment required to satisfy customers through accelerated service delivery and exceptional balance quality. Purchasing as a matched set ensures compatible specifications, streamlined workspace layout, and comprehensive tire service capability from a single equipment investment.
Tire Changer T810 Specifications:
Max Wheel Diameter: 41"/1040mm
Max Wheel Width: 15"/380mm
Outside Clamp: 12"-22"
Inside Clamp: 14"-24"
Power Supply: 120V 1PH
Motor Power: 2.0HP/1.5KW
Rotation Speed: 6.8r/min
Air Pressure: 0.8-1.0Mpa (116-145psi)
Net weight: 186KG
Wheel Balancer B760 Specifications:
Rim Diameter: <30"
Wheel Width: 3"-12"
Wheel Diameter: <880mm/34.64"
Balancing Speed: 180rpm
Power Supply: 110V 1PH
Motor Power: 0.25KW
Rim Center Hole Dia.: <135mm/5.31"
Wheel Weight: 143lbs
Balancing Accuracy: ±1g
Measuring Time: 7S
KT-T810 from Katool Special Features:
Alloy steel jaw with interface carburization treatment (0.8-1.1mm depth)
Stainless steel mounting head with solution treatment and interface polishing

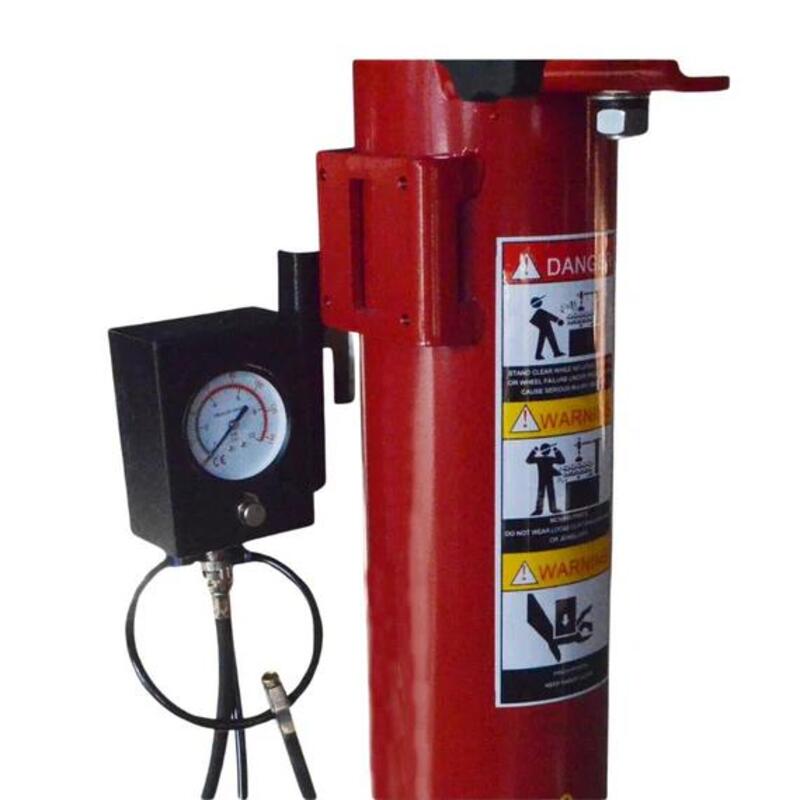

Inflation gauge with pedal operation
Premium spade cover
Pull-style pedal control mechanism
High-grade motor with pure copper windings
Bead blast seater head with auxiliary tank
Premium filter for pneumatic system
120V/1ph/2.0HP motor for North American applications
Enclosed housing design
KT-B760 from Katool Special Features:
Housing fabricated from 3mm-thick high-strength steel for longevity and stability
Integrated pressure sensor support design with 8mm thick base and side panels for stable, accurate sensor function
High-grade motor with pure copper windings for enhanced power, accelerated heat dissipation, reduced failure rate, and extended lifespan
36mm shaft threading manufactured with quenching treatment provides elevated strength
Moisture-resistant, dust-resistant, and antistatic circuit board ensures durability and dependability
Multiple balance modes for varying rim configurations provide precision balancing across diverse applications
Integrated fault diagnosis and self-calibration program with dual-side calibration for user-friendly operation
Unit selection (Ounce/Gram, MM/Inch) for measurement flexibility
Premium integrated power board ensures stable and reliable function
Optional wheel guard available for enhanced operational safety
Extended shaft compatible with wider wheels provides adaptability for handling various wheel dimensions
Katool Warranty: One-year (12 months) warranty covering all parts and product defects at no charge to customers on all equipment
Why You Should Buy the Katool KT-T810 & KT-B760 Combo
Complete Professional Tire Service Package
Matched Equipment for Full-Cycle Tire Service This comprehensive solution pairs the KT-T810 Tire Changer with the KT-B760 Wheel Balancer, creating integrated capability from initial tire mounting through final precision balancing. The matched set eliminates compatibility concerns while streamlining workflow transitions between changing and balancing stations.
KT-T810: Power and Stubborn Bead Management The 2.0HP motor processes wheels up to 41 inches in diameter and 15 inches wide with consistent torque across varying tire constructions. The bead blast seater head with auxiliary tank distinguishes this model by forcing air volume into bead seat areas, overcoming the resistance that prevents stubborn tire beads from seating with standard inflation methods.
KT-B760: Rapid Precision Measurement Delivers ±1g balancing accuracy while completing measurement cycles in 7 seconds - minimizing customer wait times without sacrificing professional-grade precision. 3mm-thick high-strength steel construction with integrated pressure sensor design (featuring 8mm-thick base and side boards) ensures stable operation during spin cycles. Multiple balance modes accommodate different rim types with specific settings for enhanced accuracy.
Combo Purchase Advantages Purchasing as a combination package provides cost savings compared to separate equipment acquisition while ensuring compatible specifications between tire changer capacity and wheel balancer accommodation. The integrated approach equips facilities with complete professional tire service capability from a single equipment investment.
Warranty CoverageOne-year warranty on all parts protects both the tire changer and wheel balancer components, providing comprehensive coverage for shops and serious enthusiasts demanding speed, precision, and reliability in tire service operations.
