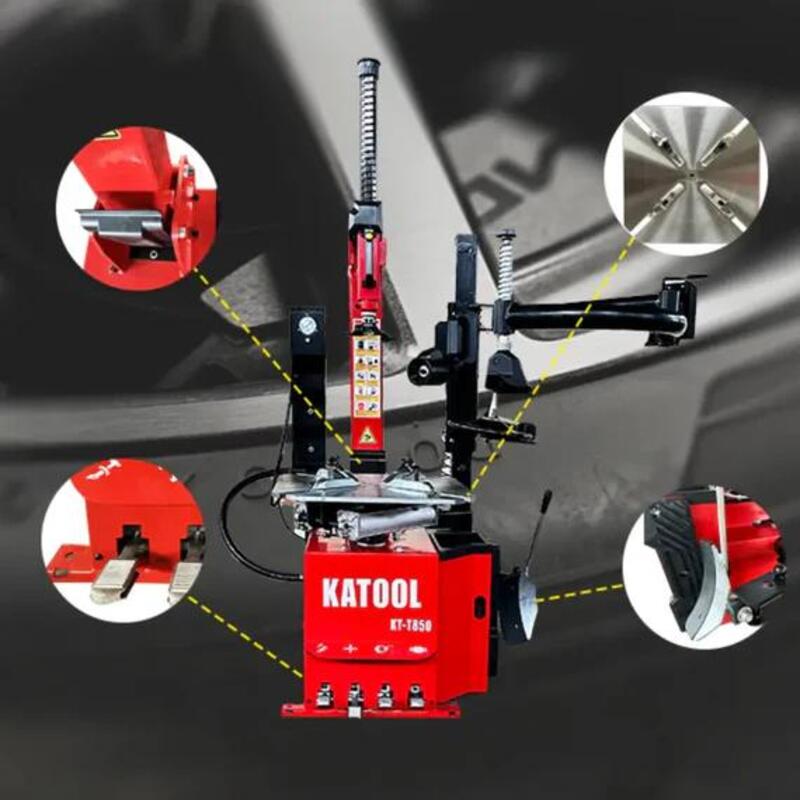

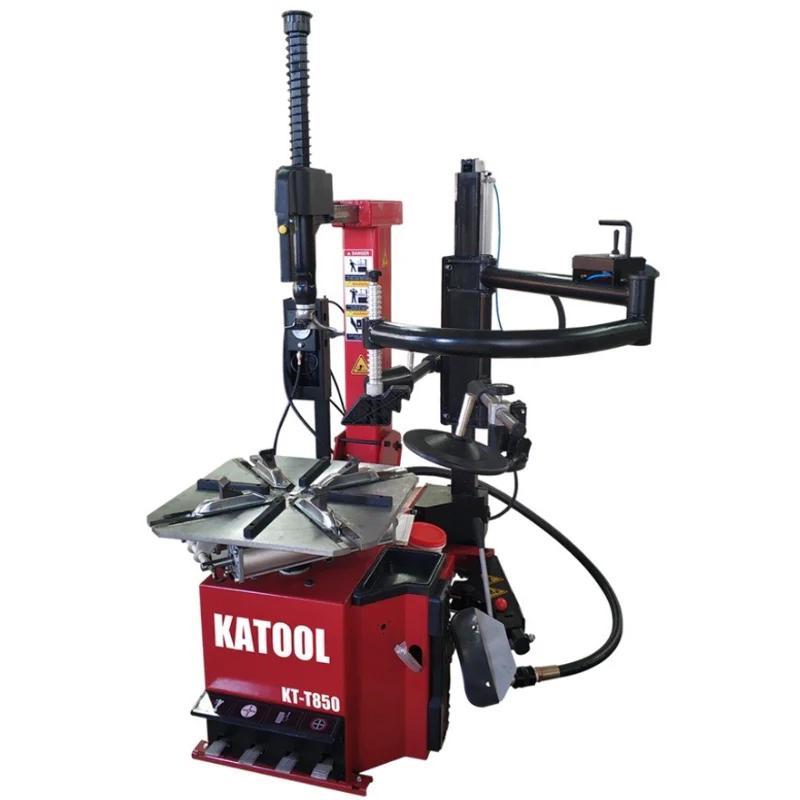

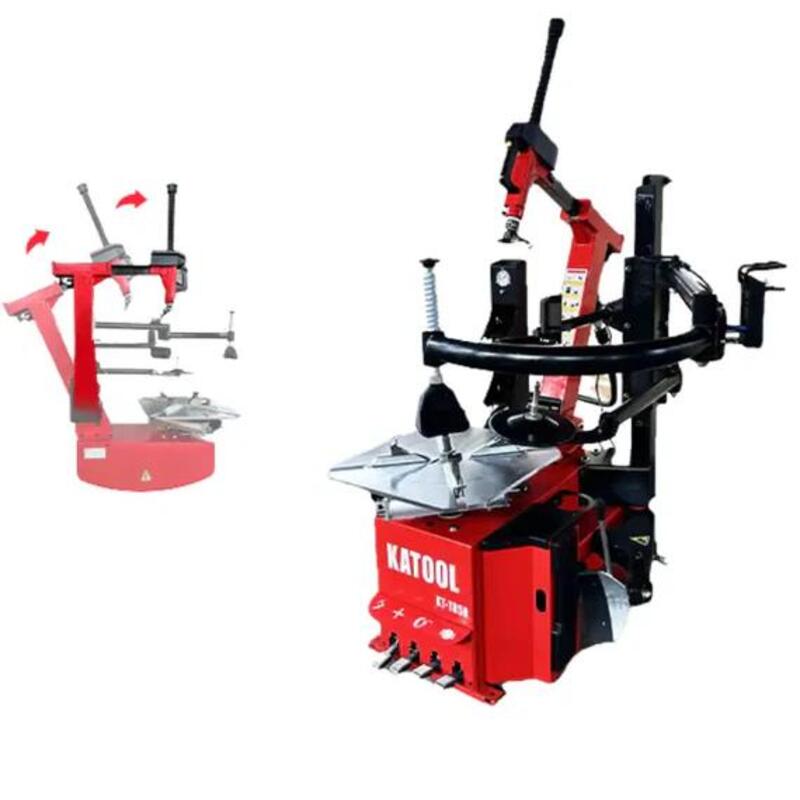

Katool KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine

Katool KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine

by Katool
$2,699.00
✅ No Sales Tax (Except Utah)
Shipping
Availability: ✅ In stock, ready to be shipped
🚚 Ships In:
1–3 Business Days
→
📦 Delivers In:
Estimated 3–7 Days

📞 Want a Better Deal? Give Us a Call!

Extra Savings

See a lower price from another authorized seller? Send it over and we’ll beat it.

📞 (833) 724-8902
Call or text, real people, no pressure
Price Match Guarantee Authorized US Retailer Full Manufacturer Warranty

Notify me when back in stock

Katool KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine

Heavy-Duty Tilt-Arm Tire Changer: KT-T850

Extended Capacity for Oversized Tires The Katool KT-T850 Tilt-Arm Tire Changer handles tires up to 47 inches in diameter and 15 inches wide - exceeding standard tire changer capacity to accommodate larger truck, SUV, and specialty vehicle applications. The comprehensive clamping system spans 14"-26" exterior and 16"-28" interior ranges, providing secure wheel holding across diverse rim configurations.

Powerful Motor and Pneumatic Specifications The 2.0HP motor operating at 6.8 RPM rotation speed maintains consistent torque throughout tire mounting and demounting cycles. 0.8-1.0 Mpa (116-145 PSI) air pressure specification ensures optimal pneumatic component performance for bead breaking and auxiliary functions.

Heavy Construction for High-Volume Operation At 750 pounds (340kg) net weight, this equipment provides substantial stability during operation - critical for high-volume commercial facilities where continuous daily use demands reliable, vibration-free performance. The substantial mass eliminates movement during aggressive bead breaking or difficult tire manipulation.

Complete Service Feature Set Includes assist arms for additional leverage on challenging tires, bead blast seater for forcing stubborn beads onto rim flanges, and 200mm aluminum bead breaker cylinder generating powerful separation force. The alloy steel jaw with 0.8-1.1mm carburization treatment and stainless steel mounting head with solution treatment protect wheel finishes during service.

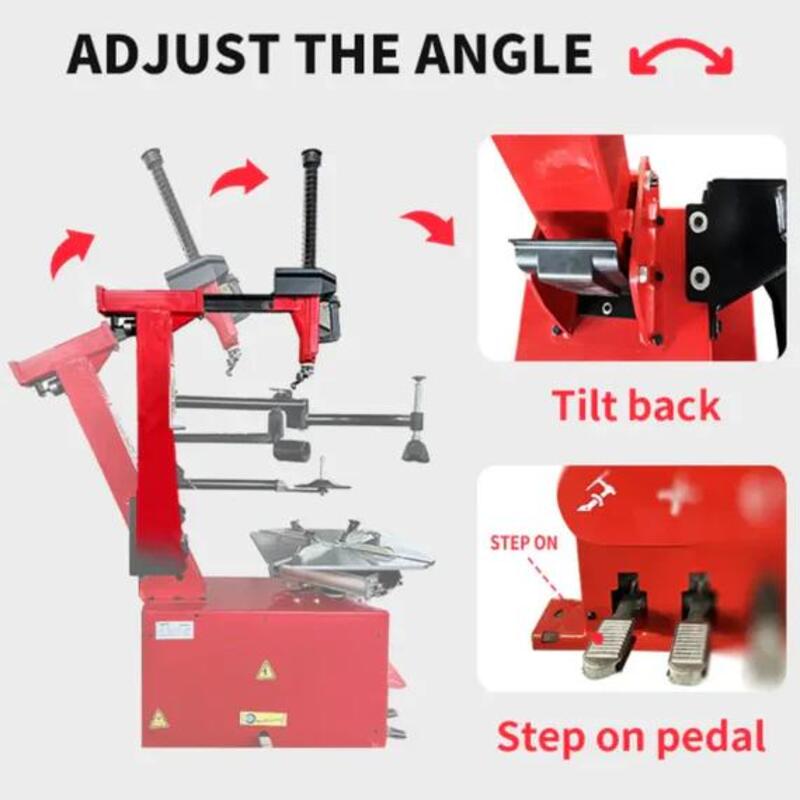

Operational Simplicity and Longevity Pull-type pedal control system simplifies operation through foot-operated commands. High-quality lubricator provides reliable oil distribution while filtering compressed air, extending pneumatic system service life. Top-level motor with pure copper windings ensures rapid heat dissipation and extended operational lifespan under continuous commercial use.

Tire Changer T850 Specifications:

KT-T850 from Katool Special Features:

 Katool KT-T850 Instruction Manual



Simply browse our products, select your options, and click Add to Cart. You can checkout securely using a credit card, Shop Pay, PayPal, or other payment options. If you have questions before ordering, call or text us at (833) 724-8902.
We accept Visa, MasterCard, American Express, Discover, Shop Pay, Apple Pay, Google Pay, and PayPal. Shop Pay Installments is also available, allowing you to split your purchase into monthly payments.
Yes. Call or text us at (833) 724-8902 and our team will walk you through the order process and answer any questions about the equipment.
Yes. Shop Pay Installments is available at checkout on qualifying orders. You can split your purchase into manageable monthly payments. The monthly estimate is shown on each product page.
You will receive an order confirmation email immediately after purchase. Your order will be processed and shipped within 1 to 3 business days. Once shipped, you will receive a tracking number via email.
Orders ship within 1 to 3 business days from our US warehouses. Estimated delivery is typically 3 to 7 business days depending on your location. Shipping estimates are approximate and may vary by carrier.
Shipping costs vary by product and are shown at checkout before you complete your purchase. Some products include free warehouse pickup options at our US locations.
We ship from US warehouses located in California, Texas, Georgia, Illinois, Michigan, and New Jersey. Your order ships from the warehouse closest to your delivery address.
Yes. Free warehouse pickup is available at the following locations: Azusa CA, City of Industry CA, Brookshire TX, Deer Park TX, Kalamazoo MI, Linden NJ, Pooler GA, and Romeoville IL. Contact us at (833) 724-8902 to arrange pickup.
Large equipment like car lifts ships via freight carrier on a flatbed or LTL truck. You are responsible for unloading the equipment at delivery. A forklift or equivalent equipment is required. The driver is not permitted to wait during manual unloading. The freight company will contact you in advance to schedule delivery.
Currently we ship within the continental United States only. For inquiries about shipments outside the 48 contiguous states please contact us directly.
We offer a 30-day return policy on qualifying products. Items must be unused, in original condition, and in original packaging. Please contact us at Support@elitegaragetools.com or (833) 724-8902 to initiate a return.
Inspect your shipment carefully before signing for delivery. If damage is visible, note it on the delivery receipt and take photos immediately. Contact us within 48 hours of delivery so we can assist with a claim. Do not refuse the shipment — accepting with noted damage is the correct procedure.
Restocking fees may apply depending on the product and condition. Contact us before returning any item and we will walk you through the process and any applicable fees.
Return shipping costs are the responsibility of the customer unless the return is due to a defect or error on our part. For heavy freight items, return shipping costs can be significant. Please contact us before placing your order if you have concerns.
Yes. Elite Garage Tools is an authorized US retailer for all brands we carry including Atlas Automotive, Katool, Tuxedo, AMGO, and iDEAL. All products are authentic, covered by manufacturer warranty, and ship from within the United States.
Yes. If you find a lower total price from another authorized US retailer on the same product, we will match it. Contact us with the competitor's listing and we will verify and match the price. See our full Price Match Guarantee policy for details.
The right lift depends on your ceiling height, vehicle weight, and intended use. Most residential garages with standard 10 to 12 ft ceilings work well with a 2-post or 4-post lift. We recommend calling us at (833) 724-8902 so our team can help you select the right equipment for your specific situation.
Most car lifts require a minimum concrete thickness of 4 to 6 inches with a PSI rating of at least 3,000. Specific requirements are listed on each product page. It is the customer's responsibility to verify concrete thickness and strength prior to installation.
Once your order ships you will receive a tracking number via email. For freight shipments, the carrier will contact you directly to schedule a delivery appointment. If you have not received tracking information within 3 business days of ordering, contact us at Support@elitegaragetools.com.
Open and inventory all packages within 48 hours of delivery. If any parts are missing, contact us immediately at (833) 724-8902 or Support@elitegaragetools.com with your order number and a list of missing items. Timely notification is required for us to resolve the issue.
Each product ships with a detailed installation manual. For additional installation questions contact us at (833) 724-8902.
Contact our support team at (833) 724-8902 or Support@elitegaragetools.com. Have your order number ready. For warranty issues, do not disassemble the equipment before speaking with us as this may affect warranty eligibility.
Yes. All products include manufacturer warranty coverage. Coverage varies by brand: Katool includes 1-year parts warranty plus 3-year structural warranty on vehicle lifts. AMGO includes 5-year structural, 3-year hydraulic, and 2-year electrical coverage. Tuxedo and iDEAL include 5-year structural and 1-year parts warranty. Specific warranty terms are listed on each product page.
Contact us at (833) 724-8902) or Support@elitegaragetools.com with your order number and a description of the issue. Photos or video of the defect are typically required. Do not disassemble equipment prior to claim approval as this may void warranty coverage.
Yes. Replacement parts are available for all brands we carry. Out of warranty parts can be purchased. Contact us for availability and pricing.

Can't find what you're looking for? Our team is here to help.

Call or Text: (833) 724-8902  |  Support@elitegaragetools.com

Description

Katool KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine

Heavy-Duty Tilt-Arm Tire Changer: KT-T850

Extended Capacity for Oversized Tires The Katool KT-T850 Tilt-Arm Tire Changer handles tires up to 47 inches in diameter and 15 inches wide - exceeding standard tire changer capacity to accommodate larger truck, SUV, and specialty vehicle applications. The comprehensive clamping system spans 14"-26" exterior and 16"-28" interior ranges, providing secure wheel holding across diverse rim configurations.

Powerful Motor and Pneumatic Specifications The 2.0HP motor operating at 6.8 RPM rotation speed maintains consistent torque throughout tire mounting and demounting cycles. 0.8-1.0 Mpa (116-145 PSI) air pressure specification ensures optimal pneumatic component performance for bead breaking and auxiliary functions.

Heavy Construction for High-Volume Operation At 750 pounds (340kg) net weight, this equipment provides substantial stability during operation - critical for high-volume commercial facilities where continuous daily use demands reliable, vibration-free performance. The substantial mass eliminates movement during aggressive bead breaking or difficult tire manipulation.

Complete Service Feature Set Includes assist arms for additional leverage on challenging tires, bead blast seater for forcing stubborn beads onto rim flanges, and 200mm aluminum bead breaker cylinder generating powerful separation force. The alloy steel jaw with 0.8-1.1mm carburization treatment and stainless steel mounting head with solution treatment protect wheel finishes during service.

Operational Simplicity and Longevity Pull-type pedal control system simplifies operation through foot-operated commands. High-quality lubricator provides reliable oil distribution while filtering compressed air, extending pneumatic system service life. Top-level motor with pure copper windings ensures rapid heat dissipation and extended operational lifespan under continuous commercial use.

Tire Changer T850 Specifications:

  • Max Wheel Diameter: 47"
  • Max Wheel Width: 15"
  • Outside Clamp: 14"-26"
  • Inside Clamp: 16"-28"
  • Power Supply: 110V 1PH
  • Motor Power: 2.0HP/1.5KW
  • Rotation Speed: 6.8r/min
  • Air Pressure: 0.8-1.0Mpa (116-145psi)
  • Net weight: 340KG / 750lbs

KT-T850 from Katool Special Features:

  • Alloy steel jaw with interface carburization treatment of 0.8-1.1mm depth, complete quenching process creates interior jaw resilience and exterior hardness, includes jaw cover for wheel protection
  • Mounting head fabricated from stainless steel with solution treatment and interface polishing, ergonomically designed shape with plastic cover for wheel safeguarding
  • Premium spade cover effectively prevents wheel damage
  • Pull-style pedal control mechanism simplifies tire service and maintenance procedures
  • High-grade motor with pure copper windings delivers enhanced power, accelerated heat dissipation, reduced failure rate, and extended service lifespan
  • Premium lubricator ensures dependable oil distribution and effectively filters compressed air, extending pneumatic system service life
  • North American configuration supports 110V/1ph/2.0HP motor for maximum power output and superior efficiency
  • Equipped with assist arms

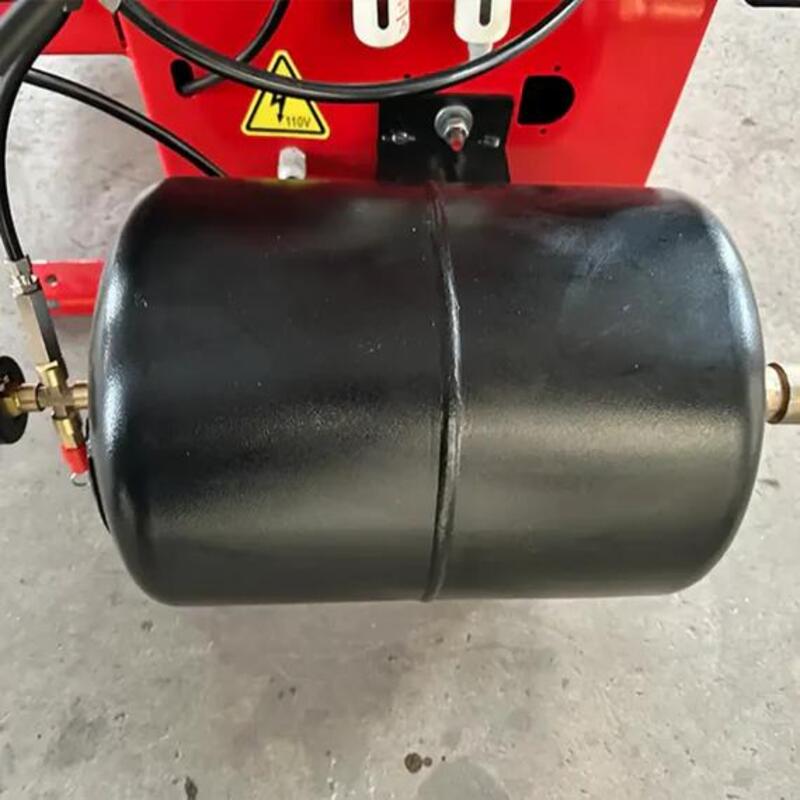

  • Bead blast seater
  • 200mm aluminum bead breaker cylinder
  • Katool Warranty: One-year (12 months) warranty covering all parts and product defects, free of charge to customers, on all equipment

 Katool KT-T850 Instruction Manual
