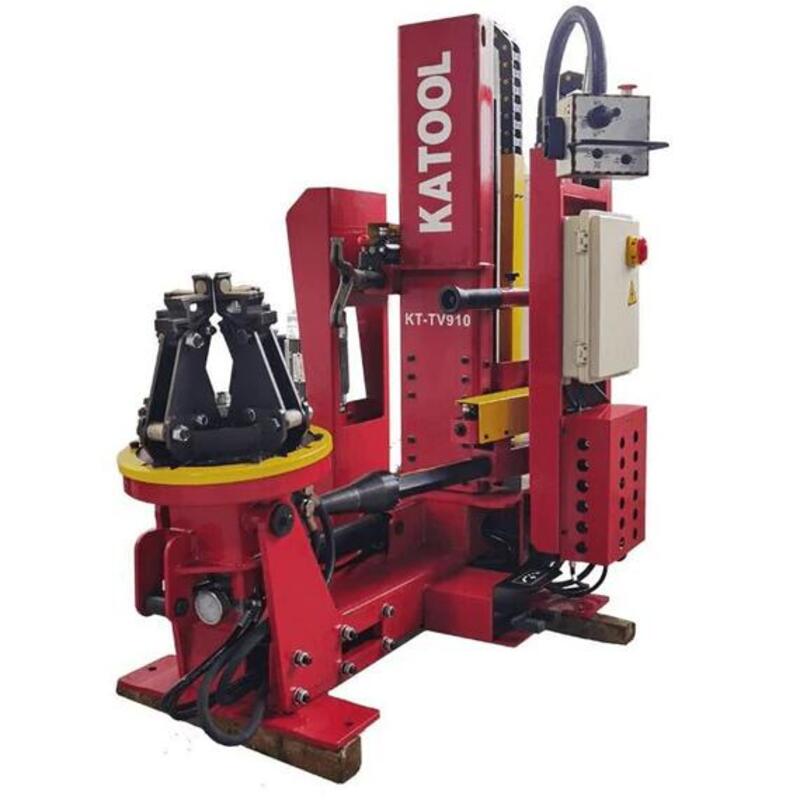

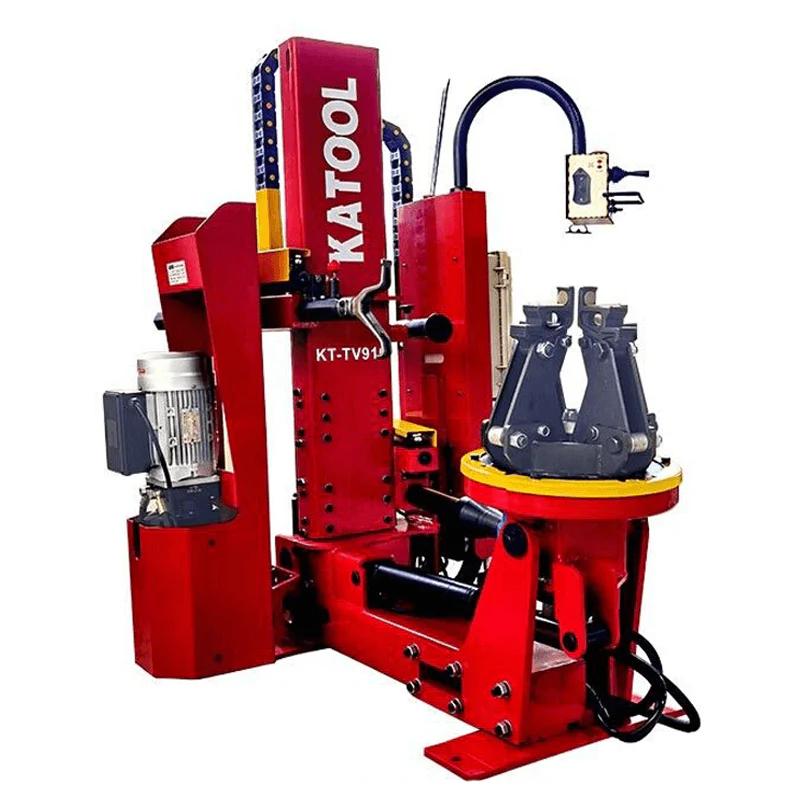

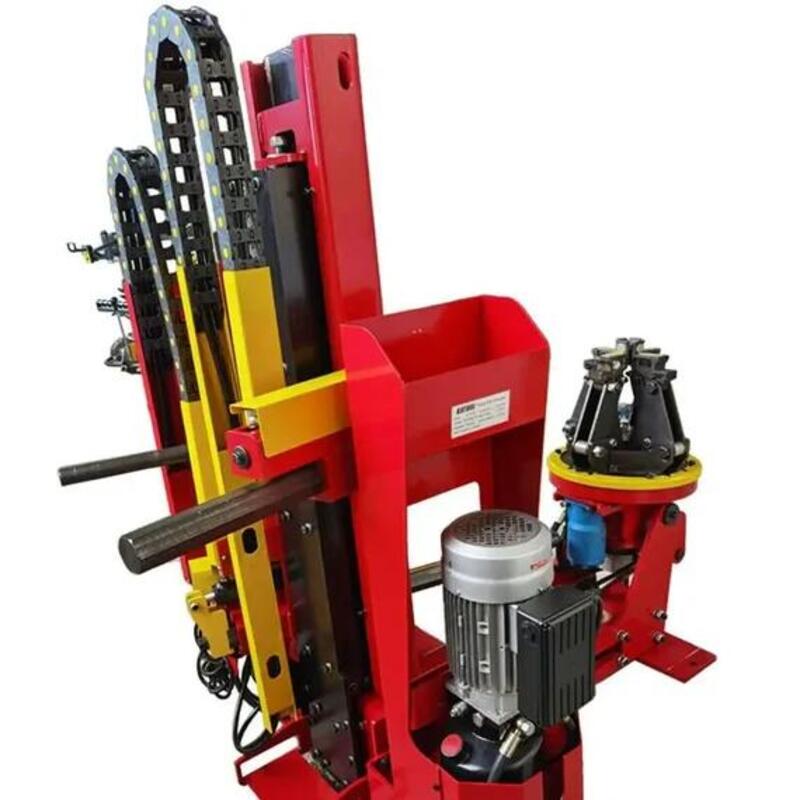

Katool TV910 Hydraulic Truck Tire Changer – Heavy-Duty Electro-Hydraulic Tire Changing Machine
Commercial Tire Service for Heavy Vehicles The Katool TV910 Hydraulic Truck Tire Changer addresses professional tire service requirements for truck, bus, tractor, and industrial vehicle applications through electro-hydraulic power delivery and robust structural design. Engineered to manage continuous intensive workloads, the TV910 delivers steady power output, precise operational control, and dependable long-term performance on large-diameter, high-weight wheel assemblies that exceed passenger vehicle specifications.
Exceptional Size Range and Adaptability Features 14" to 42" outer rim clamping capacity with accommodation for wheels up to 55 inches in diameter and 31 inches wide. This extensive dimensional range provides outstanding adaptability across diverse commercial tire applications - from medium-duty trucks through heavy industrial equipment requiring specialized tire service capability.
Powerful Hydraulic System Performance The 4.0 HP hydraulic motor paired with maximum working pressure ≤18,855 PSI and maximum hydraulic oil flow of 83.2 GPM guarantees efficient bead separation and productive tire mounting and demounting operations. This power delivery handles reinforced commercial tires, heavy-duty sidewall constructions, and aged beads with significant rim adhesion. Maximum tire weight capacity of 3,306 pounds accommodates fully-assembled commercial wheel units.
Operator-Focused Design and Safety Multifunctional controls enable safe operation from multiple positions around the machine. Ergonomically positioned foot pedals and helper controls reduce physical strain during extended service cycles. Low-voltage electrical system (operating on 220V single phase, 60 Hz) enhances operator safety compared to higher-voltage industrial equipment.
Low-Noise Industrial Operation Despite industrial-grade strength (1,256 lbs net weight, 1,388 lbs shipping weight), the equipment operates at noise levels <70 dB(A), establishing it as well-suited for active workshops and service facilities where acoustic comfort impacts technician wellbeing and communication during busy operational periods.
Tire Changer TV910 Specification:
- Outer Rim Capacity: 14" – 42"
- Maximum Wheel Diameter: 55"
- Maximum Wheel Width: 31"
- Maximum Working Pressure: ≤ 18,855 PSI
- Power Supply: 220V, Single Phase, 60 Hz
- Hydraulic Motor Output: 4.0 HP
- Maximum Hydraulic Oil Flow: 83.2 GPM
- Maximum Tire Weight Capacity: 3,306 lbs
- Net Weight: 1,256 lbs
- Shipping Weight: 1,388 lbs
- Shipping Dimensions: 51" L × 43" W × 72" H
- Noise Level: < 70 dB(A)
KT-TV910 From Katool Special Features:
- Electro-hydraulic configuration for truck, bus, tractor, and earth-moving vehicle tire applications
- Extensive external clamping span from 14" to 42"
- Multifunctional controls enable safe operation from various positions

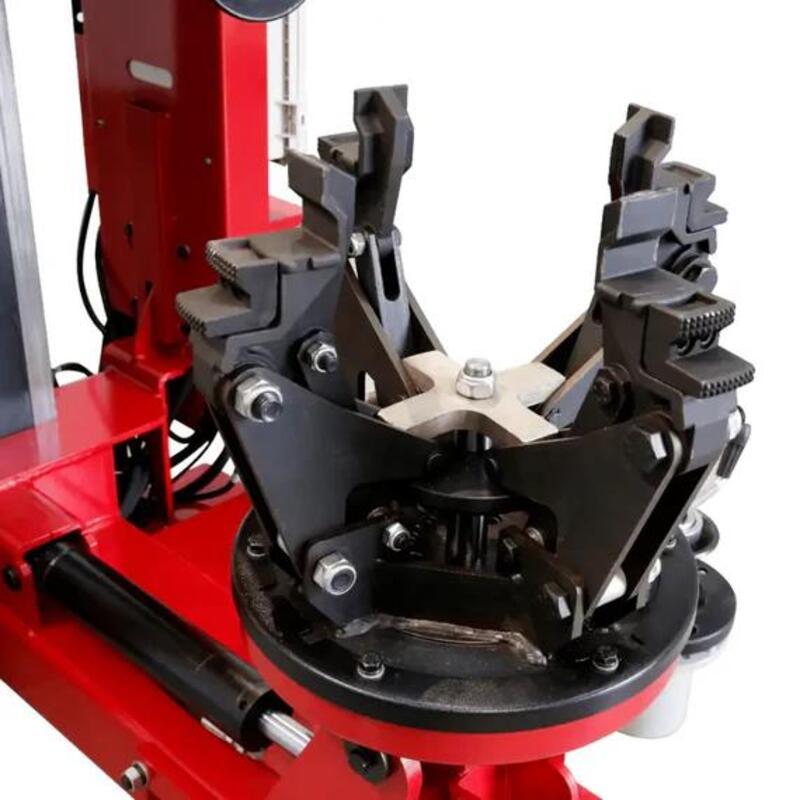

- Bead breaker disk and beak mechanism designed for powerful bead engagement
- Ergonomically positioned foot pedals and auxiliary controls
- Reduced-voltage electrical system for enhanced operator protection
- Illuminated display for optimal visibility in bright workspace conditions
- Includes cone sets for passenger, light truck, truck, and bus wheel applications
- Heavy-duty steel wing nut for secure wheel attachment

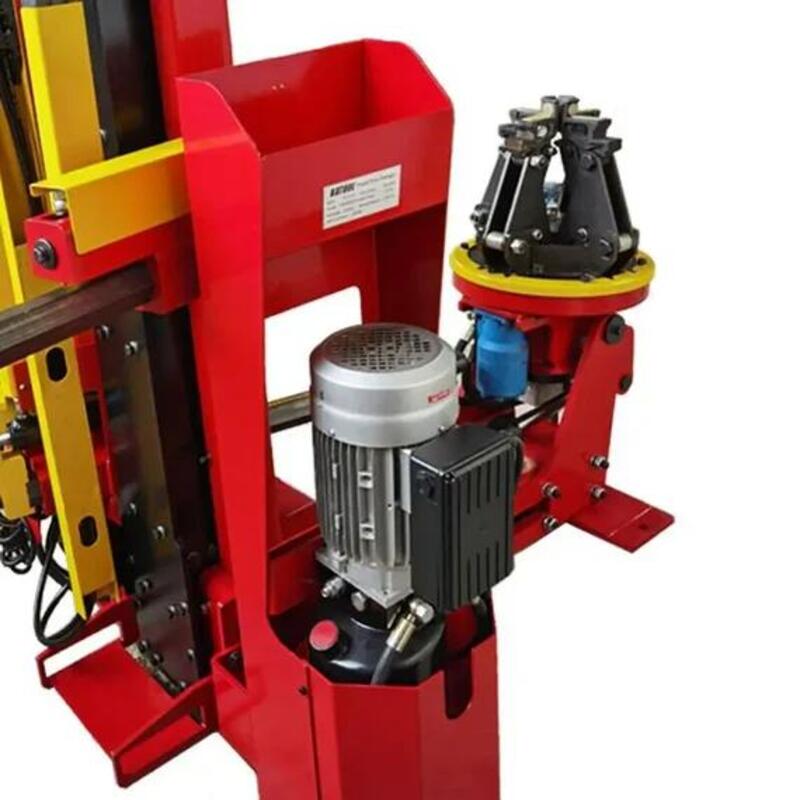

- 220V single-phase motor
- Protective safety hood
- Katool Warranty: One-year (12 months) warranty covering all parts and product defects, free of charge to customers, on all equipment
-
Pick-up location
- Bolingbrook, IL - 360 Veterans Pkwy, Unit 110, Bolingbrook, IL 60440
- Brookshire, TX - 2465 FM 359 South Rd, Building B Suite E, Brookshire, TX 77423
- Jersey City, NJ - 99 Caven Point Road Unit A, Jersey City, NJ 07305
- Pooler, GA - 88 Clyde Alexander Way, Pooler, GA 31322
- Walnut, CA - 19465 E Walnut Dr N, Walnut, CA 91789
- Please feel free to Contact us before purchasing. Please let us know which warehouse would be the preferred pickup location. We can help to check the availability.
