Katool Tire Changer Machine Katool KT-VT910 and Wheel Balancer KT-B795L Tires Repair

KT-TV910 Tire Changing Machine and KT-B795 Wheel Balancer Combo by Katool

The Katool KT-TV910 Tire Changer and KT-B795 Wheel Balancer Combo is a professional-caliber package designed explicitly for heavy-duty truck, bus, and industrial tire service operations. Engineered to process large and challenging wheels with precision and productivity, this combination provides reliable performance for commercial tire facilities, fleet maintenance centers, and industrial workshop environments.

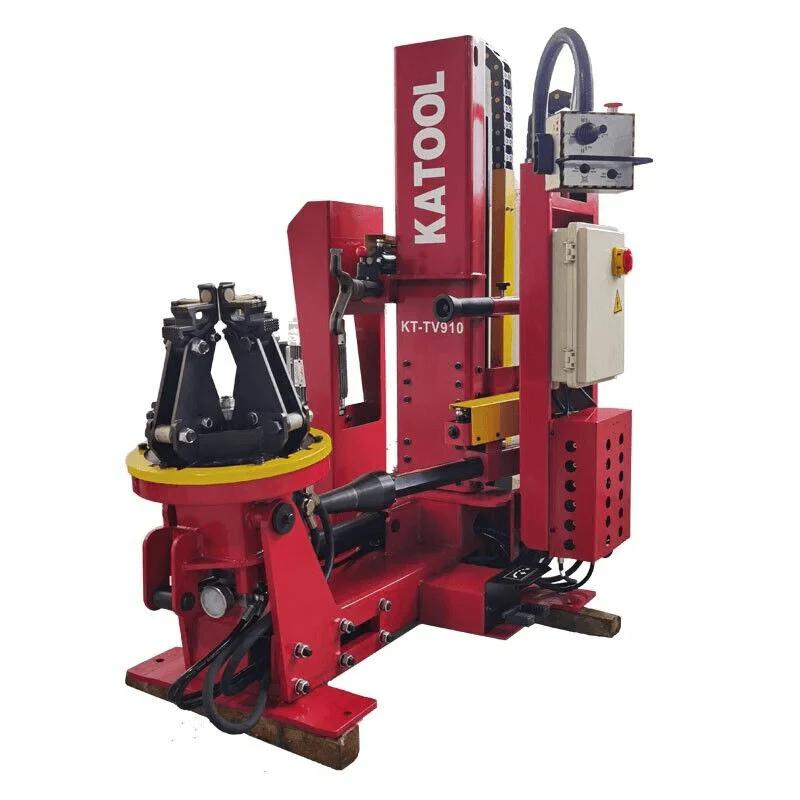

The KT-TV910 Hydraulic Tire Changer is constructed to handle a broad wheel size spectrum from 14" to 42", supporting wheels weighing up to 3,306 pounds. Featuring a robust 4.0 HP electro-hydraulic motor, the equipment delivers consistent, controlled functionality for mounting and demounting even the most demanding tires. Multifunctional controls, ergonomic pedal configuration, and reduced-voltage electrical components guarantee operator protection, accuracy, and operational simplicity throughout extended service periods.

Complementing the tire changer is the KT-B795 Wheel Balancer, engineered for precise balancing of heavy truck wheel assemblies. Incorporating laser-guided weight positioning, rapid 8-second measurement cycles, and minimal operating noise output, the balancer enhances workflow productivity while sustaining elevated accuracy standards. Combined, these machines constitute a comprehensive, high-capacity tire service package supported by Katool's 1-year warranty coverage.

KT-TV910 Tire Changer Specifications

• Outer Rim Capacity: 14" – 42"
• Maximum Wheel Diameter: 55"
• Maximum Wheel Width: 31"
• Maximum Working Pressure: ≤ 18,855 PSI
• Power Supply: 220V, Single Phase, 60 Hz

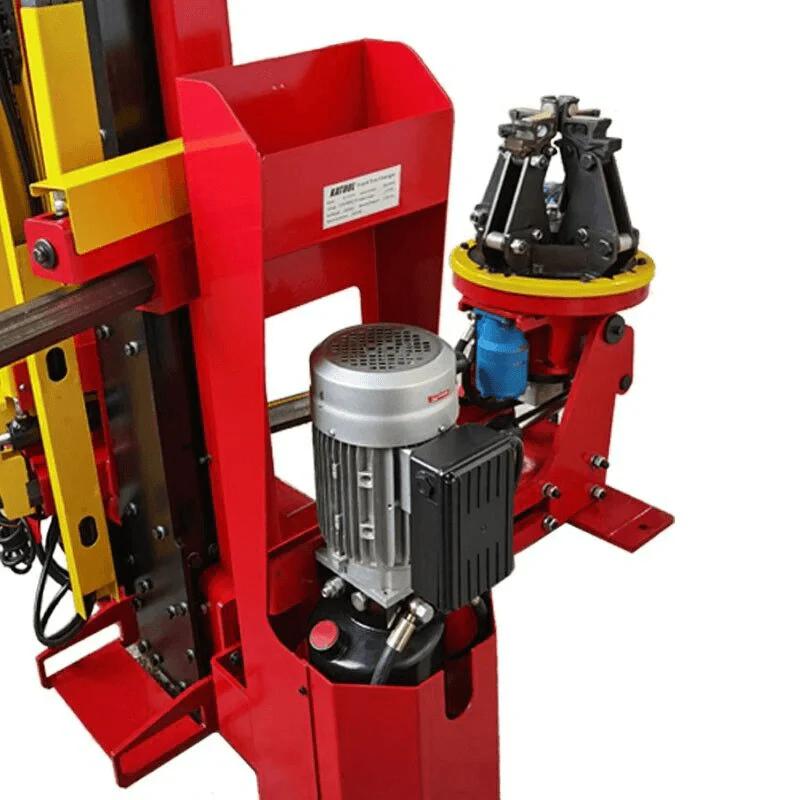

• Hydraulic Motor Output: 4.0 HP
• Maximum Hydraulic Oil Flow: 83.2 GPM
• Maximum Tire Weight Capacity: 3,306 lbs
• Net Weight: 1,256 lbs
• Shipping Weight: 1,388 lbs
• Shipping Dimensions: 51" L × 43" W × 72" H
• Noise Level: < 70 dB(A)

KT-B795L Wheel Balancer Specifications

• Steel Cycle Width: 1.5" – 20"
• Diameter of Steel Cycle: 13" – 24"
• Maximum Wheel Diameter: 51.18"
• Maximum Wheel Weight: 150 kg
• Operating Temperature Range: 0°C to -45°C
• Power Supply: 220V
• Operating Noise: < 65 dB
• Measurement Time: 8 seconds
• Occupied Floor Space: Approx. 98" – 118"
• Net Weight: 529 lbs

KT-TV910 + KT-B795 Combo Key Features

KT-TV910 Tire Changer

• Electro-hydraulic configuration for truck, bus, tractor, and earth-moving vehicle tire applications

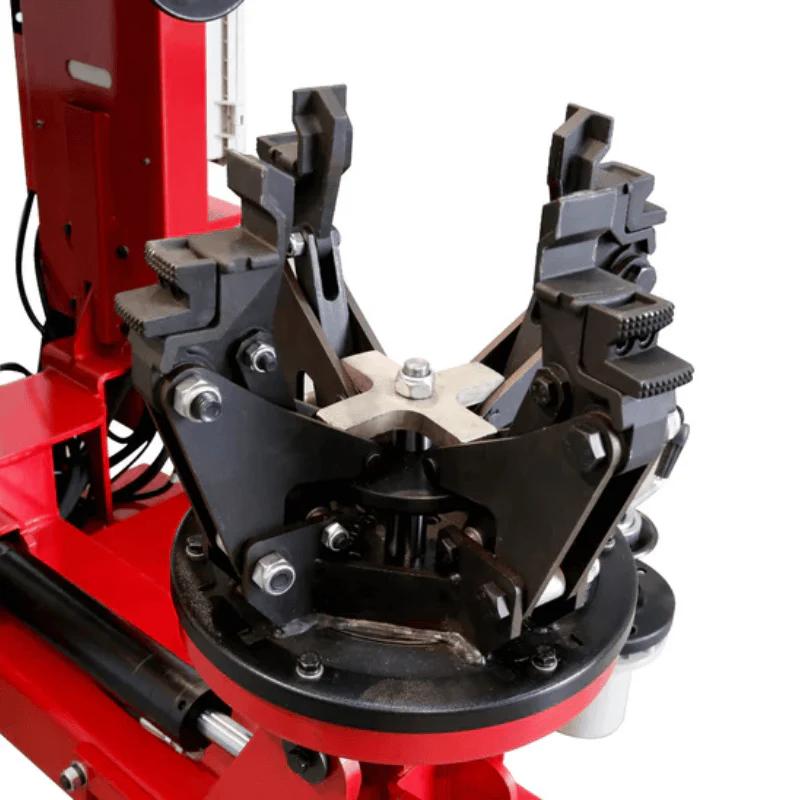

• Extensive external clamping span from 14" to 42"
• Multifunctional controls enable safe operation from various positions
• Bead breaker disk and beak mechanism designed for powerful bead engagement
• Ergonomically positioned foot pedals and auxiliary controls
• Reduced-voltage electrical system for enhanced operator protection
• Illuminated display for optimal visibility in bright workspace conditions
• Includes cone sets for passenger, light truck, truck, and bus wheel applications
• Heavy-duty steel wing nut for secure wheel attachment
• 220V single-phase motor
• Protective safety hood

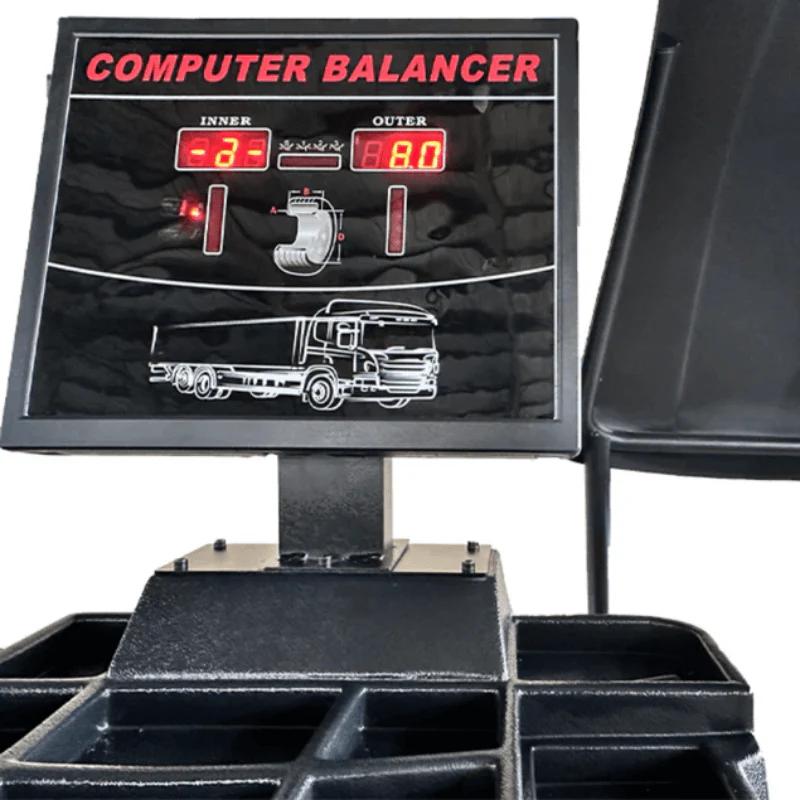

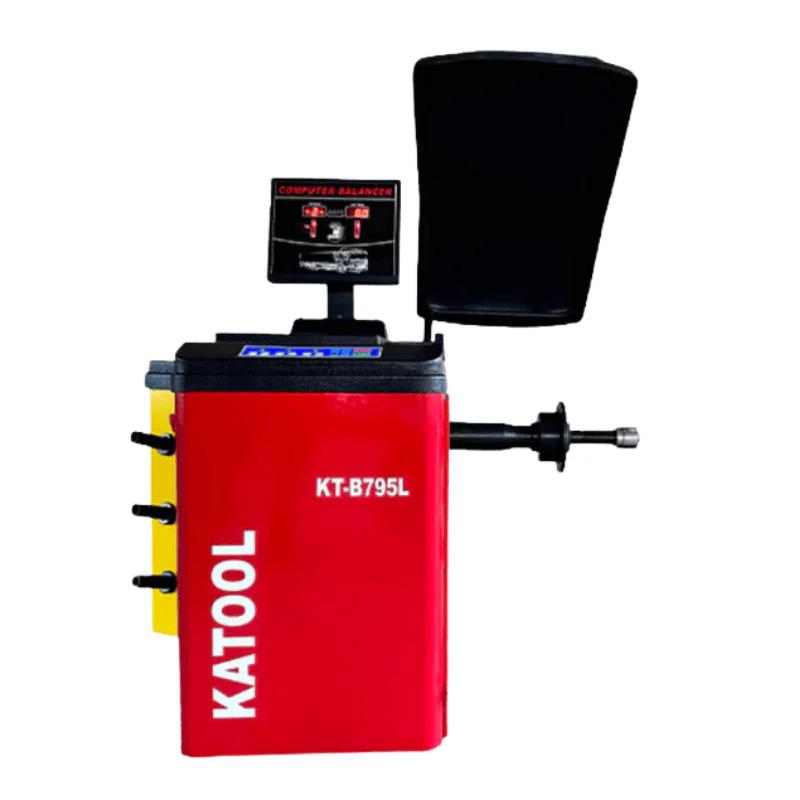

KT-B795 Wheel Balancer

• Engineered specifically for heavy-duty truck wheel balancing applications
• Laser positioning mechanism for accurate weight placement
• Rapid balancing cycle with 8-second measurement duration
• Low-noise operation with powerful motor performance
• Appropriate for high-volume tire facilities and service departments
• Updated model superseding the B790 (as of August 2024)

Katool Warranty

• One-Year (12-Month) Warranty
