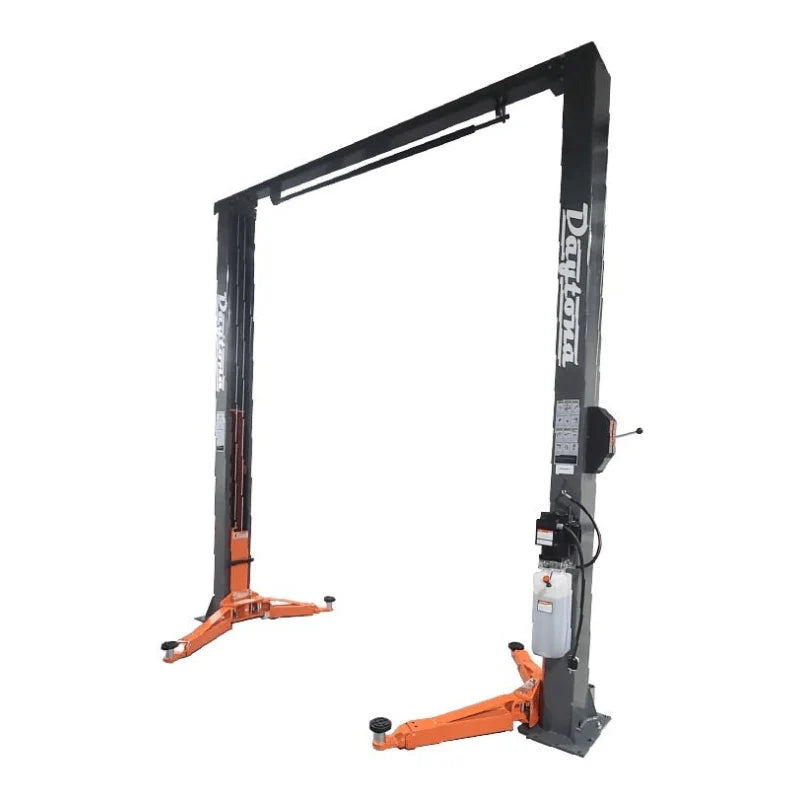

Daytona LTPO15 15,000lb 2-Post Overhead Lift

The Daytona LTPO15 is a 15,000 lb capacity overhead 2-post lift built for shops that work on trucks, fleet vehicles, and heavy-duty service jobs every day. Unlike lifts that lose rated capacity as the arms extend, the LTPO15 delivers its full 15,000 lb rating even at full arm extension — so you get real working capacity where you actually need it.

Dual direct-drive hydraulic cylinders provide smooth, synchronized lifting, while high-polymer polyethylene slide blocks cut friction inside the columns and extend the life of the lift. An automatic single-point lock release engages safety locks throughout the lifting range and allows controlled, one-handed lowering. Screw-up adapter pads, a height limit switch, and full rubber door guards round out the safety package and protect both the technician and the vehicle.

The LTPO15 ships with standard truck adapters and a 2-foot height extension kit included — no add-on purchases required. The height kit is a required part of assembly, ensuring correct cable and hose routing while giving taller trucks and vans the overhead clearance a heavy-duty bay demands.

If your shop services pickups, work trucks, or commercial fleets, the LTPO15 gives you commercial-grade capacity with the safety systems professional facilities expect.

LTPO15 Specification

• 15,000 lb lifting capacity

• Maximum lifting height: 74.8"

• Minimum pad height: 3.9" – 7.48"

• Overall height: 176.8"

• Overall width: 152.8"

• Overall floor width: 163.0"

• Width between columns: 133.9"

• Drive-thru width: 119.2"

• Column base width: 18.1"

• Column offset distance: 9.5"

• Overhead clearance: 6.5"

• Base plate thickness: 0.8"

• Arm reach range: 35.4" – 70.8"

• Arm sweep width: 23.6"

• Inner arm clearance: 13.5"

• Lower column height: 65.6"

• Power: 240V / 3HP / 13A / Single Phase / 60Hz

• Concrete Requirements: Minimum of 8"-3000psi

• Shipping Dimensions:

  • Lift: 155″ × 25″ × 40″ (2,700 lbs)

  • Pump: 31″ × 11″ × 12″ (60 lbs)

  • Height Kit: 26″ × 12″ × 18″ (200 lbs, included)

LTPO15 15,000lb 2-Post Overhead Lift Special Features

• 15,000 lb lifting capacity for heavy-duty vehicles

• Overhead 2-post design for increased floor clearance

• Automatic safety locks with single-point lock release

• Dual direct-drive hydraulic cylinders for balanced lifting

• High polymer polyethylene wear-resistant slide blocks

• Three-stage front and rear arms for flexible vehicle positioning

• Screw-up pads for precise lift adjustment

• Height limit switch for added overhead protection

• Full rubber door guards to prevent vehicle damage

• Durable powder coat finish for long-term use

• Standard truck adapters included

• 2 ft height extension kit included and required for assembly
